Husqvarna LGTH 2454 - 96043010700 (2010-05) Riding Tractor

Husqvarna LGTH 2454 - 96043010700 (2010-05) Riding Tractor

Model: LGTH 2454 - 96043010700 (2010-05)

Back To Assemblies

Save Part Not Listed?

Popular Parts

Popular Parts

Tank Fuel 4Gal HUS-532193499

Screw Smgml (2 2) HUS-817120616

Nut Hex Flange Toplock HUS-532184362

Screw Hexagon Head Tapping Srw HUS-596321701

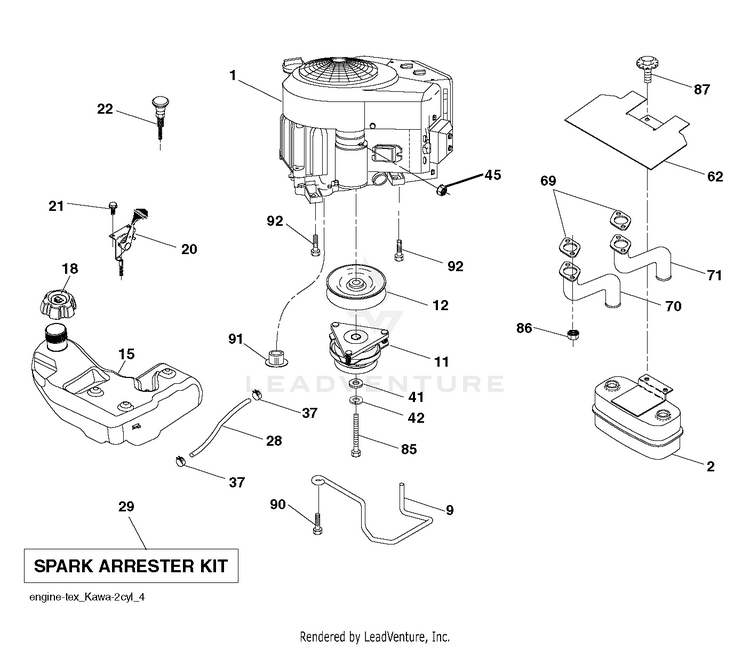

ENGINE

90

SCREW 3/8-16X1 HUS-817000616

20

CONTROL.THROTTLE.BLACK HUS-532175437

70

TUBE.EXHAUST.LH.FR961/FR730 HUS-583955601

45

NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901

15

TANK.FUEL.4GAL HUS-532193499

92

SCREW 3/8-16X1 HUS-817120616

28

HOSE 1/4" LOW PERMEATION FUEL HUS-587044864

11

CLUTCH MZ ZTR GT.48/54"1.125" HUS-532179335

18

CAP.ASSY.FUEL.3".N-EPA.GRY.498 HUS-584248702

86

NUT.HEX.FLANGE.TOPLOCK HUS-532184362

37

HOSE CLAMP HUS-532123487

91

BUSHING.1.375OD HUS-532187495

2

MUFFLER.TWIN.CYL.LOW.TONE HUS-532149723

87

BOLT.5/16-18UNCX1.W/SEMS.BLK HUS-532198239

21

Screws HUS-596321701

9

Keepers HUS-596501502

42

Washers HUS-596238901

62

SERVICE KIT HEAT SHIELD HUS-531154901

71

TUBE.EXHAUST.RH.FR961/FR730 HUS-583955701

85

BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601

69

GASKET HUS-532178151

41

WASHER HUS-532126197

12

PULLEY ENGINE HUS-532194343

29

KIT.SPARK ARRESTOR 794945 B&S HUS-532137180

22

CONTROL.CHOKE.ERGO.PUSH-IN.BLA HUS-532191596

1

KAWASAKI MODEL FR691V-AS06 HUS-000000000
