product name

Husqvarna LGT25K54 - 96048001200 (2010- 12) Riding Tractor

Model: LGT25K54 - 96048001200 (2010- 12)

Back To Assemblies

Save Part Not Listed?
product name

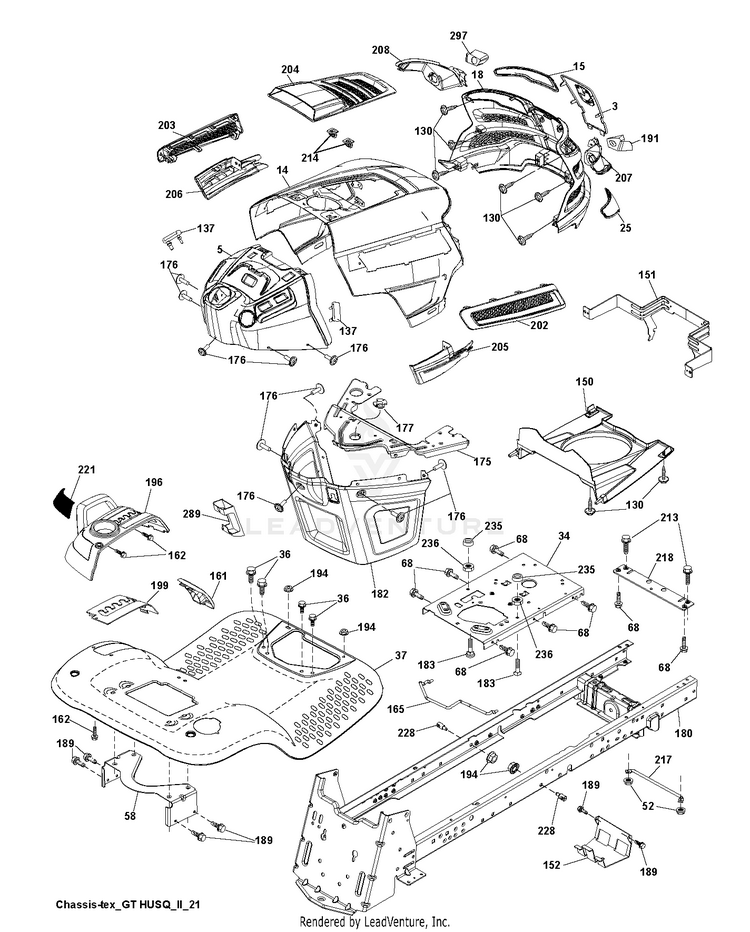

CHASSIS / FRAME

...
...
175
PLATE.PNT.CROSSMEMBER.HUSQ/PRE HUS-590607702
...
176
SCREW.#10-24X5/8.RN.QU HUS-532400776
...
207
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH RH HUS-587464801
...
236
NUT.CENTERLOCK.5/16- HUS-873930500
...
162
Screws HUS-596134101
...
177
BUSHING, STEERING HUS-532195227
...
18
Grilles HUS-597247201
...
289
PLUG.N/CRUISE.COMMON.YT/GT.BLK HUS-532403571
...
204
VENT.TOP.ASM.HUSQ.GT2 HUS-587485801
...
15
LENS.HEADLIGHT.LH.GTII.2011 LH HUS-532439733
...
218
X-PIECE.HOOD.STOP.NON/ HUS-532196395
...
206
SIDE.TRIM.LH.GT.HUSQ.II.GRAY LH HUS-532439729
...
52
Hardware HUS-596040501
...
34
PLATE.ENGINE.WELDED.CHASSIS HUS-580910801
...
25
LENS.HEADLIGHT.RH.GTII.2011 RH HUS-532443385
...
199
PLATE.DECK.LIFT.HUSQVARNA.GT HUS-532198259
...
68
Screws HUS-596030701
...
202
VENT.SIDE.RH.GT.HUSQ.II. RH HUS-532439728
...
152
SERVICE KIT SHIELD SHIELD.BROW HUS-531169901
...
151
SERVICE KIT PIVOT BRACKET BRAC HUS-531077401
...
150
AIR.DUCT.GTV.BLACK HUS-532439774
...
213
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
297
INSERT.REFLECTIVE.LH.HUSQ.GTII HUS-532437456
...
208
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH LH HUS-587464501
...
58
BRKT.SUPPORT.FNDR/TANK HUS-532194314
...
214
CLIP.RETAINER.TINNER. HUS-532199145
...
137
BUMPER DASH HUS-532407590
...
14
KIT.HOOD.ASM.HUSQ.GT.TEX.668 HUS-587483301
...
217
ROD.PIVOT.HOOD HUS-532409167
...
3
APPLIQUE.SUBASM.GT.HUSQ.II HUS-532444481
...
183
Screws HUS-595305701
...
130
Screws HUS-596321701
...
196
SUBASM.CONSOLE.HUSQ.GT.DECKLFT HUS-532439716
...
--
TRACTOR BUMPER KIT ALL MODELS HUS-531307007
...
5
DASH.UPPER.GT2.SM.PTO.M/CH.GRE HUS-532441051
...
191
INSERT.REFLECTIVE.RH.HUSQ.GTII HUS-532437455
...
221
REFLECTOR.LH.TEX GT HU LH HUS-532198909
...
189
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
161
FUEL WINDOW HUS-532401801
...
165
SUPPORT.TANK.REAR.W/TEX HUS-532196826
...
203
VENT.SIDE.LH.GT.HUSQ.II.498 LH HUS-532439727
...
182
DASH.LOWER.COMMON.12V.ADAPTOR HUS-532406859
...
228
STUD.W/"D"ANTI-ROTATION HUS-593824001
...
37
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ HUS-532441208
...
180
KITS.WELD.CHASSIS.195477X431 HUS-582033001
...
235
Spacers HUS-596564201
...
205
SIDE.TRIM.RH.GT.HUSQ.II RH HUS-532439730
...
36
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877
...
194
GSPW Nuts HUS-596135701
