Husqvarna LGT2554 - 96045001700 (2009-04) Riding Tractor

Model: LGT2554 - 96045001700 (2009-04)

Back To Assemblies

Save Part Not Listed?
product name

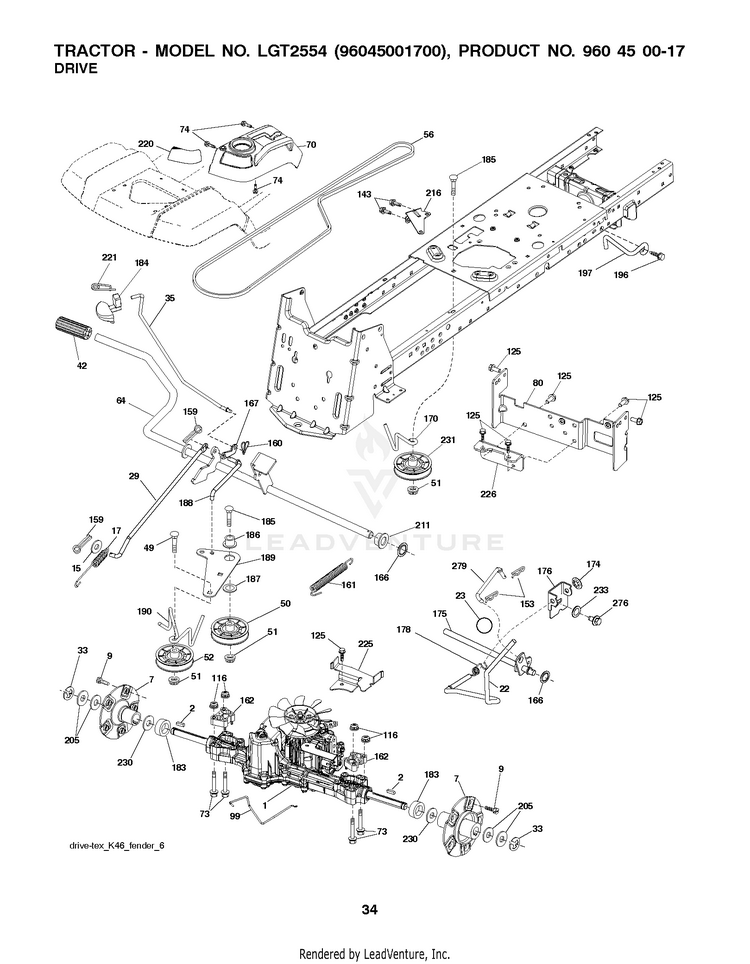

DRIVE

...
...
2
KEY.SQUARE.187X2.500 HUS-532186211
...
42
PAD, FOOT PEDAL HUS-510089501
...
211
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
197
BRKT.ANIT-ROTATION.CLUTCH HUS-532199769
...
35
Rods HUS-583864502
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
187
Washers HUS-596135501
...
178
SPRING.SHIFT.GT2006 HUS-532197456
...
186
SPACER.RETAINER HUS-532194321
...
225
SERVICE KIT KEEPER BELT KEEPER HUS-531149001
...
160
GSPW Retainers HUS-596029401
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
116
GSPW Nuts HUS-596135701
...
174
NUT.PUSH.500.2006 HUS-532197289
...
279
LINK.SHIFT.T/A.K46.FEND.TX HUS-532406207
...
159
Pins HUS-596029501
...
33
E-RING LT HUS-812000001
...
166
NUT.PUSH.625 HUS-532429164
...
185
BOLT HUS-872110622
...
162
SPACER.TRANSAXLE.1" HUS-580457401
...
183
SPACER.SPLIT.800X.350 HUS-532400424
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
29
ROD.BRAKE.K46 HUS-532403806
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
230
WASHER.HARDENED HUS-532188967
...
56
Belts HUS-592855201
...
233
Washers HUS-596135201
...
1
TRANSAXLE(K46AW)22"FS. " Transaxle, TUFFTORQ K46 AW " HUS-532448354
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
226
SERVICE KIT BRKT.MOUNT.TORQUE. HUS-529846701
...
176
ARM.CLEVIS.ROD.SHIFT HUS-532196214
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
161
SPRING, RETURN LT HUS-532105709
...
70
SUBASM.CONSOLE.HUSQ.GT.HYDRO HUS-532439660
...
175
SHAFT ASM SHIFT HUS-532406208
...
7
SERVICE.KIT HUB ASM HUB.ASM.WH HUS-531170101
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
99
ROD.SPRING.BYPASS.K46.TEX.GT HUS-532415743
...
49
Bolts HUS-596136201
...
153
RETAINER M HUS-532004497
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
80
SERVICE KIT TORQUE STRAP BLACK HUS-531064101
...
196
SCREW 3/8-16X1 HUS-817000616
...
22
ROD.SHIFT.FENDER.STGT. HUS-532197329
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
9
Bolts HUS-596218701
...
23
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
74
Screws HUS-596134101
...
143
Screws HUS-596030701
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
205
WASHER HUS-532121748
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
220
REFLECTOR.RH.TEX GT RH HUS-532198908
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
73
BOLT.HEX.FLNG.5/16-18X3.75 HUS-583613301
...
17
SPRING.BRAKE.K46.GREEN HUS-532413678
...
276
Bolts HUS-596238601
