Husqvarna LGT 2654 - 96045004000 (2012-05) Riding Tractor

Model: LGT 2654 - 96045004000 (2012-05)

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
79
Screws HUS-596134202
...
2
MUFFLER.ASM.TWIN.MNTG.BRACKET HUS-589818702
...
84
SCREW.3/8-16 HUS-817060620
...
28
HOSE 1/4" LOW PERMEATION FUEL HUS-587044864
...
42
Washers HUS-596238901
...
29
KIT.SPARK ARRESTOR 794945 B&S HUS-532137180
...
9
Keepers HUS-596501502
...
37
HOSE CLAMP HUS-532123487
...
90
SCREW 3/8-16X1 HUS-817000616
...
45
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
71
EXHAUST.TUBE.RH.B&S.TWIN.INTEK RH HUS-581881001
...
21
Screws HUS-596321701
...
20
CONTROL.TH/CK.COBRA.B&S.TWN.BK HUS-532423502
...
18
CAP.ASM.FL.RITCH.3"E10.SYM.498 HUS-532439208
...
81
TUBE, DRAIN OIL ASM. HUS-532148456
...
85
BOLT.HEX.7/16-20X3.75.GR5.RED HUS-501606601
...
62
SERVICE KIT HEAT SHIELD HUS-531154901
...
82
VALUE.OIL.DRAIN HUS-532428287
...
70
EXHAUST.TUBE.LH.BS/TWIN LH HUS-581881101
...
15
FUEL TANK, 4GAL, 2.25"NECK, 20 HUS-529998404
...
91
BUSHING.1.375OD HUS-532187495
...
69
GASKET.MUFFLER HUS-532165391
...
41
WASHER HUS-532126197
...
1
ENGINE B&S MODEL NO. 44P777-4448-G5 (445979) HUS-000000000
...
11
CLUTCH MZ ZTR GT.48/54"1.125" HUS-532179335
...
12
PULLEY ENGINE HUS-532194343
...
87
BOLT.5/16-18UNCX3/4 W/SEMS.BLK HUS-532171877

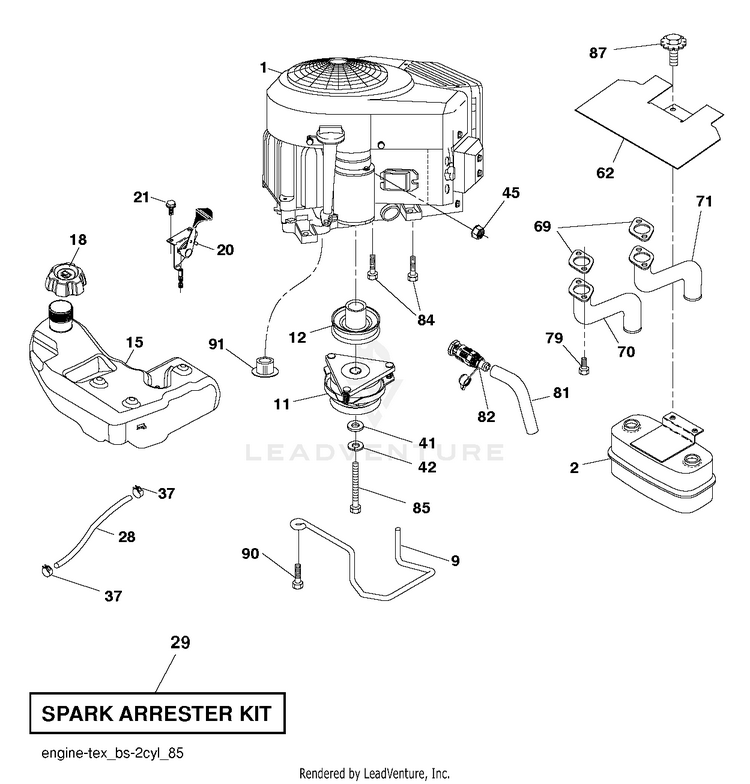

Schematic Image Zoomed
