Husqvarna LGT 2554 (96045001501) (2009-05) Ride Mower

Model: LGT 2554 (96045001501) (2009-05)

Back To Assemblies

Save Part Not Listed?
product name

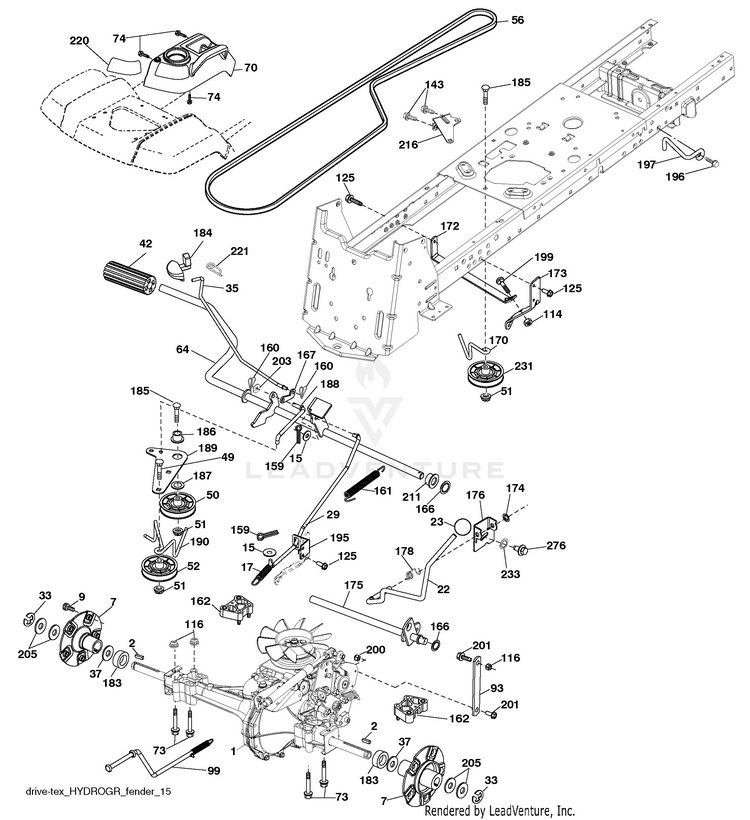

Drive

...
...
2
KEY.SQUARE.187X2.500 HUS-532186211
...
7
SERVICE.KIT HUB ASM HUB.ASM.WH HUS-531170101
...
9
Bolts HUS-596218701
...
15
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
17
SPRING.BRAKE.HG3000/3500 HUS-532197296
...
22
ROD.SHIFT.FENDER.STGT. HUS-532197329
...
23
KNOB.DELUXE.(PISTOL.GRIP).BLAC HUS-532140845
...
29
ROD.BRAKE.HG-0510 HUS-532197659
...
33
E-RING LT HUS-812000001
...
35
Rods HUS-583864502
...
37
WASHER HUS-532121749
...
42
PAD, FOOT PEDAL HUS-510089501
...
49
Bolts HUS-596136201
...
50
IDLER.FLAT.910.OFFSET HUS-532194327
...
51
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
52
IDLER.V-GROOVE.910.OFFSET HUS-532194326
...
56
V-BELT. HUS-532140218
...
64
SHAFT.ASM.PEDAL.BRAKE. HUS-532196200
...
70
SUBASM.CONSOLE.HUSQ.GT.HYDRO HUS-532439660
...
73
BOLT.HEX.FLNG.5/16-18X3.75 HUS-583613301
...
74
Screws HUS-596134101
...
93
LINK.SHIFT.T/A.0610.TE HUS-532198254
...
99
ROD.BYPASS.HYDRO.0510/0610.GT HUS-532406642
...
114
Hardware HUS-596040501
...
116
GSPW Nuts HUS-596135701
...
125
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
143
Screws HUS-596030701
...
159
Pins HUS-596029501
...
160
GSPW Retainers HUS-596029401
...
161
SPRING, RETURN LT HUS-532105709
...
162
SPACER.TRANSAXLE.1" HUS-580457401
...
166
NUT.PUSH.625 HUS-532429164
...
167
SERVICE KIT LATCH LATCH.BRAKE. HUS-531152901
...
170
KEEPER.CENTER SPAN.1.688 HUS-532413430
...
171
Bolts HUS-596136301
...
172
Strap Torque LH HUS-532404175
...
173
STRAP TORQUE RH HUS-532197655
...
174
NUT.PUSH.500.2006 HUS-532197289
...
175
SHAFT.ASM.SHFT.HG0510/ HUS-532197653
...
176
ARM.CLEVIS.ROD.SHIFT HUS-532196214
...
178
SPRING.SHIFT.GT2006 HUS-532197456
...
183
SPACER.SPLIT.800X.350 HUS-532400424
...
184
HANDLE.PARKING.BRAKE.H (BLK) HUS-532196439
...
185
BOLT HUS-872110622
...
186
SPACER.RETAINER HUS-532194321
...
187
Washers HUS-596135501
...
188
LINK.CLUTCH.GROUND DRIVE.LONG HUS-582217001
...
189
SERVICE KIT BELLCRANK HUS-531169001
...
190
KEEPER.BELLCRANK.DRIVE HUS-532194318
...
195
BRKT.ROD.BRAKE.18/20/2 HUS-532198012
...
196
SCREW 3/8-16X1 HUS-817000616
...
197
BRKT.ANIT-ROTATION.CLUTCH HUS-532199769
...
199
Bolts HUS-595901501
...
200
NUT.CENTERLOCK.5/16- HUS-873930500
...
201
BOLT.5/16-18X.910 ST CLR ZINC HUS-596231101
...
203
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
205
WASHER HUS-532121748
...
211
BUSHING.SHAFT.BRAKE.HAND HUS-532196212
...
216
BRACKET.PULLEY.IDLER.W/TEX HUS-532196131
...
220
REFLECTOR.RH.TEX GT HUS-532198908
...
221
RETAINER.SPRING.CLIP.H HUS-532403187
...
231
IDLER.V-GROOVE.1.688.OFFSET HUS-532407287
...
233
Washers HUS-596135201
