Husqvarna LE 389 (2006-04) Edger

Model: LE 389 (2006-04)

Back To Assemblies

Save Part Not Listed?
product name

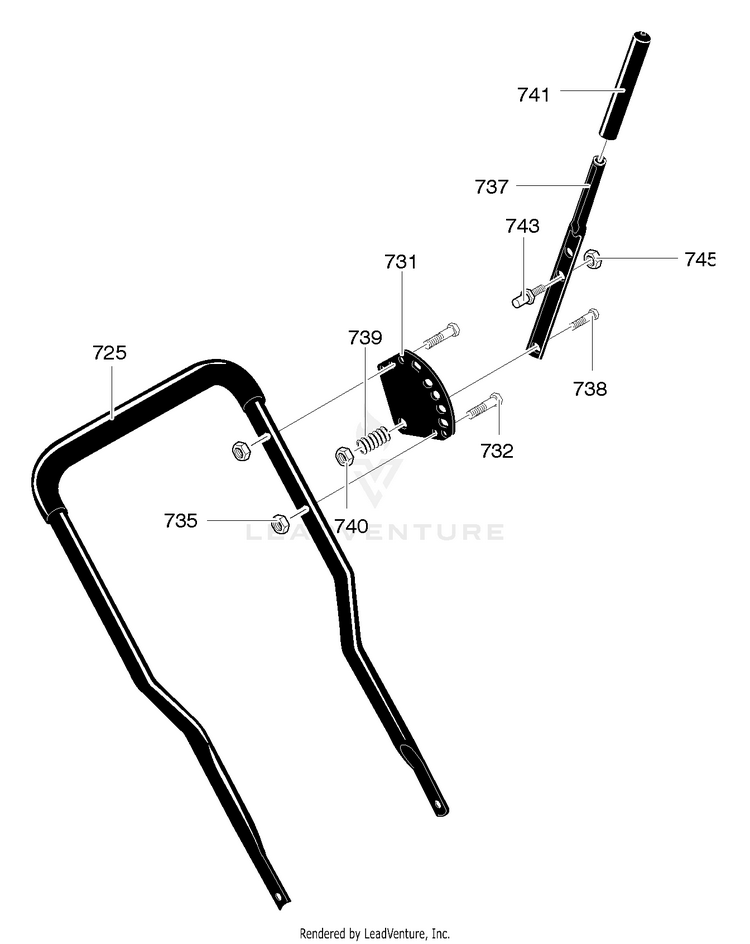

Clutch / Drive Lever Assembly

...
...
725
UPPER HANDLE & FOAM HUS-601002198
...
731
Selector Plate HUS-601002222
...
732
SCREW, 1/4-20X1.25 HHC HUS-601001857
...
735
RP NUT HUS-601002318
...
737
HANDLE, DEPTH ADJUST HUS-601002223
...
738
SCREW, 5/16-18X1.25 HUS-601001984
...
739
SPRING HUS-601000101
...
740
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
741
Grip, Hand HUS-601002248
...
743
STUD HUS-601002225
...
745
NUT 3/8-16 HUS-601002407
