product name

Husqvarna LE 389 (2006-04) Edger

Model: LE 389 (2006-04)

Back To Assemblies

Save Part Not Listed?
product name

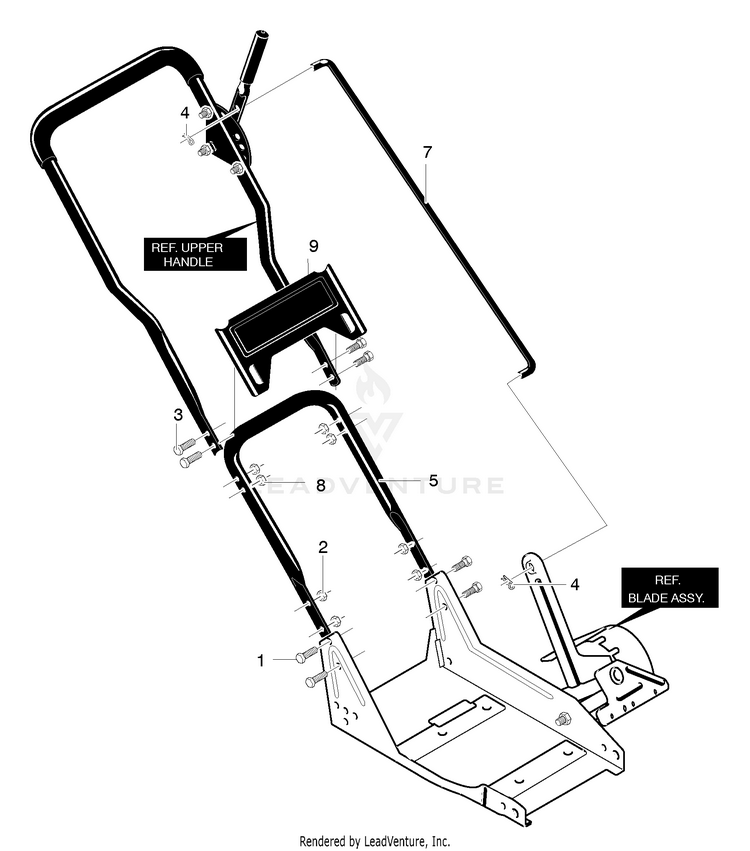

Handle Assembly

...
...
1
Screw, 5/16-18x.63 HUS-601002227
...
2
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
3
BOLT HUS-601001294
...
4
PIN, HAIR .072 DIAX1.13LG HUS-601000523
...
5
LOWER HANDLE HUS-601002228
...
7
CONTROL ROD HUS-601002247
...
8
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
9
HANDLE PANEL ASSEMBLY HUS-601002226
Schematic Image Zoomed
