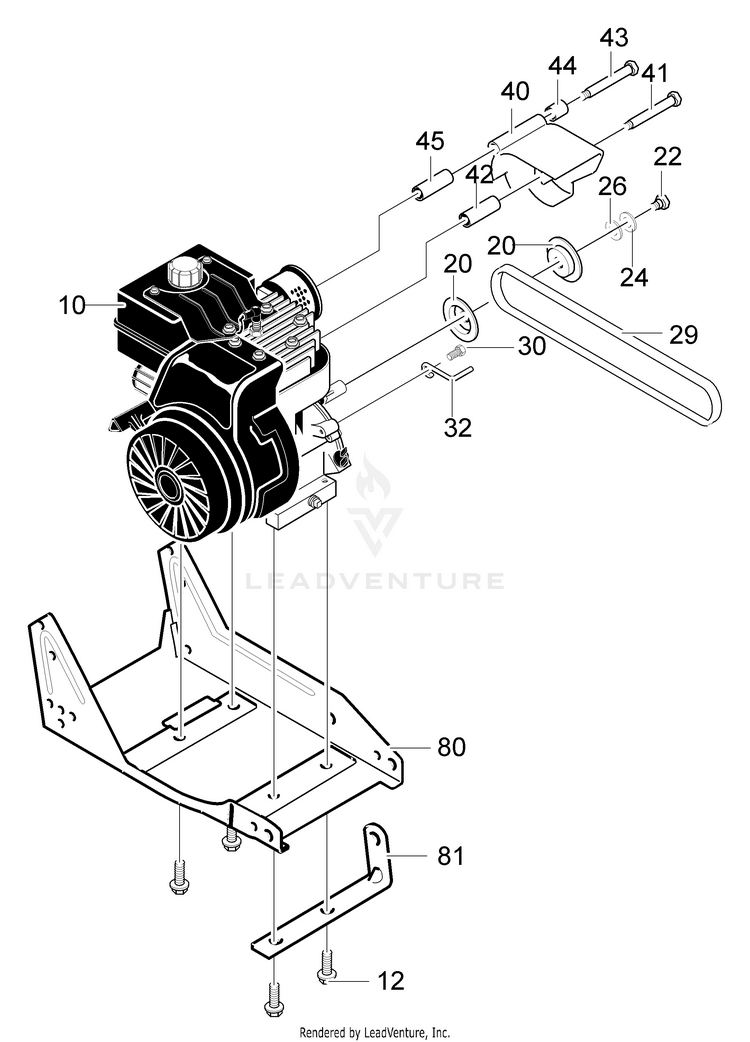

Husqvarna LE 389 (2003-01) Edger

Model: LE 389 (2003-01)

Back To Assemblies

Save Part Not Listed?
product name

Engine Related

...
...
12
SCREW SELF-TAP 3/8-16X1 IN HUS-601000835
...
20
PULLEY, HALF V3L HUS-601002203
...
22
SCREW HUS-601001327
...
24
WASHER, HVSPTLK .328X.60X HUS-601000023
...
26
WASHER, FLAT .333X .87X. HUS-601000547
...
29
BELT, V4L 32.60LG HUS-601000509
...
30
SCREW HUS-601001433
...
32
BELT GUIDE HUS-601000580
...
40
COVER, ENGINE PULLEY HUS-601002204
...
41
Screw, 5/16-24x3.00 HUS-601000080
...
42
Spacer, Sleeve HUS-601002205
...
43
SCREW HUS-601002206
...
44
Spacer HUS-601002207
...
45
Spacer, Sleeve HUS-601002205
...
80
FRAME, ASSY EDGER HUS-601002208
...
81
Strap HUS-601002209
...
xx
Instruction Manual HUS-601002469
