Husqvarna LE 389 (1996-11) Edger

Model: LE 389 (1996-11)

Back To Assemblies

Save Part Not Listed?
product name

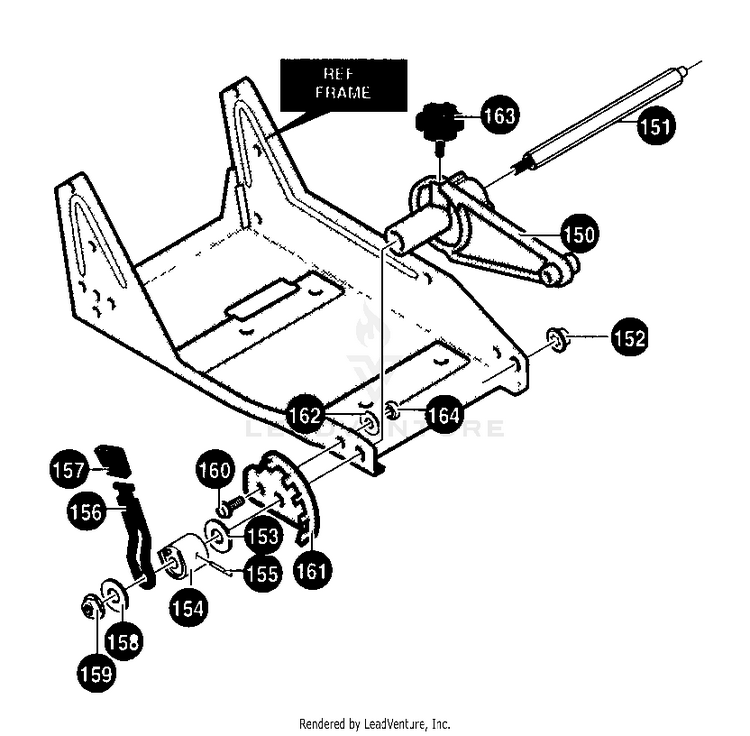

Front Wheel Bracket Assembly

...
...
150
ARM, FRONT WHEEL HUS-601002233
...
151
ROD, FRONT MOUNT CURB HOPPER HUS-601002234
...
152
PUSHNUT, WASHER HUS-601002235
...
153
WASHER, PLASTIC HUS-601002236
...
154
SPACER, HEIGHT ADJUST HUS-601002237
...
155
PIN, SPRING HUS-601002238
...
156
LEVER, HEIGHT ADJUST HUS-601002239
...
157
KNOB, RECTANGLE HUS-601002240
...
158
WASHER, FLAT .515X1.38X. HUS-601000094
...
159
NUT, 3/8-16 HUS-601002241
...
160
Screw, 5/16-18 x .63 HUS-601002227
...
161
PLATE, HEIGHT ADJ QUAD HUS-601002242
...
162
WASHER, FLAT .344X .69X. HUS-601000019
...
163
KNOB, W/5/16-18 STUD HUS-601002243
...
164
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
