Husqvarna LE 389 (1996-11) Edger

Model: LE 389 (1996-11)

Back To Assemblies

Save Part Not Listed?
product name

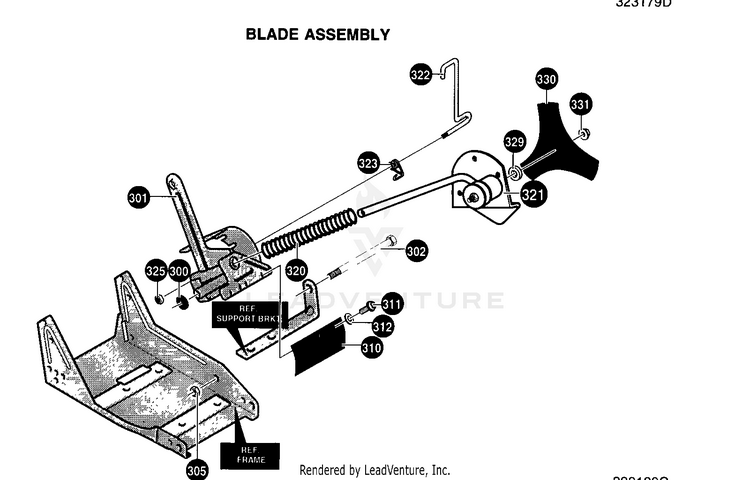

Blade Assembly

...
...
300
WASHER, FLAT .531X1.06X. HUS-601000021
...
301
QUILL SUPPT ASSY LE-389 HUS-601002196
...
302
SHOULDER BOLT 3/8-16 HUS-601002216
...
305
NUT 3/8-16 HUS-601002407
...
310
DEFLECTOR, RUBBER HUS-601002217
...
311
SCREW HUS-601002218
...
312
FLATWASHER HUS-601002213
...
320
SPRING HUS-601002314
...
321
QUILL ASSEMBLY, LRG SUPPT HUS-601002197
...
322
INDEX LEVER HUS-601002244
...
323
TORSION SPRING HUS-601002245
...
325
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
329
WASHER, FLAT .515X1.38X. HUS-601000094
...
330
Blade Edger HUS-601002246
...
331
NUT, 1/2-20 WDFL HUS-601000552
