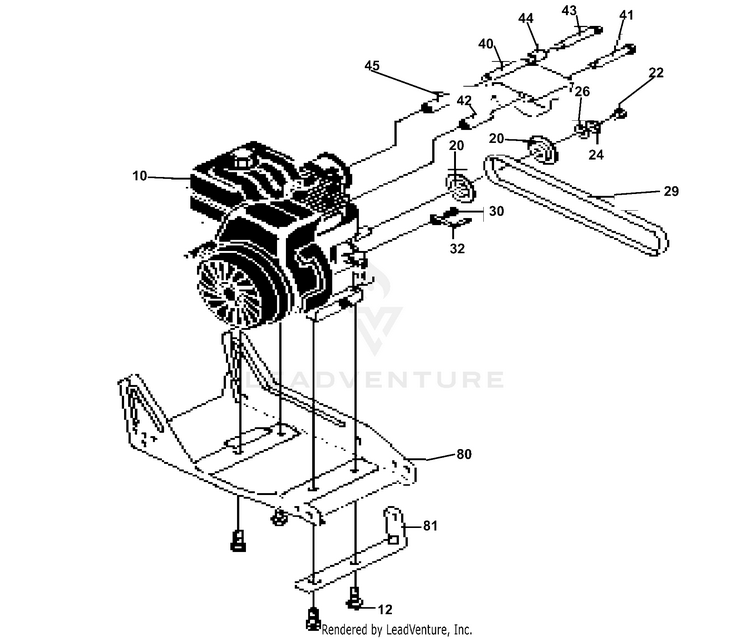

Husqvarna LE 359 (1998-02) Edger

Model: LE 359 (1998-02)

Back To Assemblies

Save Part Not Listed?
product name

Engine Assy.

...
...
10
See Engine Manual HUS-ENGINE 3.5HP
...
12
Screw, 3/8-16 x 1.00 HUS-601000778
...
20
PULLEY, HALF V3L HUS-601002203
...
22
SCREW HUS-601001327
...
24
WASHER, HVSPTLK .328X.60X HUS-601000023
...
26
WASHER, FLAT .333X .87X. HUS-601000547
...
29
BELT, V4L 32.60LG HUS-601000509
...
30
SCREW & WASHER ASSY HUS-601001965
...
32
BELT GUIDE HUS-601000580
...
40
COVER, ENGINE PULLEY HUS-601002204
...
41
Screw, 5/16-24x3.00 HUS-601000080
...
42
Spacer, Sleeve .335x.431x2.50 HUS-601002205
...
43
SCREW HUS-601002206
...
44
Spacer, .322ID .562 OD HUS-601002207
...
45
Spacer, Sleeve .335x.431x2.50 HUS-601002205
...
80
FRAME, ASSY EDGER HUS-601002208
...
81
Strap HUS-601002209
...
xx
Owner's Manual HUS-601002452
