Husqvarna LE 309 (1996-01) Edger

Model: LE 309 (1996-01)

Back To Assemblies

Save Part Not Listed?

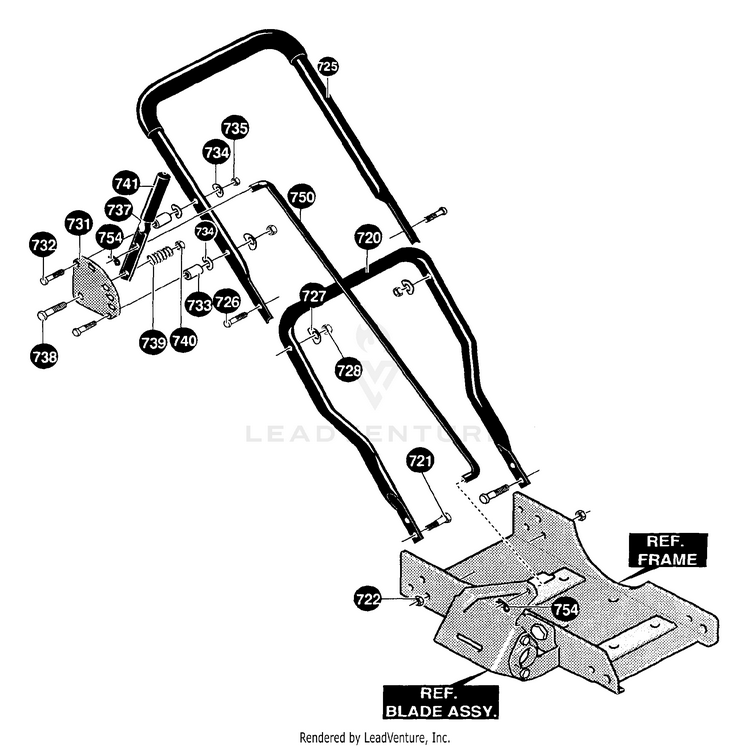

Handle Assembly

720

HANDLE, LOWER 7/8 HUS-601000498

721

SCREW, 5/16-18X .75 HHC HUS-601000073

722

NUT, 5/16-18 REGHEXCTRLK HUS-601000059

725

UPPER HANDLE HUS-601000497

726

SCREW 5/16X18 HUS-601001312

727

WASHER,.343ID X 1.OX.062 FORM HUS-601002312

728

NUT, 5/16-18 REGHEXCTRLK HUS-601000059

731

PLATE NLA HUS-601000746

732

SCREW HUS-601001267

733

SPACER HUS-601000608

734

WASHER,.343ID X 1.OX.062 FORM HUS-601002312

735

RP NUT HUS-601002318

737

PF HANDLE, DEPTH ADJUST HUS-601000705

738

SCREW HUS-601000030

739

SPRING HUS-601000101

740

NUT, 5/16-18 REGHEXCTRLK HUS-601000059

741

GRIP,HAND .75X4.87 BLACK HUS-601000087

750

DEPTH ROD HUS-601000621

754

PIN, HAIR .072 DIAX1.13LG HUS-601000523
