Husqvarna LE 309 (1996-01) Edger

Model: LE 309 (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

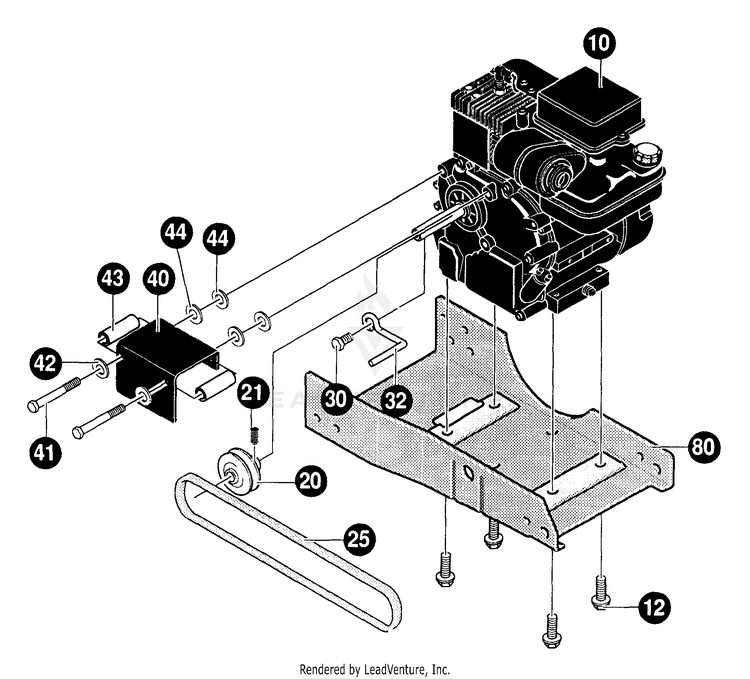

Engine Assembly

...
...
12
SCREW, 3/8-16X1.00 HXWAHD HUS-601000559
...
20
ENGINE PULLEY HUS-601000510
...
21
SCREW, 5/16-18X .25 ALHSE HUS-601000002
...
25
BELT, V4L 32.60LG HUS-601000509
...
30
SCREW, 5/16-24X .63 HHC HUS-601000078
...
32
BELT GUIDE HUS-601000580
...
40
COVER HUS-601000366
...
41
SCREW, 5/16-24X3.00 IN. HUS-601000080
...
42
WASHER, FLAT .344X .69X. HUS-601000019
...
43
SPACER HUS-601000590
...
44
WASHER, FLAT .344X .69X. HUS-601000019
...
80
FRAME HUS-601000364
...
xx
SCREW, 1/4-20X1.25 HHC (NOT SHOWN) HUS-601001857
Schematic Image Zoomed
