Husqvarna LE 309 (1996-01) Edger

Model: LE 309 (1996-01)

Back To Assemblies

Save Part Not Listed?
product name

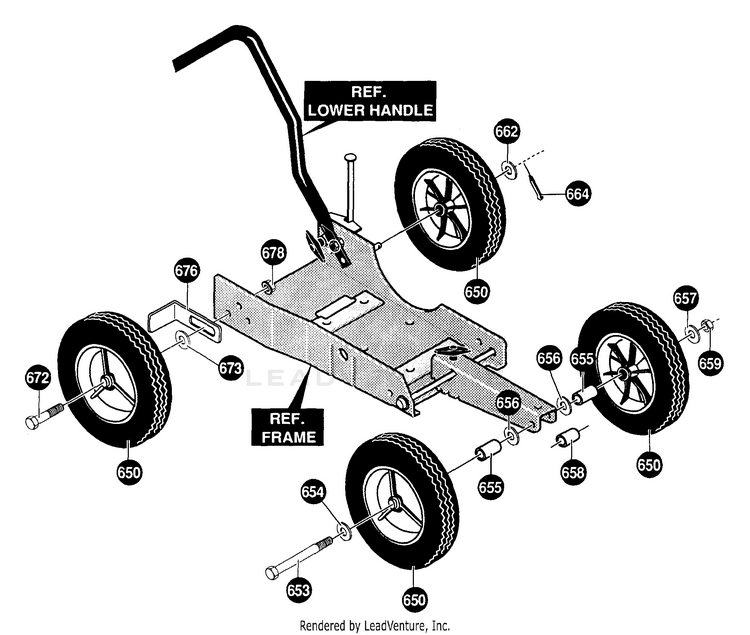

Tires W/Scraper Assembly

...
...
650
TIRE AND WHEEL ASSY HUS-601001319
...
653
SCREW, 5/16-18X4.50 HHC HUS-601000086
...
654
WASHER, FLAT .344X .69X. HUS-601000019
...
655
SPACER HUS-601000587
...
657
WASHER, FLAT .344X .69X. HUS-601000019
...
658
SPACER HUS-601000588
...
659
NUT, 5/16-18 REGHEXCTRLK HUS-601000059
...
662
WASHER, FLAT .504X .75X. HUS-601000109
...
664
PIN, COTTER .090/.086X.75 HUS-601000025
...
672
BOLT, .500X1.390 HHSH 3/8 HUS-601000095
...
676
SCRAPER HUS-601001587
...
678
NUT, 3/8-16 HWDFL WHIZ-LO HUS-601000542
