Husqvarna LDX Hedge Trimmer (2007-07) Trimmer Accessory

Model: LDX Hedge Trimmer (2007-07)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

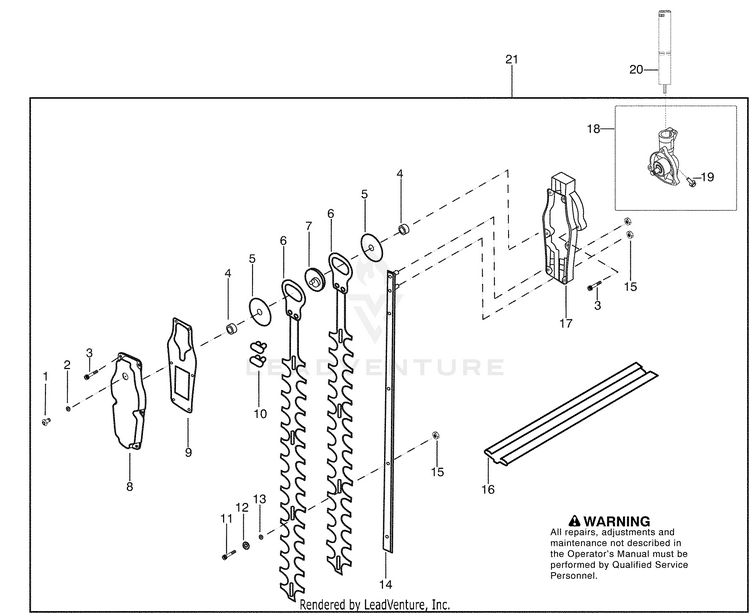

Repair Parts

...
...
1.
PLUG HUS-530016423
...
2.
O-RING HUS-545145448
...
3.
SOCKET SCREW FLANGE KAAZ HUS-545145422
...
4.
Bushing HUS-545145529
...
5.
FIXING PLATE HUS-545145530
...
6.
BLADE HUS-545145535
...
7.
GEAR HUS-545145441
...
8.
COVER HUS-545145534
...
9.
PACKING KAAZ HUS-545145434
...
10.
Felt Packing HUS-545145532
...
11.
BOLT HUS-545145537
...
12.
Conical Spring Washer (M6) HUS-545145538
...
13.
CUTTER WASHER KAAZ HUS-545145436
...
14.
BLADE GUIDE HUS-545145536
...
15.
U-HEXAGON NUT FLANGE KAAZ HUS-545145429
...
16.
BLADE HUS-530057997
...
17.
CRANKCASE HUS-545145528
...
18.
GEAR BOX ( Incl. 19) HUS-545145526
...
19.
BOLT HUS-545145527
...
20.
ASSY TUBE HEDGE TRIMMER SVC HUS-545152102
...
21.
GEAR BOX ASSY Incl. 1,2,3,4,5,6,7,8,9,10,11,12,13,14, 15,16,17,18,19) HUS-545081851
...
xx
MANUAL OPERATORS SCAN Not Shown HUS-545146936
...
xx
MANUAL OPERATORS EURO Not Shown HUS-545146935
...
xx
MANUAL OPERATORS EURO 3 Not Shown HUS-545146934
...
xx
MANUAL OPERATORS EURO 4 Not Shown HUS-545146938
...
xx
MANUAL OPERATORS TURKISH Not Shown HUS-545146937

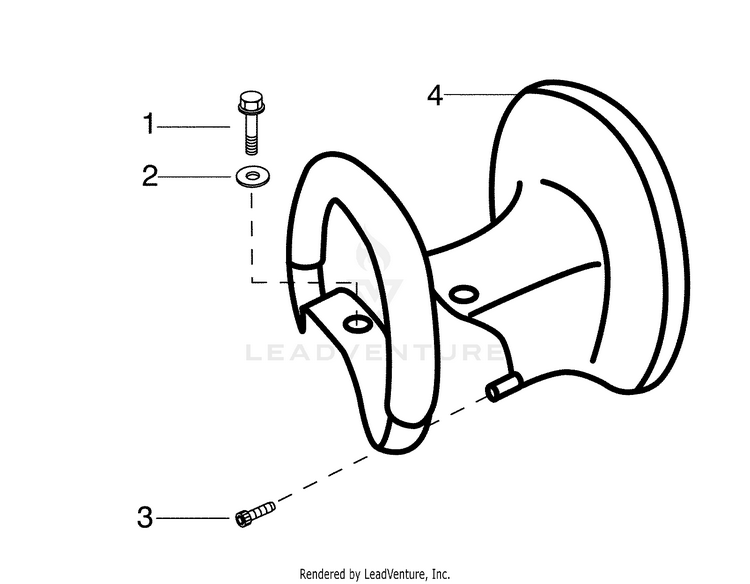

Repair Parts

...
...
1.
SCREW M6X50 HUS-725238051
...
2.
WASHER - M6 HUS-734115201
...
3.
SCREW HUS-503216816
...
4.
ASSY HAND GUARD (Incl. warning decal) HUS-544118906
...
xx
LABEL WARNING Not Shown HUS-544044102
...
xx
HEX WRENCH 5/32 Not Shown HUS-530031159
