Husqvarna LC20VH50A (1995) Tractor

Model: LC20VH50A (1995)

Back To Assemblies

Save Part Not Listed?
product name

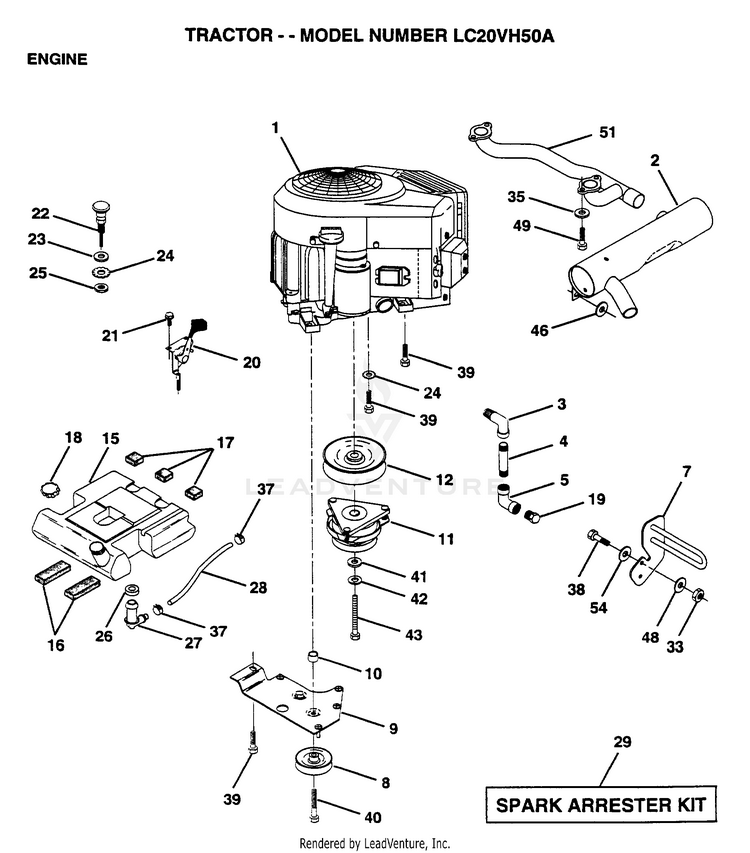

ENGINE

...
...
1
ENGINE B&S HUS-351777
...
2
SUB= 161062 HUS-144636
...
3
STREET ELBOW LT HUS-13240300
...
4
PIPE NIPPLE HUS-13280328
...
5
ELBOW HUS-13200300
...
7
SUB= 151396 HUS-143599
...
8
SUB= 139123 HUS-121361X
...
9
SUB= 150828 HUS-145109
...
10
BUSHING. HUS-105432X
...
11
SUB= 142600 HUS-137140
...
12
PULLEY.ENGINE.VGT HUS-136907
...
15
SUB= 151346 HUS-141069
...
16
PAD IDLER TI HUS-109227X
...
17
PAD-SPACER LT HUS-106082X
...
18
CAP ASM FUEL HUS-140527
...
19
PLUG T HUS-13290300
...
20
CONTROL.THT.FLG. HUS-143443
...
21
SCREW LT HUS-17720410
...
22
CHOKE CONTROL HUS-132784
...
23
WASHER HUS-19132616
...
24
LOCKWASHER HUS-11050600
...
25
SUB= 7810H HUS-73610600
...
26
BUSHING OUTLET T HUS-3645J
...
27
STEM.TANK.FUEL HUS-139277
...
28
SUB= 8542R HUS-7834R
...
29
SPARK ARREST KIT HUS-132920
...
33
NUT HUS-73800600
...
35
LOCKWASHER HUS-10040500
...
37
HOSE CLAMP HUS-123487X
...
38
"BOLT,HEX" HUS-74780624
...
39
SCREW LT HUS-17490624
...
40
SCREW.3/8-16X3.25 HUS-17490652
...
41
WASHER HUS-126197X
...
42
LOCKWASHER HUS-10040700
...
43
SUB= 150280 HUS-71170768
...
46
WASHER HYT HUS-19131616
...
48
WASHER T HUS-19132007
...
49
BOLT.HD.SOCKET. HUS-M710708020
...
51
PIPE.EXHAUST.B&S HUS-140805
...
54
WASHER HUS-19131414
