Husqvarna LC 356VP - 967988801 (2019-11) Walk Behind Mower

Model: LC 356VP - 967988801 (2019-11)

Save Part Not Listed?
product name

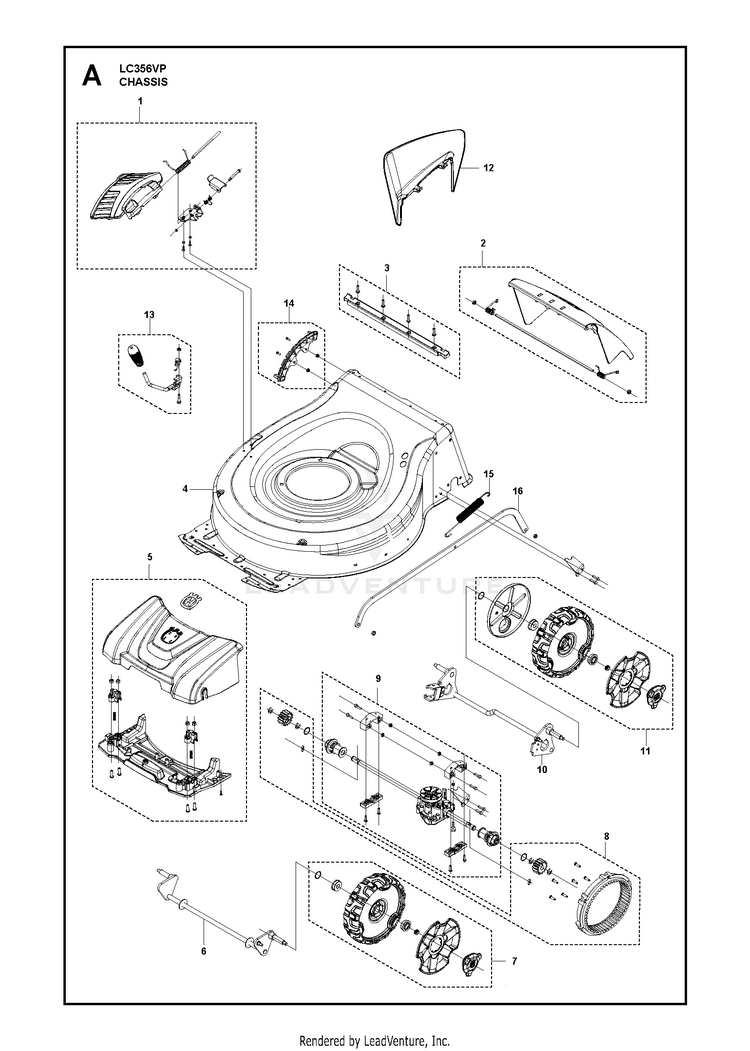

CHASSIS

...
...
3
NEEDS DESCRIPTION SEALING PLATE HUS-598825701
...
7
Wheels FRONT WHEEL HUS-598512901
...
6
NEEDS DESCRIPTION WHEEL AXLE HUS-598818801
...
16
NEEDS DESCRIPTION connecting rod HUS-599139201
...
2
NEEDS DESCRIPTION REAR DOOR HUS-598684118
...
10
NEEDS DESCRIPTION WHEEL AXLE. Use in models after S/N 20204900021. HUS-534207001
...
15
NEEDS DESCRIPTION tension spring of connecting rod HUS-599138901
...
1
NEEDS DESCRIPTION SIDE DISCHARGE PLATE HUS-598684112
...
5
NEEDS DESCRIPTION FRONT COVER HUS-598684123
...
4
NEEDS DESCRIPTION chassis HUS-598861101
...
8
NEEDS DESCRIPTION WHEEL DRIVE HUS-598684117
...
9
NEEDS DESCRIPTION REAR TRANSMISSION. See SB: B1210019A-07. HUS-598684116
...
10
NEEDS DESCRIPTION WHEEL AXLE. Use in models before S/N 20204900021. HUS-598684110
...
14
NEEDS DESCRIPTION HEIGHT ADJUSTMENT PLATE HUS-599139001
...
13
NEEDS DESCRIPTION HEIGHT ADJUSTMENT HANDLE HUS-599139101
...
9
NEEDS DESCRIPTION REAR TRANSMISSION. Use in models after S/N 20204900021. HUS-534204901
...
12
NEEDS DESCRIPTION SIDE DISCHARGE PROTECTIVE COVER HUS-598597301
...
11
NEEDS DESCRIPTION FRONT WHEEL HUS-598684103

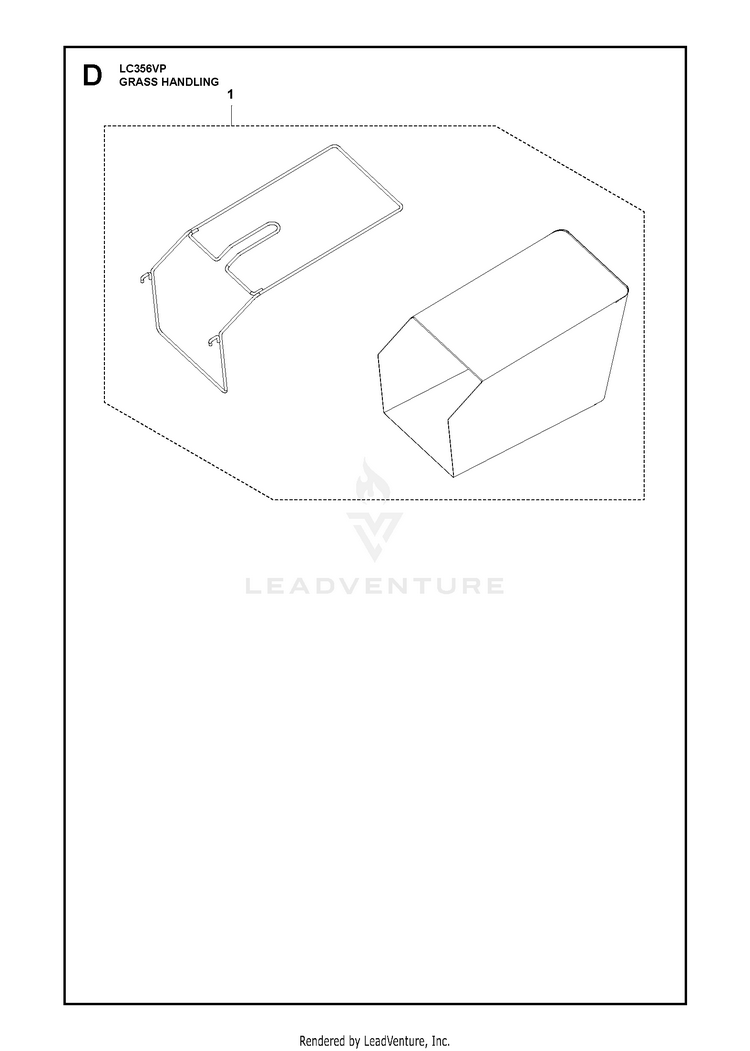

COLLECTOR

...
...
1
NEEDS DESCRIPTION GRASS BAG KIT HUS-598684120

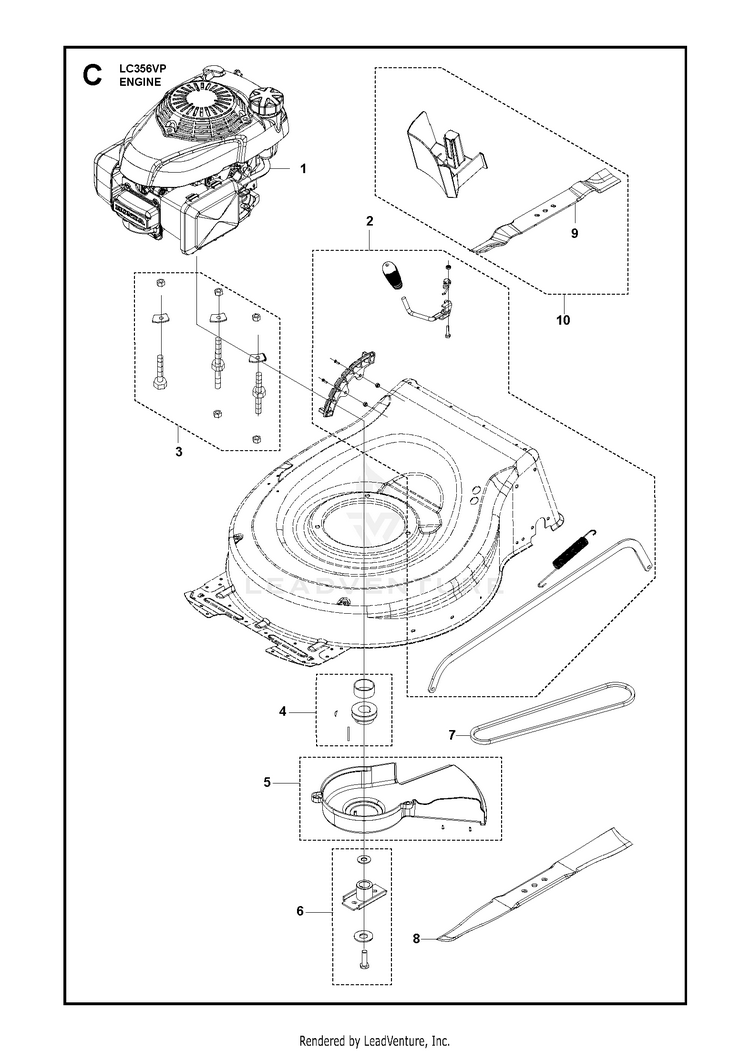

ENGINE

...
...
3
NEEDS DESCRIPTION BOLTS AND NUTS HUS-598742601
...
8
NEEDS DESCRIPTION Collect blade HUS-598562701
...
1
HONDA ENGINE GCV170H-S3AL. Contanct your local Honda Distributor HUS-000000000
...
5
NEEDS DESCRIPTION BELT COVER HUS-598684106
...
6
NEEDS DESCRIPTION BLADE ADAPTER HUS-598684104
...
10
NEEDS DESCRIPTION MULCHING KIT HUS-598018101
...
4
NEEDS DESCRIPTION DRIVE PULLEY HUS-598684102
...
7
NEEDS DESCRIPTION belt HUS-598861001
...
9
NEEDS DESCRIPTION Mulch blade HUS-598563601
...
2
NEEDS DESCRIPTION HEIGHT ADJUSTER HUS-598684108

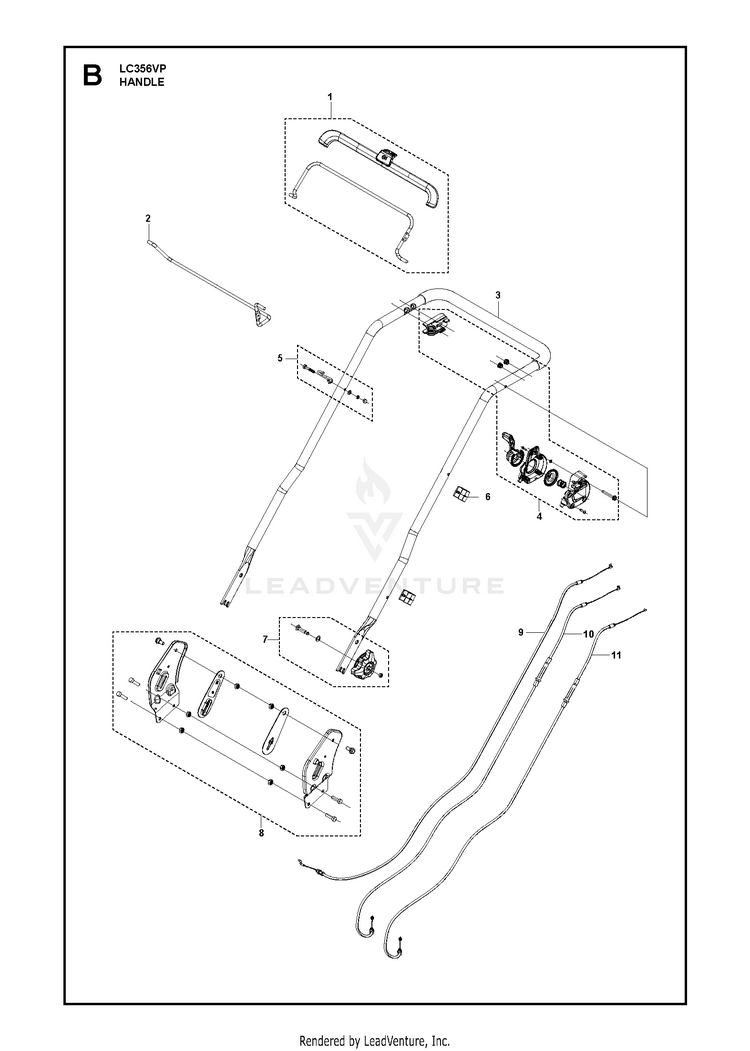

HANDLE

...
...
11
NEEDS DESCRIPTION Variable speed cable assembly. Use in models before S/N 20204900021. HUS-598861701
...
10
NEEDS DESCRIPTION DRIVE CABLE ASSY. Use in models before S/N 20204900021. HUS-598861801
...
11
NEEDS DESCRIPTION Variable speed cable assembly. Use in models after S/N 20204900021. HUS-534207501
...
9
NEEDS DESCRIPTION choke cable assy HUS-598861502
...
7
NEEDS DESCRIPTION KNOB HUS-598684125
...
8
NEEDS DESCRIPTION HANDLE BRACKET HUS-598684113
...
5
NEEDS DESCRIPTION HANDLE HUS-598825601
...
10
NEEDS DESCRIPTION DRIVE CABLE ASSY. Use in models after S/N 20204900021. HUS-534207401
...
3
NEEDS DESCRIPTION HANDLE AND SHEATH HUS-598721901
...
4
NEEDS DESCRIPTION BAIL ARM HUS-598748201
...
2
NEEDS DESCRIPTION drive rod HUS-598861901
...
1
NEEDS DESCRIPTION BAIL ARM HUS-598818201
...
6
NEEDS DESCRIPTION clip HUS-598961501
