Husqvarna LC 356V - 96141029103 (2015-10) Walk Behind Mower

Model: LC 356V - 96141029103 (2015-10)

Save Part Not Listed?
product name

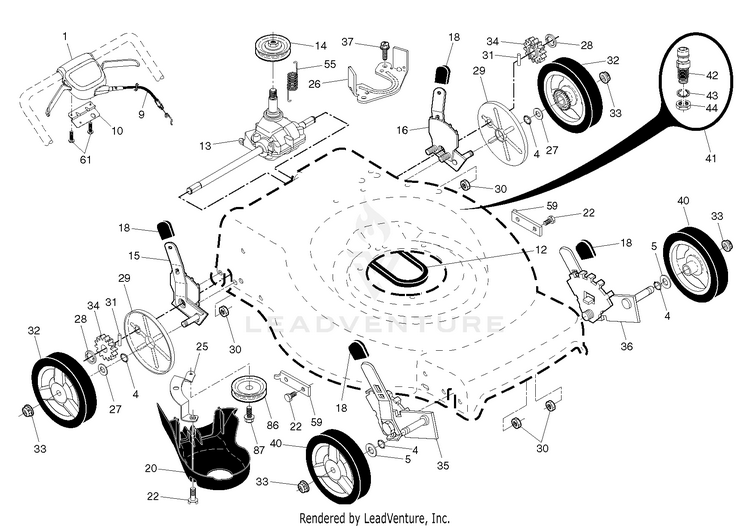

DRIVE

...
...
15
ADJUSTER.ASM.22+FGD.RF /AWD RT RH HUS-581497908
...
20
COVER.REAR.DRIVE.22+2013 HUS-580806901
...
30
NUT.HEX.FLANGE.1/4 HUS-532191730
...
16
ADJUSTER.ASM.22+FGD.LF /AWD LT LH HUS-581497907
...
44
LOCKNUT.HEX.WITH.O-RING HUS-532415586
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
59
BRACKET.SUPPORT.22+RWGD.BZP HUS-532442113
...
4
O-RING..070X.487.NEOPRENE HUS-532197480
...
28
E-RING 7/16 RE HUS-812000058
...
36
ADJUSTER.ASM.LH FRONT/RH REAR LH HUS-532437871
...
12
BELT V3L 35.42, CLUTCHING COVE HUS-580364611
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
61
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
26
BRACKET.TRANS.BELTKEEP.21 RWD HUS-589318302
...
43
WASHER.LOCK.INTERNAL.TOOTH HUS-532415585
...
87
SCREW HUS-581127601
...
35
ADJUSTER.ASM.9POS.LW.RGD.FR RH HUS-532437872
...
55
SPRING.RETURN.AUTO. HUS-581351301
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
10
BRACKET.DRIVE.CONTR.GEN2.BLACK HUS-532432790
...
27
WASHER FLUT HUS-532067725
...
13
TRANSMISSION.22+AWD.WALK.MOWER HUS-581680801
...
34
PINIION.14.TOOTH.RGD HUS-532404835
...
41
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
18
SELECTOR KNOB HUS-532701037
...
22
BOLT.5/16HEX.WHS.HD HUS-817000510
...
42
KIT.WASH-OUT.PORT.ZINC.WALK HUS-532438489
...
14
PULLEY AWD/RGD, SCREW-ON AWD/R HUS-586963002
...
86
PULLEY.RWD.IDLER.DBL SEAL HUS-587969201
...
9
CABLE.DRIVE.RWD.WALK. HUS-581952101
...
1
CONTROL.DR.AW2.22+.BLK.GEN HUS-589818808
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
37
SCREW HUS-532163409
...
25
BRACKET.DRIVE.COVER.RGD. HUS-581313802
...
5
WASHER.FLAT.1/2 HUS-532088348
...
31
PAWL, DRIVE HUS-532404845

FRAME & ENGINE

...
...
56
SCREW.HX.13X.750 HUS-817411312
...
36
BRACKET.ASM.HINGE.21.FWGD. HUS-532175735
...
28
BOLT.CARRIAGE.LN.5/16-18X.5/8 HUS-586212501
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
105
SCREW.SHROUD.HONDA HUS-580768701
...
104
SHROUD.ASM.HONDA.HUSQVARNA HUS-580290001
...
115
SCREW.HI-LO. 5/16 X 1.00 HUS-584299401
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
32
LATCH.DOOR.ZINC HUS-532441192
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
51
BAFFLE.FRONT.22.PLUS HUS-532430599
...
96
CLIP.CABLE.BLK HUS-532197991
...
1
HANDLE.UP.3POS.BS.AW2.GREY HUS-585854806
...
57
GSPW Hardware HUS-596039201
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
46
ADAPTER.BLADE.25MM.3MPH HUS-581851501
...
42
SPRING.TORSION HUS-532193000
...
8
BAIL.OM.ERGO.BENT.MZR.ORAN.668 HUS-587689302
...
30
RB GBAG.B55110010.GENERIC.SERV HUS-580943401
...
37
BOLT.5/16HEX.WHS.HD HUS-817000510
...
33
DOOR.MULCH.22+.BLK HUS-594942002
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
19
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
xx
BAG OF HARDWARE.22+ BAG OF PARTS ( INCLUDES KEY NUMBERS12 & 59 ) HUS-532423849
...
43
Hardware HUS-596041001
...
21
SPRING.LH.BLACK LH HUS-532419949
...
45
ROD.HINGE.21 HUS-532175650
...
64
HONDA GCV160-LAOS3DB FOR SERVICE & PARTS 1- 800- 426-7701 HUS-000000000
...
44
HOUSING.22+RGD.MCUT.WO.HUS.TRI HUS-581708327
...
99
COVER.ASM.FRONT.HUSQ.22+RGD HUS-585668702
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
34
BRACKET.GRASSBAG.ATTACHING.BLK HUS-532438134
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
48
WASHER,HARDEN HUS-532851074
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
49
Washers HUS-596238701
...
47
BLADE 22 4-N-1 2PIN 5STAR BLK HUS-580244002
...
58
HANDLE.LOWER.ASM.W/PLUG.22+.49 HUS-593270403
...
18
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
2
CABLE.MZR.ZONE.CONTROL HUS-532424983
...
24
SPRING.RH.GRAY RH HUS-532419948
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
40
BRACKET.ASM.HANDLE.RT.22+.GREY RH HUS-585900803
...
97
BRACKET.BELT.GUIDE.22+.BZP HUS-581115302
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
39
BRACKET.ASM.HANDLE.LT.22+.GREY LH HUS-585900703
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
