Husqvarna LC 356AWD Walk Behind Mower

Model: LC 356AWD

Back To Assemblies

Save Part Not Listed?
product name

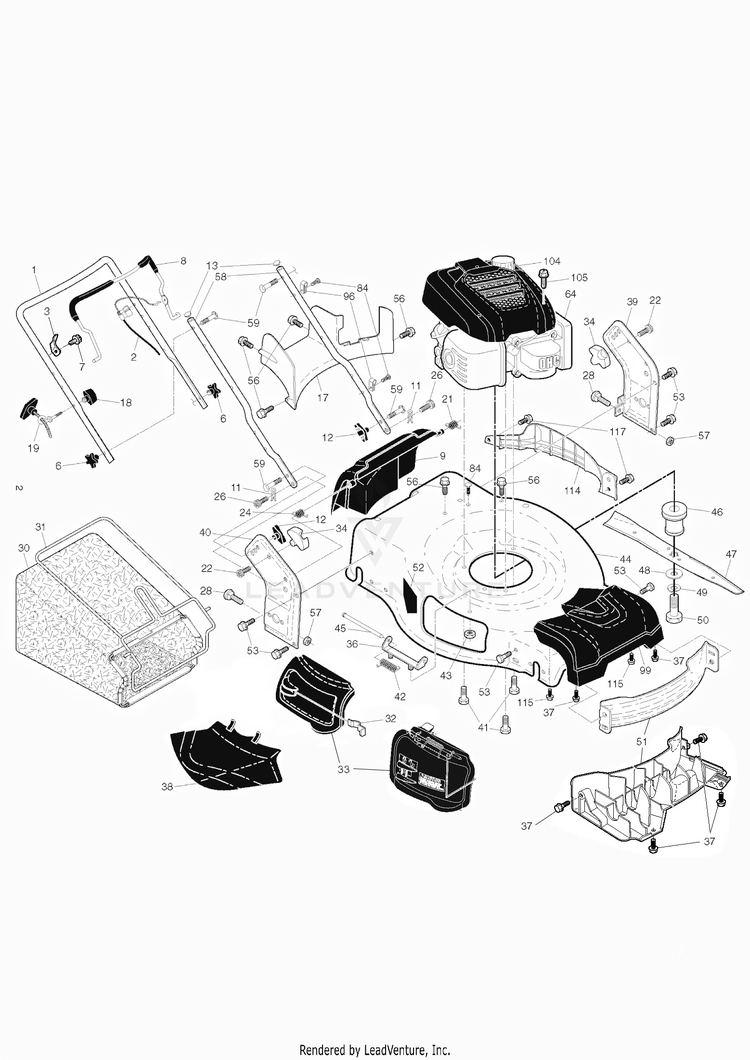

FRAME & ENGINE

...
...
114
BUMPER.LEFT SIDE 22+.498 For all EXCEPT 96141029200, 96141029201 HUS-587568102
...
22
SCREW.PAN.HEAD.#10 HUS-532141841
...
44
KIT.HSG.22+AW.MC.WO.668.CE SYM For all EXCEPT 96141029200, 96141029201, 96141029202 HUS-581708362
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
xx
BAG OF HARDWARE.22+ For all EXCEPT 96141029200, INCLUDES KEY NUMBERS 12 & 59 HUS-532423849
...
2
CABLE MZR (ZONE) 48.5 CONDUIT For 96141022000 HUS-596288401
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
104
SHROUD.ASM.HONDA.HUSQVARNA For all EXCEPT 96141029201, 96141029202, 96141022000 HUS-580290001
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
33
DOOR.MULCH.22+.BLK For 96141029205, 96141022000 HUS-594942002
...
56
SCREW.HX.13X.750 HUS-817411312
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
105
SCREW.SHROUD.HONDA For all EXCEPT 96141029201, 96141029202, 96141022000 HUS-580768701
...
xx
NEEDS DESCRIPTION NOT SHOWN HUS-114065020
...
57
GSPW Hardware HUS-596039201
...
46
ADAPTER BLADE, 25 MM 22+ AWD/ For 96141022000 HUS-591344701
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
115
SCREW.SHOULDER.5/16X1.375 HUS-581330001
...
58
HANDLE.LOWER.ASM.W/PLUG.22+.49 For 96141022000 HUS-593270403
...
9
DOOR ASSY REAR;22+.HUSQVARNA N HUS-593304501
...
114
RP BUMPER.HUSQVARNA For 96141029200, 96141029201 HUS-581253601
...
44
KIT.HSG.22+AW.MC.WO.PB.668.TRI For 96141029200, 96141029201, 96141029202 HUS-581708352
...
39
BRACKET.ASM.HANDLE.LT.22+.GREY LH HUS-585900703
...
58
HANDLE.LOWER.ASM.W/PLUG.22+.49 For 96141022000, 96141029200 HUS-593270403
...
37
SCREW.HI-LO. 5/16 X 1.00 For 96141029200, 96141029201, 96141029202 HUS-584299401
...
31
FRAME.GBAG.22+.BLK HUS-585054702
...
51
BAFFLE.FRONT.22.PLUS For all EXCEPT 96141029200, 96141029201, 96141029202 HUS-532430599
...
1
HANDLE.UP.3POS.BS.AW2.GREY For all EXCEPT 96141029200 HUS-585854806
...
33
DOOR ASSY KIT.MULCH DOOR.CE 22 For all EXCEPT 96141029205, 96141022000 HUS-593241102
...
43
Hardware For all EXCEPT 96141029205, 96141022000 HUS-596041001
...
19
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
64
HONDA GCV170-S3HB FOR SERVICE & PARTS 1-800-426-7701 HUS-000000000
...
2
CABLE.MZR.50.SNAP-IN For 96141029200, 96141029201 HUS-532427497
...
30
RB GBAG.B55110010.GENERIC.SERV HUS-580943401
...
8
BAIL.OM.ERGO.BENT.MZR.ORAN.668 For all EXCEPT 96141029200, 96141029201 HUS-587689302
...
99
COVER.ASM.FRONT.SHROUD.HUS.AWD For 96141029200, 96141029201, 96141029202 HUS-580992901
...
46
ADAPTER.BLADE.25MM.3MPH For all EXCEPT 96141022000 HUS-581851501
...
45
ROD.HINGE.21 HUS-532175650
...
24
SPRING.RH.GRAY RH HUS-532419948
...
xx
NEEDS DESCRIPTION NOT SHOWN HUS-114065040
...
8
BAIL.OVER.MOLD.ERGO.MZR.ORANGE For 96141029200, 96141029201 HUS-580849102
...
99
COVER.ASSEMBLY.FRONT.22+AWD For all EXCEPT 96141029200, 96141029201, 96141029202 HUS-585668701
...
34
BRACKET.GRASSBAG.ATTACHING.BLK HUS-532438134
...
xx
NEEDS DESCRIPTION NOT SHOWN HUS-114065010
...
32
LATCH.DOOR.ZINC For all EXCEPT 96141029205, 96141022000 HUS-532441192
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
49
Washers HUS-596238701
...
117
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
3
BRACKET.UPSTOP.RT For 96141029200, 96141029201 HUS-532430034
...
xx
NEEDS DESCRIPTION NOT SHOWN HUS-114065053
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE For all EXCEPT 96141022000 HUS-532437516
...
96
CLIP.CABLE.BLK HUS-532197991
...
2
CABLE.MZR.ZONE.CONTROL For 96141022000, 96141029200, 96141029201, 96141029204 HUS-532424983
...
17
BAFFLE.REAR.22+RGD.AWD.PLASTIC HUS-581782101
...
xx
NEEDS DESCRIPTION NOT SHOWN HUS-114065050
...
1
HANDLE.UPPER.3.POS.BS.AW2.GREY For 96141029200 HUS-580638706
...
40
BRACKET.ASM.HANDLE.RT.22+.GREY RH HUS-585900803
...
51
BAFFLE.FRONT.22+PLASTIC.(2 2) For 96141029200, 96141029201, 96141029202 HUS-581238901
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
48
WASHER,HARDEN HUS-532851074
...
7
SCREW For 96141029200, 96141029201 HUS-532178848
...
21
SPRING.LH.BLACK LH HUS-532419949
...
28
BOLT.CARRIAGE.LN.5/16-18X.5/8 HUS-586212501
...
58
HANDLE.LOWER.22+BT.2PC.GRY For 96141029200 HUS-532441197
...
42
SPRING.TORSION For all EXCEPT 96141029205, 96141022000 HUS-532193000
...
47
BLADE 22 4-N-1 2PIN 5STAR BLK HUS-580244002
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
18
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
36
BRACKET.ASM.HINGE.21.FWGD. For all EXCEPT 96141029205, 96141022000 HUS-532175735
