Husqvarna LC 353iV - 967979801 (2020-01) Walk Behind Mower

Model: LC 353iV - 967979801 (2020-01)

Save Part Not Listed?
product name

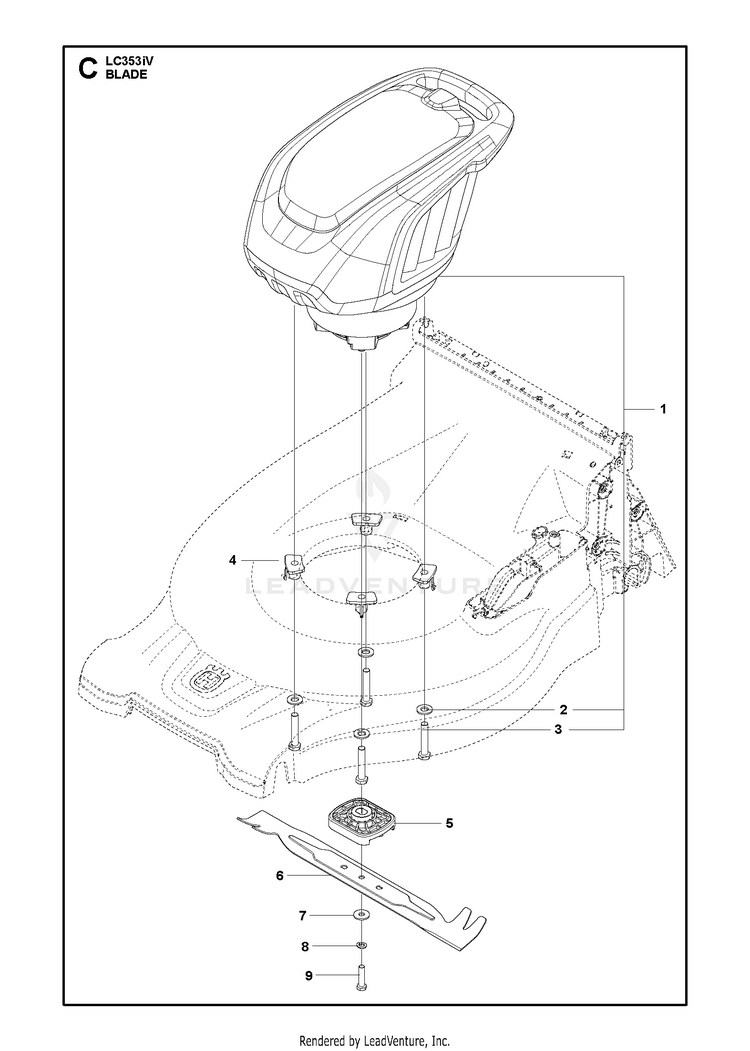

BLADE MOTOR & CUTTING EQUIPMENT

...
...
1
NEEDS DESCRIPTION Powerhead Unit HUS-590531404
...
6
NEEDS DESCRIPTION HUS-594075710
...
5
NEEDS DESCRIPTION Transmission system HUS-596602201
...
4
NEEDS DESCRIPTION For engine screws, Plastic chassis HUS-578295101
...
2
NEEDS DESCRIPTION 10.5x22x2 BRB ZPB HUS-504466801
...
9
SCREW M8x30 8.8 ZPB HUS-725245571
...
8
SPRING WASHER HUS-579684201
...
3
SCREW M10x55 8.8 ZPB,ISO 4017 HUS-725250271
...
7
SPACER SRKB 8.4/25X2 HUS-734116441

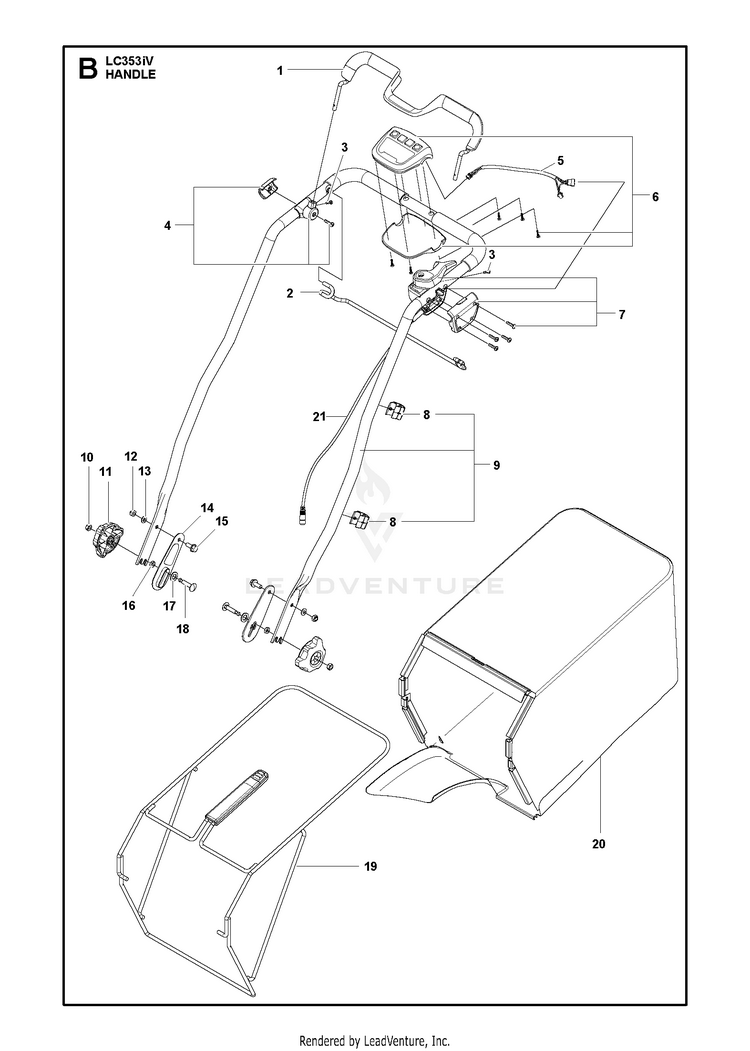

HANDLE

...
...
17
Washers Nylon Washer HUS-588157401
...
16
NUT ML6M M8 M8 St 04 ZPB,ISO 4035 HUS-731431801
...
3
DRIVE SCREW HANDLE ASSY M4 BAI HUS-593198701
...
4
BAIL ARM ASSY SPARE PART ASSY Bail support assembly HUS-593118701
...
13
WASHERS 8x16x1.5 St ZPB,Type NB HUS-734182051
...
11
Knobs handle HUS-587237201
...
15
BOLT M8x20 8.8 ZPB,EHHFM HUS-506570104
...
21
Cables HUS-597688701
...
7
SWITCHBOX ASSY SPARE PART ASSY Push HUS-593118001
...
14
Washers Washer handle/handlesupport HUS-587780401
...
1
Bails Handle assy, OPC bail kit HUS-596253601
...
9
NEEDS DESCRIPTION Handle assy HUS-596280301
...
18
Bolts Esloc,Carriage Bolt M8 HUS-588157302
...
12
LOCKNUT M8 M8-8 HUS-732211801
...
2
Bails Drive bail HUS-587101802
...
8
CABLE HOLDER HANDLE ASSY Handle mounted clip HUS-591086401
...
20
NEEDS DESCRIPTION Grassbag HUS-501856601
...
10
NUT M8 8 ZPB,ISO 4032 HUS-731231801
...
19
NEEDS DESCRIPTION Bag frame HUS-501716001
...
6
NEEDS DESCRIPTION Control board, Drive HUS-596253004
...
5
EXTENSION CABLE CONTROL PANEL Control panel assy cable HUS-593198601

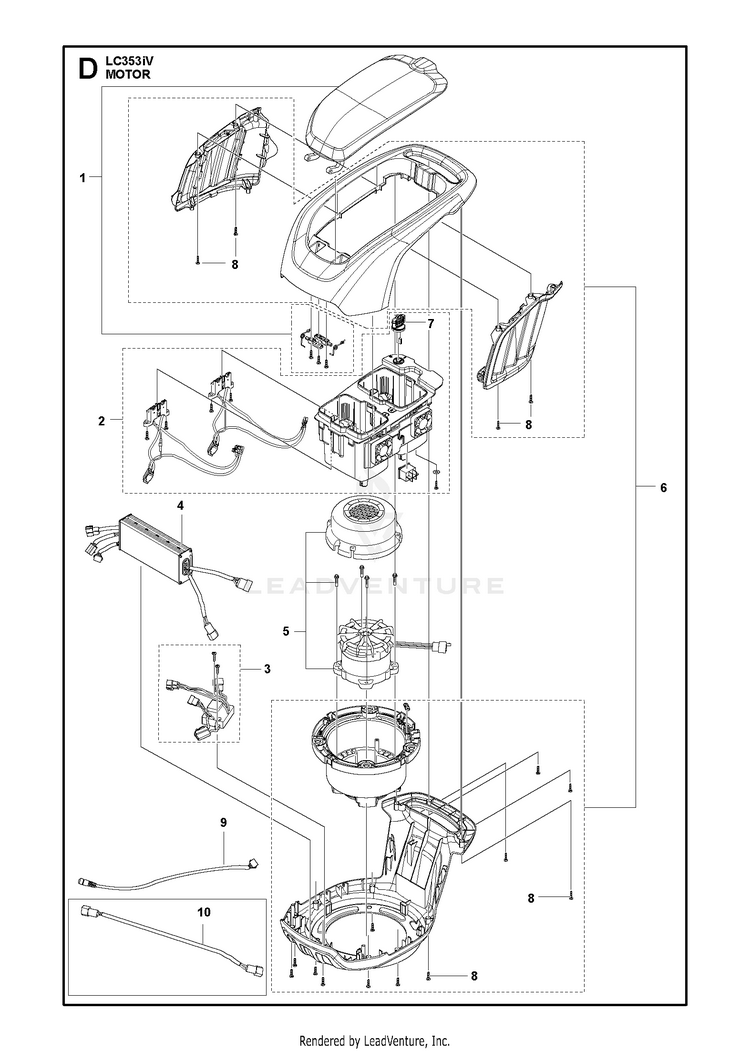

MOTOR

...
...
6
ENGINE HOOD ASSY POWER UNIT LC Power unit cover HUS-593203901
...
3
NEEDS DESCRIPTION Battery control plate HUS-593133602
...
1
LID ASSY SPARE PART ASSY LC247 Powerhead lid and hinge HUS-593124301
...
4
NEEDS DESCRIPTION Motor control box HUS-593132702
...
5
NEEDS DESCRIPTION Brushless motor 900W HUS-593783802
...
9
NEEDS DESCRIPTION handle HUS-593722801
...
7
KEY battery pocket key HUS-501490101
...
8
SCREW SELF TAPPING DAYE# A2680 Engine hood screws HUS-593755501
...
2
NEEDS DESCRIPTION Battery pocket HUS-593124502
...
10
CABLE TRANSMISSION LC347VLI transmission HUS-593722601

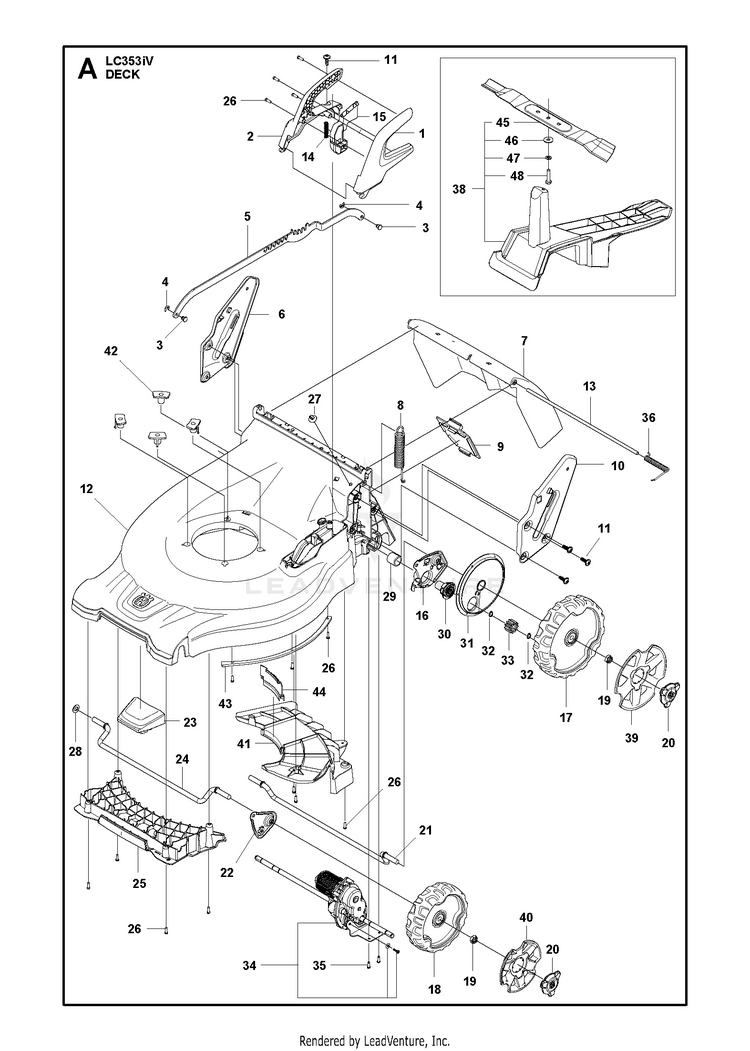

MOWER DECK / CUTTING DECK

...
...
19
NEEDS DESCRIPTION Lock, M12x10 HUS-587990901
...
28
Washers 12/22/2 FZB ISO7089 HUS-577092801
...
7
NEEDS DESCRIPTION Rear door 53cm, Powerhead HUS-501716102
...
44
NEEDS DESCRIPTION 53cm electric HUS-594099001
...
9
NEEDS DESCRIPTION Service door HUS-587095402
...
1
NEEDS DESCRIPTION Husqvarna, Suspension - Left - Height adjustment HUS-587203701
...
17
NEEDS DESCRIPTION Husqvarna, With Sleeve, 230, Drive HUS-588749601
...
14
NEEDS DESCRIPTION HA Button HUS-589597601
...
39
NEEDS DESCRIPTION 230 Husqvarna HUS-588752001
...
47
SPRING WASHER HUS-579684201
...
26
SCREW ITXPANT T50X16 ZN/FE (A T50x16 Zn/Fe (A009) HUS-502435301
...
22
NEEDS DESCRIPTION Front idler 170 HUS-587072401
...
6
NEEDS DESCRIPTION right HUS-587212302
...
42
NEEDS DESCRIPTION For engine screws, Plastic chassis HUS-578295101
...
2
NEEDS DESCRIPTION Husqvarna, Suspension - Right - Height adjustment HUS-587203801
...
31
NEEDS DESCRIPTION Dust cover, 230 HUS-589639801
...
43
NEEDS DESCRIPTION Chassis 53 cm HUS-582022801
...
38
NEEDS DESCRIPTION Mulch plug and combi blade kit HUS-595001101
...
4
Retaining Ring 7x0.9 St PP,SHAFTS HUS-735311220
...
40
NEEDS DESCRIPTION 190 Husqvarna HUS-588752101
...
45
NEEDS DESCRIPTION HUS-595007210
...
30
ASSY HUS-501861001
...
12
NEEDS DESCRIPTION Husqvarna, 53 cm HUS-501704801
...
41
NEEDS DESCRIPTION Belt cover 53 cm HUS-501715501
...
10
NEEDS DESCRIPTION left HUS-587212102
...
3
NEEDS DESCRIPTION Suspension HUS-587687001
...
15
NEEDS DESCRIPTION ASSY - Suspension - Height adjustment HUS-587697401
...
29
NEEDS DESCRIPTION Rubber HUS-579682802
...
27
NEEDS DESCRIPTION FIR TREE 170x5 HUS-579317401
...
35
SCREW ITXPANT T50X16 ZN/FE (A T50x16 Zn/Fe (A009) HUS-502435301
...
11
NEEDS DESCRIPTION 8x24, TBO, For Thermoplastics HUS-578175802
...
16
NEEDS DESCRIPTION Rear idler 210 HUS-587072501
...
24
NEEDS DESCRIPTION Front 47 cm, Suspension HUS-587072604
...
46
SPACER SRKB 8.4/25X2 HUS-734116441
...
13
NEEDS DESCRIPTION Hatch rear door HUS-586984602
...
25
NEEDS DESCRIPTION Husqvarna, Front HUS-501910301
...
34
NEEDS DESCRIPTION Assy HUS-594728801
...
32
NEEDS DESCRIPTION 12x1 st ZPB, SGA HUS-735311401
...
18
NEEDS DESCRIPTION Husqvarna, With Sleeve, 190, Idler HUS-588749701
...
21
NEEDS DESCRIPTION Rear 53 cm,Suspension HUS-587072603
...
20
NUT CAP Nut cap HUS-584159401
...
33
Pinions Full Width, PM, 11 T, 21.25mm Root Diam HUS-544342301
...
8
NEEDS DESCRIPTION 53 cm,Balance - Suspension HUS-588827701
...
48
SCREW M8x30 8.8 ZPB HUS-725245571
...
36
NEEDS DESCRIPTION hatch HUS-587101501
...
23
NEEDS DESCRIPTION COUNTERWEIGHT HUS-594727201
...
5
NEEDS DESCRIPTION Suspension 190/230 HUS-588827801
