Husqvarna LC 351V Walk Behind Mower

Model: LC 351V

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
4
HANDLE.BAGGER.W/LVRS.BLK.CRD HUS-532169916
...
35
PIN HUS-532165572
...
31
GSPW Retainers HUS-596029401
...
50
Hardware HUS-596040501
...
8
COVER.PNT.BGR.CRD.WSLOTS.MS668 HUS-532441543
...
53
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
7
NUT HUS-873401000
...
20
BRKT.PIVOT.RH.CRD HUS-532188847
...
15
RETAINER-SPRNG RB HUS-532124670
...
5
SCREW.PAN.HEAD HUS-874981024
...
24
TUBE.PIVOT.BAG.CRD.BLACK HUS-532165783
...
25
TUBE.FRONT.BAGGER.CRD HUS-583211601
...
28
GRIP.HANDLE.BLACK HUS-532165787
...
49
BAR.SPREADER.BAGGER.CRD HUS-583208201
...
33
MULCHING.PLUG.107.CRD.(2 2) HUS-532428683
...
22
BRKT.SIDE.BAG.CRD HUS-532165781
...
14
Bolts HUS-596564404
...
41
BRKT.VERT.ADJ.BAGGER.CRD HUS-532169683
...
10
TUBE.SUPPORT.BAGGER.CRD HUS-583110201
...
52
BOLT.CARRIAGE.1/4-20 X 7/8 HUS-872110407
...
9
Bolt Carriage 1/4-20 x 2.25d x Gr.5 HUS-872140418
...
16
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
34
HANDLE.MULCHER.92.CRD (2 2) HUS-532165570
...
19
GSPW Nuts HUS-596135701
...
46
BOLT.CARRIAGE.5/16-18 HUS-872110510
...
51
SERVICE KIT LATCH.SPRING.BAGGE HUS-529846601
...
11
BRACKET.SUPPORT.UPPER.BAG.CRD HUS-532165719
...
39
SEAL.BAGGER.CRD HUS-532416257
...
47
TUBE.UPPER.BAGGER.CRD HUS-583211501
...
1
TUBE HANDLE BAGGER HUS-532170690
...
44
NEEDS DESCRIPTION HUS-532193312
...
21
NEEDS DESCRIPTION HUS-532193838
...
17
GSPW Bolts HUS-595901601
...
37
Plug Support Bagger CRD HUS-532175401
...
43
PLUG, TUBING END HUS-532174083
...
12
BRKT.PIVOT.LH.CRD HUS-583173701
...
6
SCREW HUS-532750029
...
36
GSPH HUS-596134901
...
3
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
32
RIVET,DRILLED HUS-532126875
...
38
BOLT.5/16-18X2.5 HUS-872010520

ELECTRICAL

...
...
22
HUS-504857801
...
166
NEEDS DESCRIPTION HUS-531205732
...
10
NEEDS DESCRIPTION HUS-574610501
...
58
DEFLECTOR 51 CAST ORANGE HUS-501322305
...
172
NEEDS DESCRIPTION HUS-531207981
...
80
HUS-531205840
...
2
HUS-504857801
...
53
NEEDS DESCRIPTION HUS-577876703
...
12
HUS-538235807
...
32
NEEDS DESCRIPTION HUS-504113310
...
216
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
8
Springs HUS-583951302
...
190
Screws HUS-531207856
...
30
NEEDS DESCRIPTION HUS-531206649
...
43
NEEDS DESCRIPTION HUS-504103201
...
17
HUS-531208778
...
180
DEFLECTOR HUS-501966001
...
102
BRAKE WIRE HUS-531213522
...
24
HUS-531208778
...
13
HUS-504800101
...
28
Pins HUS-531206653
...
175
Screws HUS-531204921
...
86
HUS-531211480
...
15
Washers HUS-531208772
...
168
SPRING 51 CAST HUS-501322501
...
41
NEEDS DESCRIPTION HUS-544428903
...
214
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
169
NEEDS DESCRIPTION HUS-584816903
...
95
HANDLE ASSY HUS-581783102
...
212
PULLEY.CAM.DRIVE.CONTROL.EZ For 96515950303 HUS-532406262
...
84
HUS-531211473
...
174
NEEDS DESCRIPTION HUS-531205741
...
65
HUS-531205848
...
54
SPRING HUS-531205831
...
104
NEEDS DESCRIPTION HUS-531205213
...
103
HUS-531208043
...
34
NEEDS DESCRIPTION HUS-504591302
...
192
NEEDS DESCRIPTION HUS-531206308
...
181
Screws HUS-531207856
...
45
HUS-544934701
...
188
NEEDS DESCRIPTION HUS-544468601
...
191
Covers HUS-531213225
...
47
HUS-504548001
...
150
SCREW HUS-531207385
...
3
NEEDS DESCRIPTION HUS-544916904
...
14
Pins HUS-531206653
...
1
NEEDS DESCRIPTION HUS-544443901
...
151
Supports HUS-531206652
...
167
NEEDS DESCRIPTION HUS-531213344
...
48
NEEDS DESCRIPTION HUS-504035101
...
27
HUS-504856501
...
215
BRACKET.DRIVE.CONTROL.MOUNT.BL HUS-532400723
...
35
NEEDS DESCRIPTION HUS-504591401
...
98
HUS-531205581
...
9
HUS-531208492
...
4
HUS-531208778
...
16
Pinions HUS-544342301
...
23
NEEDS DESCRIPTION HUS-544917302
...
83
HUS-531211476
...
164
NEEDS DESCRIPTION HUS-531213845
...
55
NEEDS DESCRIPTION HUS-531213226
...
155
Screws HUS-531207856
...
52
NEEDS DESCRIPTION HUS-531213544
...
70
NEEDS DESCRIPTION HUS-531205715
...
176
NEEDS DESCRIPTION HUS-531213366
...
42
NEEDS DESCRIPTION HUS-510037501
...
44
HUS-544934301
...
11
NEEDS DESCRIPTION HUS-581178601
...
156
NEEDS DESCRIPTION HUS-531205536
...
163
NEEDS DESCRIPTION HUS-531213493
...
92
NEEDS DESCRIPTION HUS-544463801
...
81
HUS-531204922
...
31
HUS-531207237
...
46
HUS-504547901
...
100
NEEDS DESCRIPTION HUS-531206346
...
7
HUS-504827301
...
21
NEEDS DESCRIPTION HUS-544444001
...
75
NEEDS DESCRIPTION engine, Briggs & Stratton, model number 1006020008H8 HUS-.
...
82
HUS-531211474
...
85
HUS-531211581
...
212
PULLEY.CAM.DRIVE.CONTROL.HV For 96515950302 HUS-532187353
...
173
NEEDS DESCRIPTION HUS-531212046
...
211
KIT.CONTL.ASM.CASE.HALVES.GREY HUS-532197168
...
171
NEEDS DESCRIPTION HUS-531207982
...
71
NEEDS DESCRIPTION HUS-531213378
...
213
LEVER.BLACK HUS-532425662
...
210
NEEDS DESCRIPTION HUS-544932903
...
170
NEEDS DESCRIPTION HUS-510417301
...
91
NEEDS DESCRIPTION HUS-578399301
...
51
FRAME 51 CAST HUS-501322401

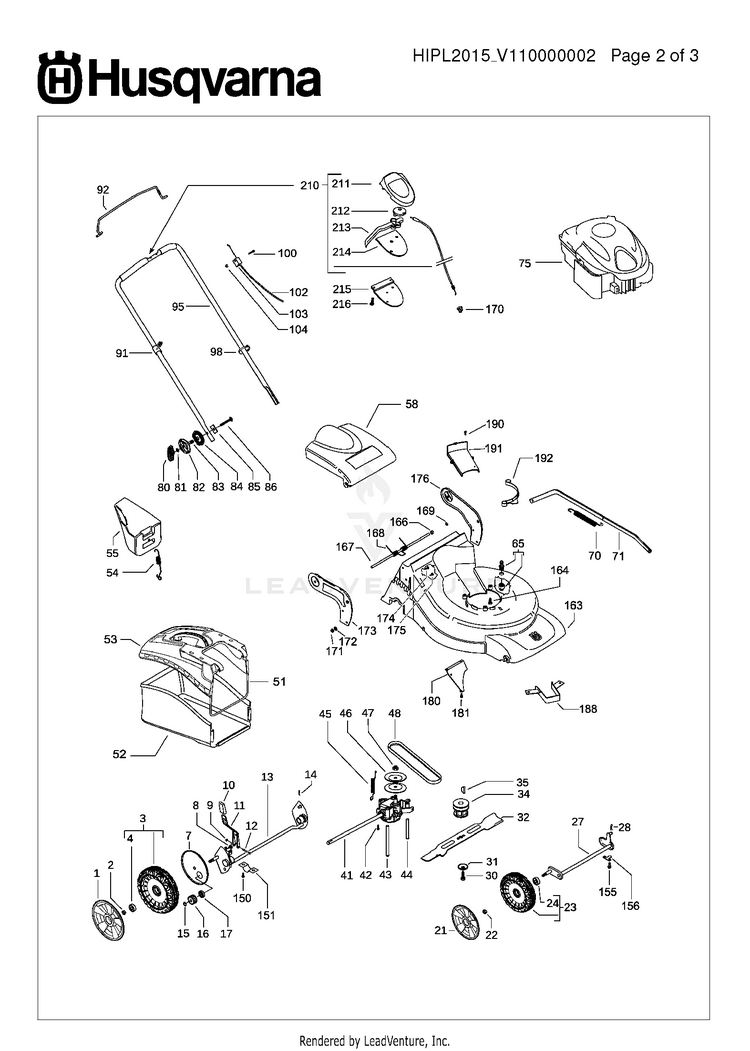

Schematic Image Zoomed
