Husqvarna LC 347iVX - 967862302 (2019-01) Walk Behind Mower

Model: LC 347iVX - 967862302 (2019-01)

Save Part Not Listed?
product name

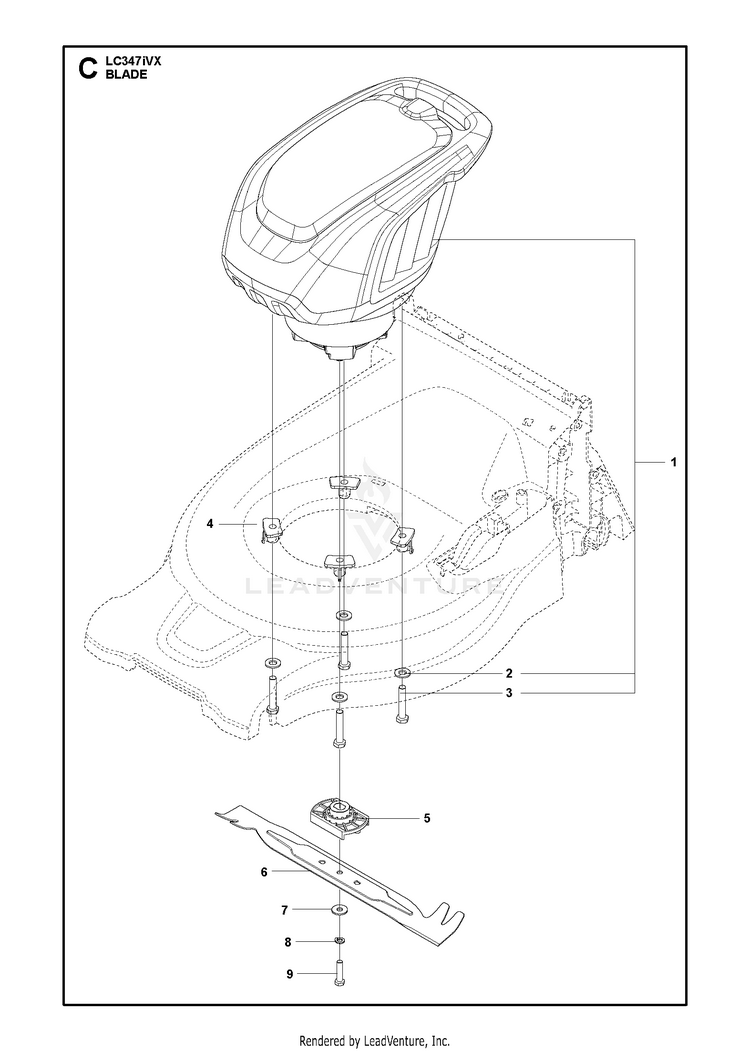

BLADE MOTOR & CUTTING EQUIPMENT

...
...
5
BLADE SUPPORT TRANSMISSION SYS Transmission system HUS-591084301
...
6
NEEDS DESCRIPTION 47cm HUS-590593410
...
8
SPRING WASHER HUS-579684201
...
2
NEEDS DESCRIPTION 10.5x22x2 BRB ZPB HUS-504466801
...
9
SCREW M8x30 8.8 ZPB HUS-725245571
...
3
SCREW M10x55 8.8 ZPB,ISO 4017 HUS-725250271
...
7
SPACER SRKB 8.4/25X2 HUS-734116441
...
1
NEEDS DESCRIPTION Powerhead Unit HUS-590531402
...
4
NEEDS DESCRIPTION For engine screws, Plastic chassis HUS-578295101

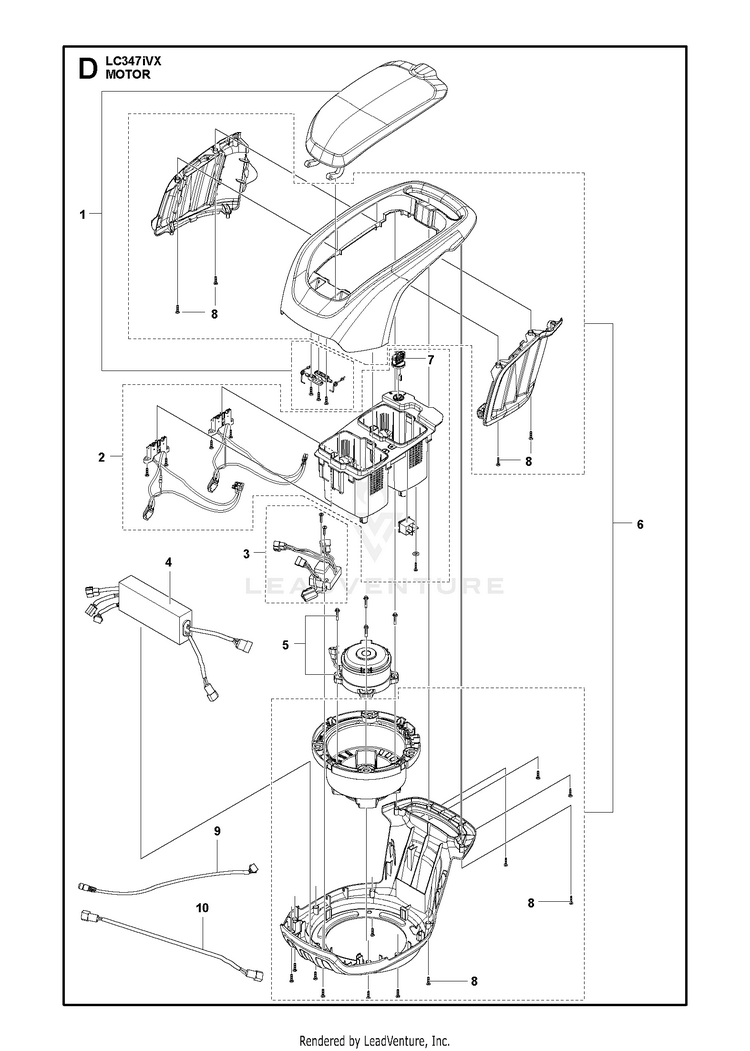

MOTOR

...
...
24
BALL BEARING HUS-738210104
...
33
NEEDS DESCRIPTION HUS-504709802
...
27
NEEDS DESCRIPTION HUS-544443901
...
11
NEEDS DESCRIPTION HUS-504048601
...
29
NEEDS DESCRIPTION HUS-574259401
...
47
NEEDS DESCRIPTION HUS-505130501
...
3
NEEDS DESCRIPTION HUS-504053301
...
49
NEEDS DESCRIPTION HUS-505124301
...
17
NEEDS DESCRIPTION HUS-505130401
...
35
NEEDS DESCRIPTION HUS-504624901
...
54
SCREW ITXPANTT M5X10 ZPB (A00 HUS-502435201
...
57
SCREW ITXPANTT M5X10 ZPB (A00 HUS-502435201
...
25
NEEDS DESCRIPTION HUS-504709801
...
52
NEEDS DESCRIPTION HUS-505140501
...
9
NEEDS DESCRIPTION HUS-522024001
...
4
BELT WRAPPED V-BELT Z 31 3/4" HUS-501986605
...
37
SCREW ITXPANTT M5X10 ZPB (A00 HUS-502435201
...
48
NEEDS DESCRIPTION HUS-505130901
...
46
NEEDS DESCRIPTION HUS-505397001
...
41
NEEDS DESCRIPTION HUS-502625401
...
53
SCREW ITXPANT T50X16 ZN/FE (A HUS-502435301
...
42
NEEDS DESCRIPTION HUS-510029401
...
22
NEEDS DESCRIPTION HUS-504702801
...
10
NEEDS DESCRIPTION HUS-504048701
...
15
NEEDS DESCRIPTION HUS-522612301
...
40
NEEDS DESCRIPTION HUS-505031901
...
14
HUS-531205848
...
38
SCREW ITXPANTT M5X10 ZPB (A00 HUS-502435201
...
19
E-RING 5 HUS-735310920
...
45
NEEDS DESCRIPTION HUS-504627602
...
28
NEEDS DESCRIPTION HUS-544433101
...
23
NEEDS DESCRIPTION HUS-505221401
...
7
NEEDS DESCRIPTION HUS-504048001
...
12
NEEDS DESCRIPTION HUS-505144001
...
26
NEEDS DESCRIPTION HUS-502496801
...
18
BOLT HUS-506558302
...
31
NEEDS DESCRIPTION HUS-504624101
...
44
NEEDS DESCRIPTION HUS-574406001
...
16
NEEDS DESCRIPTION HUS-504641501
...
32
Pinions HUS-544342301
...
39
NEEDS DESCRIPTION HUS-505521001
...
59
NEEDS DESCRIPTION HUS-574360501
...
1
SCREW ITXPANTT M5X10 ZPB (A00 HUS-502435201
...
13
NEEDS DESCRIPTION HUS-505895901
...
50
NEEDS DESCRIPTION HUS-505144001
...
21
NEEDS DESCRIPTION HUS-504625001
...
5
NEEDS DESCRIPTION HUS-574867201
...
51
SCREW ITXPANTT M5X10 ZPB (A00 HUS-502435201
...
43
NEEDS DESCRIPTION HUS-505109301
...
8
SCREW ITXPANT T50X16 ZN/FE (A HUS-502435301
...
2
NEEDS DESCRIPTION HUS-504055601
...
56
NEEDS DESCRIPTION HUS-505202101
...
34
NEEDS DESCRIPTION HUS-506606301
...
30
NEEDS DESCRIPTION HUS-544916902
...
6
NEEDS DESCRIPTION HUS-504048301
...
55
NEEDS DESCRIPTION HUS-505201901
...
60
SCREW ITXPANT T50X16 ZN/FE (A HUS-502435301

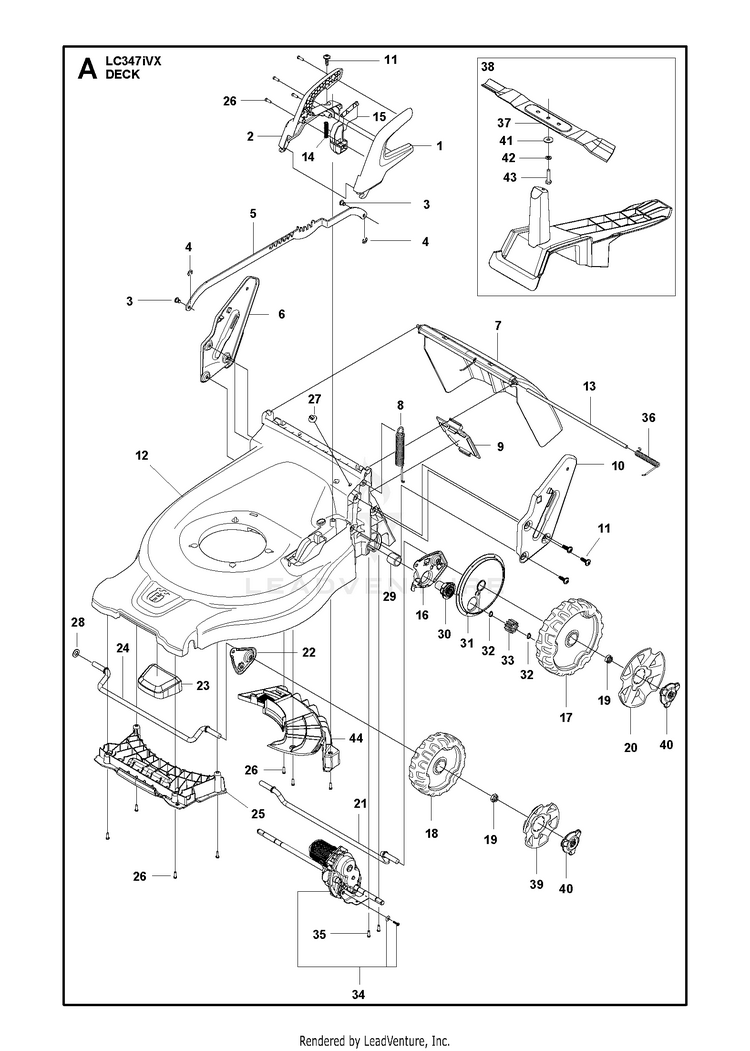

MOWER DECK / CUTTING DECK

...
...
16
NEEDS DESCRIPTION Rear idler 210 HUS-587072501
...
37
NEEDS DESCRIPTION 47cm HUS-590701010
...
34
NEEDS DESCRIPTION Assy HUS-590679001
...
12
NEEDS DESCRIPTION Husqvarna,47 cm HUS-587151005
...
3
NEEDS DESCRIPTION Suspension HUS-587687001
...
19
NEEDS DESCRIPTION Lock, M12x10 HUS-587990901
...
5
NEEDS DESCRIPTION Suspension 170/210 HUS-587160801
...
20
HUB CAP Wheel Ø210mm HUS-584159301
...
32
NEEDS DESCRIPTION 12x1 st ZPB,SGA HUS-735311401
...
44
NEEDS DESCRIPTION Belt cover HUS-590800401
...
41
SPACER SRKB 8.4/25X2 HUS-734116441
...
27
NEEDS DESCRIPTION FIR TREE 170x5 HUS-579317401
...
33
Pinions Full Width,PM, 11 T, 21.25mm Root Diam HUS-544342301
...
15
NEEDS DESCRIPTION ASSY - Suspension - Height adjustment HUS-587697401
...
28
Washers 12/22/2 FZB ISO7089 HUS-577092801
...
22
NEEDS DESCRIPTION Front idler 170 HUS-587072401
...
35
SCREW ITXPANT T50X16 ZN/FE (A T50x16 Zn/Fe (A009) HUS-502435301
...
36
NEEDS DESCRIPTION hatch HUS-587101501
...
17
NEEDS DESCRIPTION Husqvarna, With Sleeve,210, idle, medium HUS-582305701
...
8
NEEDS DESCRIPTION 47 cm,Balance - Suspension HUS-587674401
...
10
NEEDS DESCRIPTION left HUS-587212102
...
40
NUT CAP Nut Cap HUS-584159401
...
4
Retaining Ring 7x0.9 St PP,SHAFTS HUS-735311220
...
9
NEEDS DESCRIPTION Service door HUS-587095402
...
25
NEEDS DESCRIPTION Husqvarna,Front HUS-588202701
...
43
SCREW M8x30 8.8 ZPB HUS-725245571
...
39
NEEDS DESCRIPTION Ø170 Husqvarna HUS-587632701
...
29
NEEDS DESCRIPTION Rubber HUS-579682802
...
30
ASSY HUS-501861001
...
6
NEEDS DESCRIPTION right HUS-587212302
...
26
SCREW ITXPANT T50X16 ZN/FE (A T50x16 Zn/Fe (A009) HUS-502435301
...
31
NEEDS DESCRIPTION Drive 210 HUS-587204002
...
11
NEEDS DESCRIPTION 8x24, TBO,For Thermoplastics HUS-578175802
...
42
SPRING WASHER HUS-579684201
...
13
NEEDS DESCRIPTION HUS-586984601
...
24
NEEDS DESCRIPTION Front 47 cm,Suspension HUS-587072602
...
1
NEEDS DESCRIPTION Husqvarna,Suspension - Left - Height adjustment HUS-587203701
...
14
NEEDS DESCRIPTION HA Button HUS-589597601
...
38
NEEDS DESCRIPTION Mulch plug and combi blade kit HUS-590790901
...
21
NEEDS DESCRIPTION Rear 47 cm,Suspension HUS-587072601
...
18
NEEDS DESCRIPTION Husqvarna,170, Idler HUS-587631501
...
7
NEEDS DESCRIPTION HVA, rear discharge HUS-590594001
...
2
NEEDS DESCRIPTION Husqvarna,Suspension - Right - Height adjustment HUS-587203801
