Husqvarna LC 247i Walk Behind Mower

Model: LC 247i

Save Part Not Listed?
product name

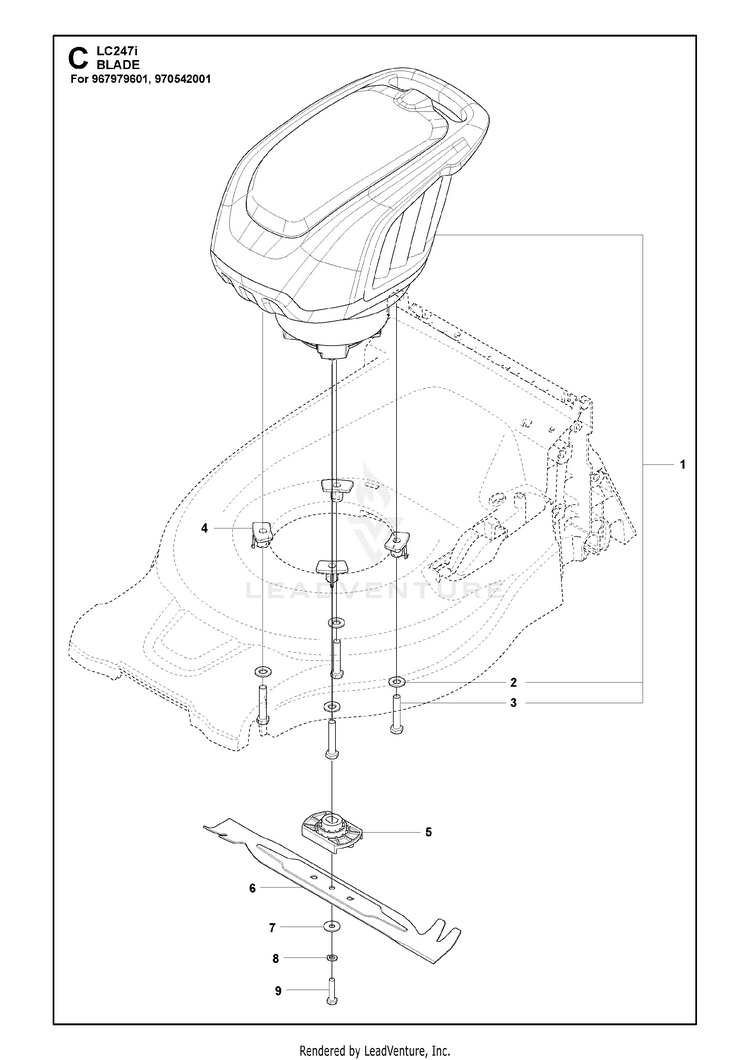

BLADE MOTOR & CUTTING EQUIPMENT

...
...
3
SCREW M10x55 8.8 ZPB,ISO 4017 HUS-725250271
...
1
NEEDS DESCRIPTION Powerhead HUS-590531401
...
6
NEEDS DESCRIPTION 47cm HUS-590593410
...
4
NEEDS DESCRIPTION For engine screws, Plastic chassis HUS-578295101
...
2
NEEDS DESCRIPTION 10.5x22x2 BRB ZPB HUS-504466801
...
8
SPRING WASHER Spring washer HUS-579684201
...
5
BLADE SUPPORT TRANSMISSION SYS Transmission system HUS-591084301
...
7
SPACER Washer HUS-734116441
...
9
SCREW M8x30 8.8 ZPB HUS-725245571

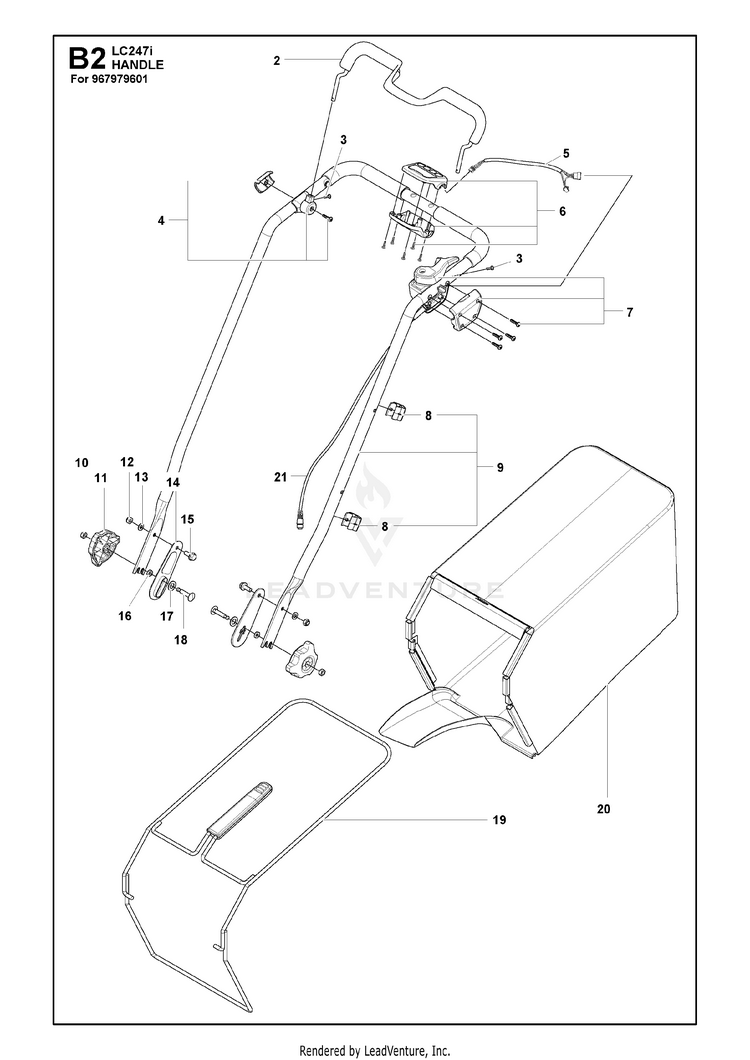

HANDLE

...
...
16
NUT ML6M M8 M8 St 04 ZPB,ISO 4035 HUS-731431801
...
5
EXTENSION CABLE CONTROL PANEL Control panel assy cable HUS-593198601
...
7
SWITCHBOX ASSY ASSY LC247LI Push HUS-593117901
...
11
Knobs handle HUS-587237201
...
10
NUT M8 8 ZPB,ISO 4032 HUS-731231801
...
4
BAIL ARM ASSY SPARE PART ASSY Bail support assembly HUS-593118701
...
15
BOLT M8x20 8.8 ZPB,EHHFM HUS-506570104
...
9
NEEDS DESCRIPTION Upper HUS-593119702
...
12
LOCKNUT M8 M8-8 HUS-732211801
...
17
Washers Nylon Washer HUS-588157401
...
18
Bolts Esloc,Carriage Bolt M8 HUS-588157302
...
19
NEEDS DESCRIPTION Grassbag HUS-587182001
...
8
CABLE HOLDER HANDLE ASSY Handle mounted clip HUS-591086401
...
2
Bails OPC Bail HUS-596253601
...
21
Cables HUS-597688701
...
13
WASHERS 8x16x1.5 St ZPB,Type NB HUS-734182051
...
20
NEEDS DESCRIPTION Husqvarna, Fabric assembly HUS-587292301
...
3
DRIVE SCREW HANDLE ASSY M4 BAI M4 bail screw HUS-593198701
...
6
NEEDS DESCRIPTION Push HUS-596253003
...
14
Washers Washer handle/handlesupport HUS-587780401

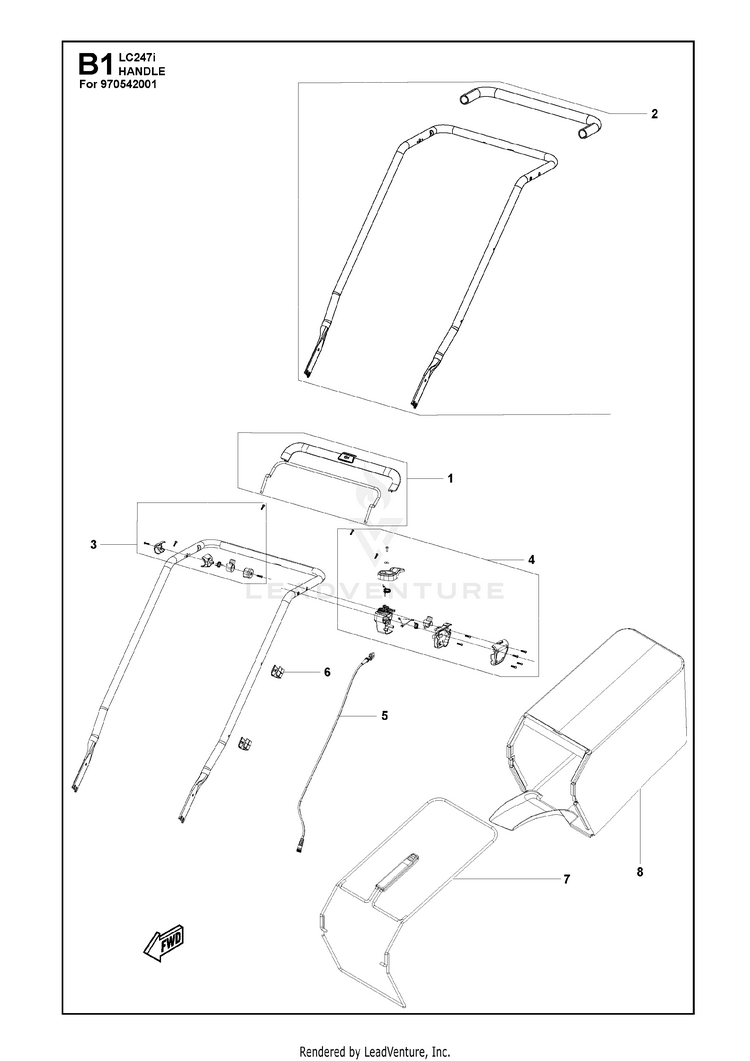

HANDLE 2

...
...
2
NEEDS DESCRIPTION HUS-531147229
...
1
NEEDS DESCRIPTION HUS-531147228
...
3
NEEDS DESCRIPTION HUS-531147230
...
7
NEEDS DESCRIPTION HUS-587182001
...
6
NEEDS DESCRIPTION HUS-531147233
...
5
NEEDS DESCRIPTION HUS-531147232
...
8
NEEDS DESCRIPTION HUS-587292303
...
4
NEEDS DESCRIPTION HUS-531147231

MOTOR

...
...
6
NEEDS DESCRIPTION HUS-531147224
...
4
NEEDS DESCRIPTION HUS-531147222
...
8
NEEDS DESCRIPTION HUS-531147227
...
1
NEEDS DESCRIPTION HUS-531147220
...
5
NEEDS DESCRIPTION HUS-531147223
...
9
NEEDS DESCRIPTION HUS-531147226
...
2
KEY HUS-501490101
...
3
NEEDS DESCRIPTION HUS-531147221
...
7
NEEDS DESCRIPTION HUS-531147225

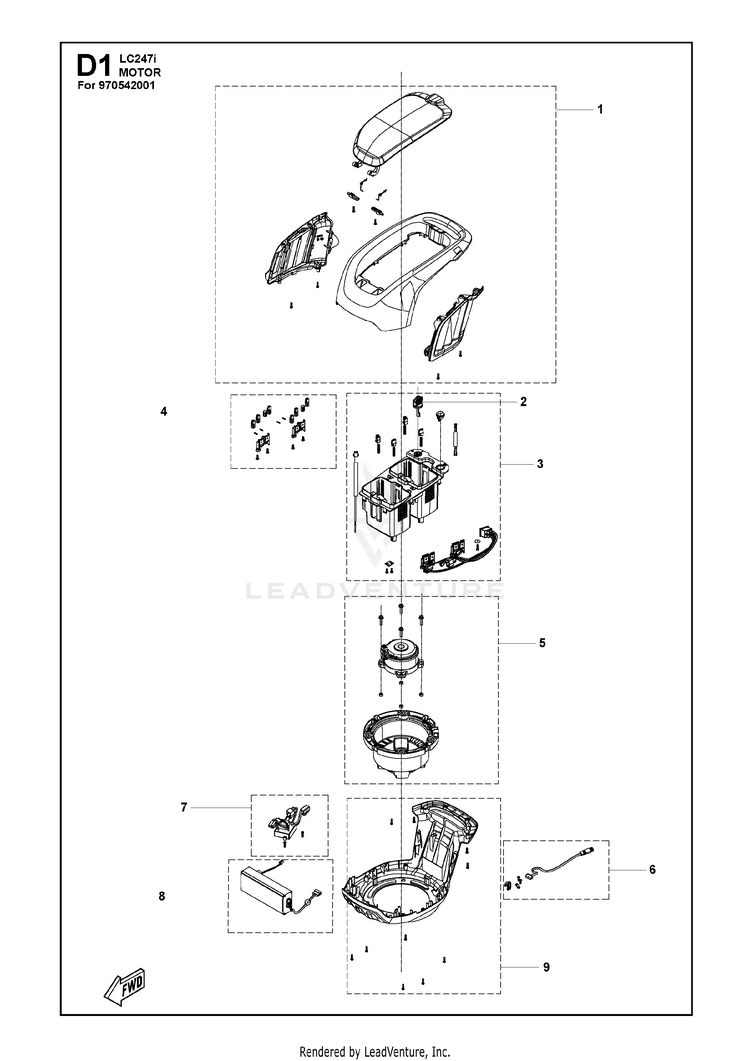

MOTOR 2

...
...
7
KEY battery pocket key HUS-501490101
...
3
CONTACT PLATE SPARE PART ASSY Battery control plate HUS-593133601
...
8
SCREW SELF TAPPING DAYE# A2680 Engine hood screws HUS-593755501
...
2
BATTERY BOX SPARE PART ASSY LC Battery pocket HUS-593124501
...
5
NEEDS DESCRIPTION Brushless motor 750W HUS-592749301
...
1
LID ASSY SPARE PART ASSY LC247 Powerhead lid and hinge HUS-593124301
...
4
NEEDS DESCRIPTION Motor control box HUS-593132601
...
6
ENGINE HOOD ASSY POWER UNIT LC Power unit cover HUS-593203901
...
9
NEEDS DESCRIPTION handle HUS-593722801

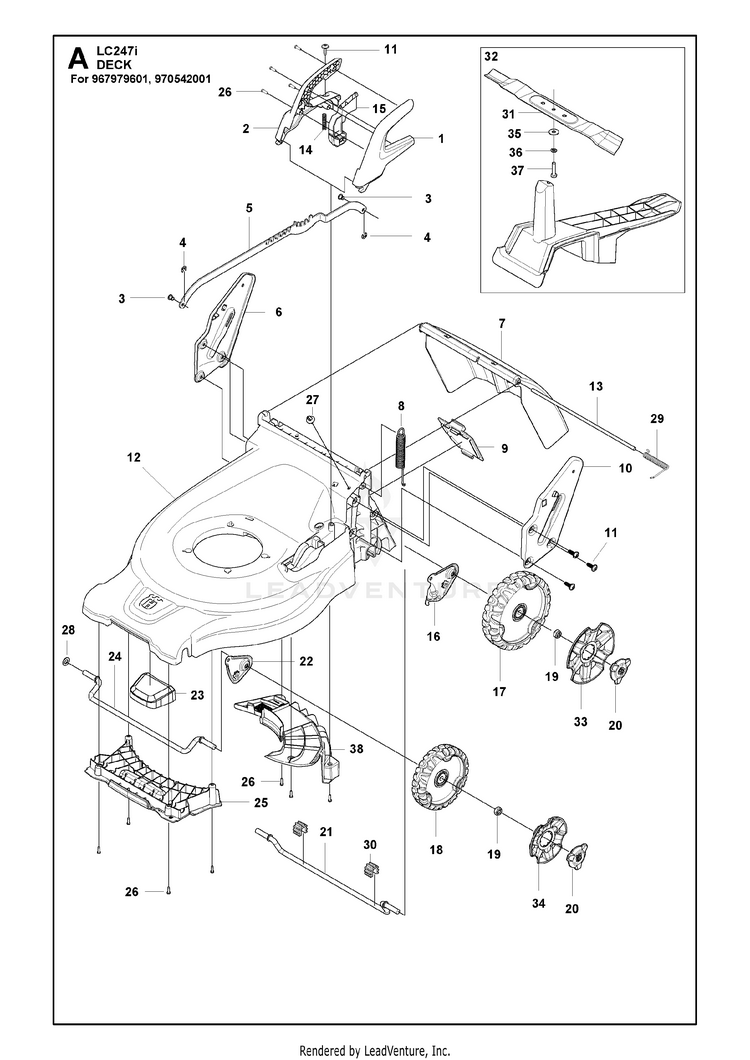

MOWER DECK / CUTTING DECK

...
...
14
NEEDS DESCRIPTION HA Button HUS-589597601
...
13
NEEDS DESCRIPTION HUS-586984601
...
4
Retaining Ring 7x0.9 St PP,SHAFTS HUS-735311220
...
19
NEEDS DESCRIPTION Lock, M12x10 HUS-587990901
...
22
NEEDS DESCRIPTION Front idler 170 HUS-587072401
...
8
NEEDS DESCRIPTION 47 cm,Balance - Suspension HUS-587674401
...
38
NEEDS DESCRIPTION HUS-590800401
...
2
NEEDS DESCRIPTION Husqvarna,Suspension - Right - Height adjustment HUS-587203801
...
6
NEEDS DESCRIPTION right HUS-587212302
...
1
NEEDS DESCRIPTION Husqvarna,Suspension - Left - Height adjustment HUS-587203701
...
10
NEEDS DESCRIPTION left HUS-587212102
...
32
NEEDS DESCRIPTION Mulch plug and combi blade HUS-590790901
...
15
NEEDS DESCRIPTION ASSY - Suspension - Height adjustment HUS-587697401
...
31
NEEDS DESCRIPTION 47cm, Incl bolt & washers, Mulch HUS-590701010
...
7
NEEDS DESCRIPTION HVA,rear discharge HUS-590594001
...
24
NEEDS DESCRIPTION Front 47 cm,Suspension HUS-587072602
...
21
NEEDS DESCRIPTION Rear 47 cm,Suspension HUS-587072601
...
16
NEEDS DESCRIPTION Rear idler 210 HUS-587674301
...
27
NEEDS DESCRIPTION FIR TREE 170x5 HUS-579317401
...
11
NEEDS DESCRIPTION 8x24, TBO,For Thermoplastics HUS-578175802
...
37
SCREW M8x30 8.8 ZPB HUS-725245571
...
28
Washers 12/22/2 FZB ISO7089 HUS-577092801
...
20
NUT CAP Nut cap HUS-584159401
...
17
NEEDS DESCRIPTION Husqvarna, With Sleeve,210, idle, medium HUS-584611603
...
12
NEEDS DESCRIPTION Husqvarna,47 cm HUS-587151005
...
33
HUB CAP Wheel Ø210mm HUS-584159301
...
36
SPRING WASHER Spring washer HUS-579684201
...
18
NEEDS DESCRIPTION Husqvarna,170, Idler HUS-587631501
...
29
NEEDS DESCRIPTION hatch HUS-587101501
...
30
NEEDS DESCRIPTION Push, 47 cm HUS-583055001
...
3
NEEDS DESCRIPTION Suspension HUS-587687001
...
9
NEEDS DESCRIPTION Service door HUS-587095402
...
26
SCREW ITXPANT T50X16 ZN/FE (A T50x16 Zn/Fe (A009) HUS-502435301
...
34
NEEDS DESCRIPTION Wheel Ø170mm HUS-587632701
...
25
NEEDS DESCRIPTION Husqvarna,Front HUS-588202701
...
35
SPACER Washer HUS-734116441
...
5
NEEDS DESCRIPTION Suspension 170/210 HUS-587160801
