Husqvarna LC 153S Walk Behind Mower

Model: LC 153S

Save Part Not Listed?
product name

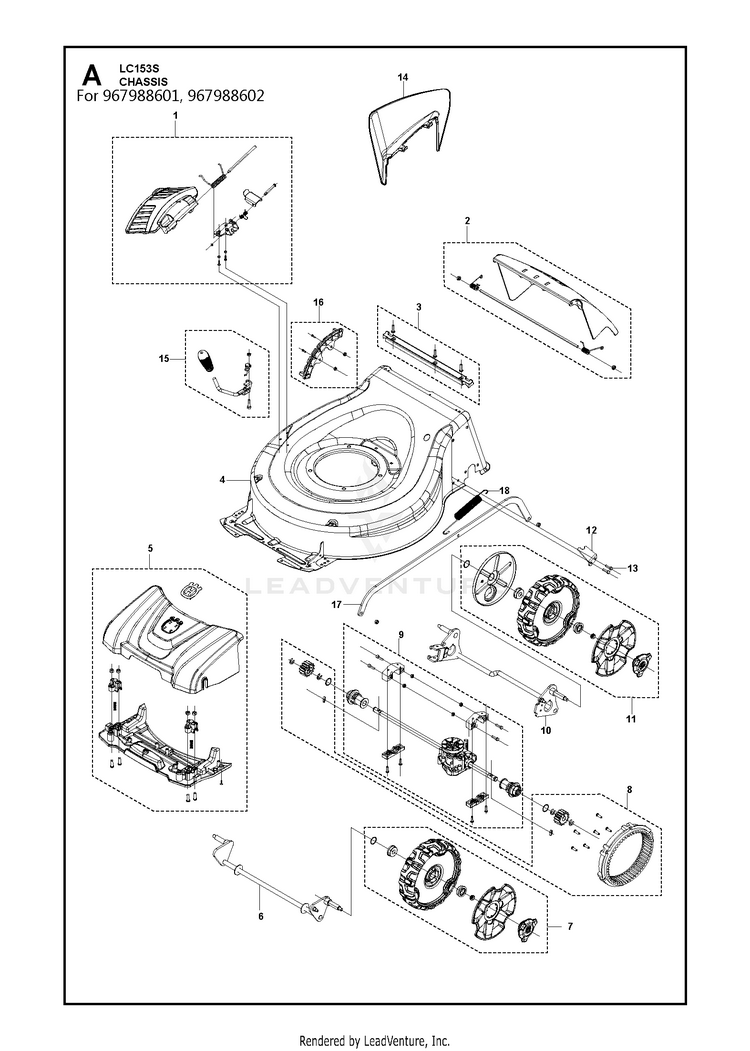

CHASSIS

...
...
15
NEEDS DESCRIPTION HEIGHT ADJUSTMENT HANDLE HUS-599139101
...
12
NEEDS DESCRIPTION LOCATION PLATE HUS-598860801
...
18
NEEDS DESCRIPTION tension spring of connecting rod HUS-599138901
...
1
NEEDS DESCRIPTION SIDE DISCHARGE PLATE HUS-598684111
...
9
Transmissions HUS-598513701
...
8
NEEDS DESCRIPTION WHEEL DRIVE HUS-598684117
...
2
NEEDS DESCRIPTION REAR DOOR HUS-598684119
...
7
Wheels FRONT WHEEL HUS-598512901
...
6
NEEDS DESCRIPTION WHEEL AXLE HUS-598818701
...
16
NEEDS DESCRIPTION HEIGHT ADJUSTMENT PLATE HUS-599139001
...
10
NEEDS DESCRIPTION WHEEL AXLE HUS-598684109
...
13
NEEDS DESCRIPTION Hexagonal flange bolt HUS-598861301
...
17
NEEDS DESCRIPTION connecting rod HUS-599138801
...
11
NEEDS DESCRIPTION REAR WHEEL W/O COG WHEEL (POS. 8) HUS-598684103
...
4
NEEDS DESCRIPTION chassis HUS-598861201
...
14
NEEDS DESCRIPTION SIDE DISCHARGE PROTECTIVE COVER HUS-598819001
...
5
NEEDS DESCRIPTION FRONT COVER HUS-598684122
...
3
Seals SEALING PLATE HUS-598684128

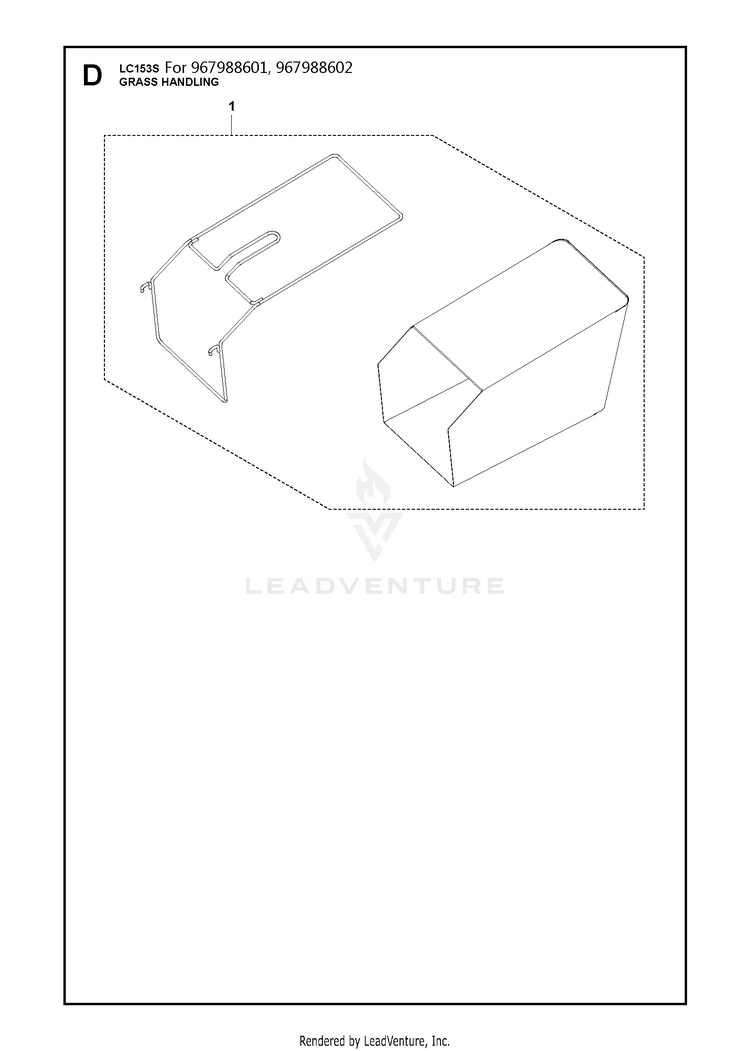

COLLECTOR

...
...
1
NEEDS DESCRIPTION GRASS BAG KIT HUS-598684121

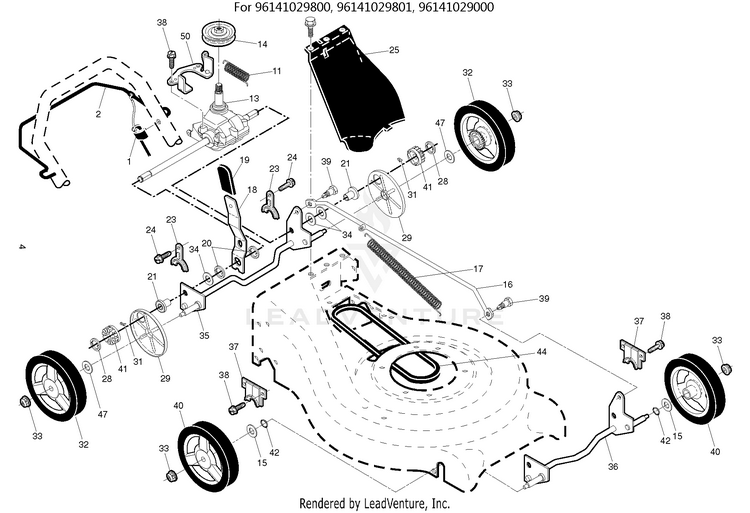

DRIVE

...
...
16
ROD.CONNECTING.SPT.BLACK HUS-532407147
...
13
TRANSMISSION.21.RWGD HUS-532419213
...
44
BELT V3L 35.42, CLUTCHING COVE HUS-580364611
...
34
WASHER HUS-532851226
...
28
E-RING 7/16 RE HUS-812000058
...
20
E-RING HUS-812000022
...
37
RETAINER.FRONT.SHAFT HUS-532161463
...
24
SCREW 14-20 X 5/8 HUS-817060410
...
32
WHEEL.8X1.75.3SPK.RAD3.GREY HUS-581685101
...
47
WASHER FLUT HUS-532067725
...
35
SHAFT.ASM.REAR.TORQUE.BZP.8 HUS-532403102
...
40
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 HUS-532401273
...
50
BRACKET.BELT.KEEPE/AUTO.SS.BZP HUS-583742001
...
25
COVER.DRIVE.21.RWGD.MO HUS-532400783
...
36
SHAFT.ASM.FRONT.TORQUE.BZP. HUS-532407175
...
2
BAIL.CURVED.UNDER.BAIL.BLACK HUS-585123102
...
18
SPRING.SELECTOR.SPT.21.BZP HUS-532418835
...
17
SPRING EXTENSION HUS-532409616
...
15
WASHER.FLAT.1/2 HUS-532088348
...
23
RETAINER DRIVE ASM. STMP. HUS-532161118
...
42
O-RING..070X.487.NEOPRENE HUS-532197480
...
1
CABLE.DR.21.RWGD.S.SPEED.MCCL HUS-585040801
...
38
SCREW HUS-532163409
...
33
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
21
BEARING.ASM.RGD.AUTO.SP HUS-532404838
...
29
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
14
PULLEY.RGD.SS.3.25OP HUS-532405703
...
31
PAWL, DRIVE HUS-532404845
...
19
KNOB.EXT.ERGO.BLACK HUS-532190069
...
41
PINIION.14.TOOTH.RGD HUS-532404835
...
11
SPRING HUS-532406558
...
39
SHOULDER BOLT SEMI GIMLET PT. HUS-532407059

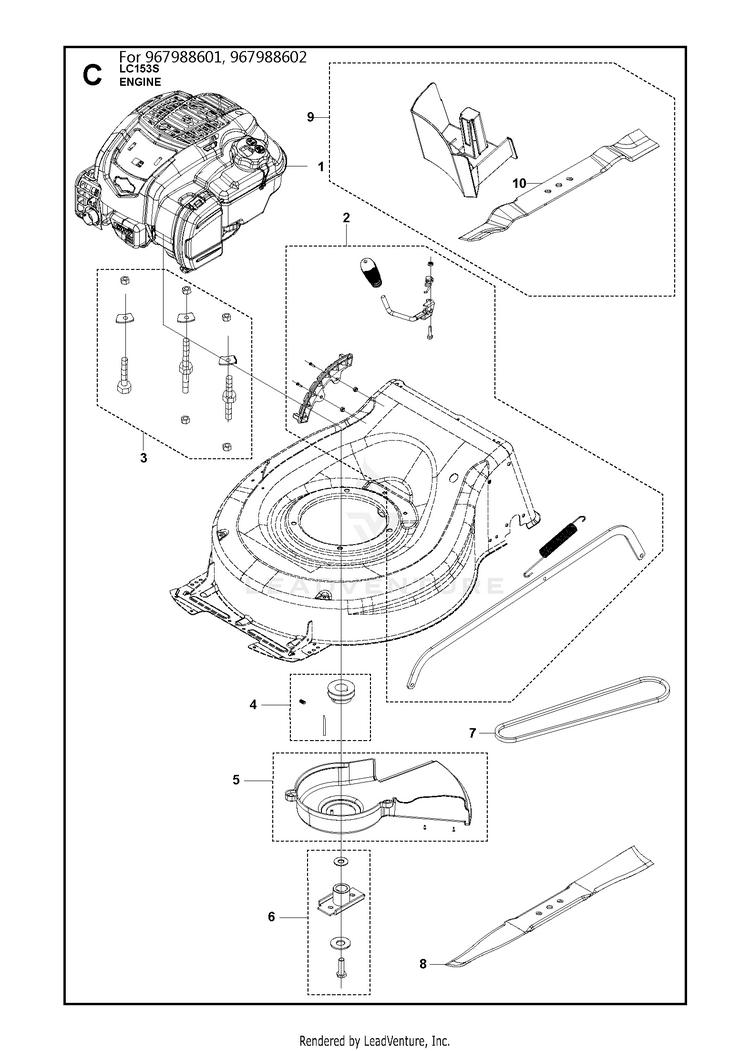

ENGINE

...
...
5
Covers BELT COVER HUS-598513501
...
6
NEEDS DESCRIPTION BLADE ADAPTER HUS-598684105
...
10
Blades Mulch blade HUS-597683901
...
2
NEEDS DESCRIPTION HEIGHT ADJUSTER HUS-598684107
...
9
NEEDS DESCRIPTION MULCHING KIT HUS-598018001
...
3
NEEDS DESCRIPTION BOLTS AND NUTS HUS-598742601
...
4
NEEDS DESCRIPTION DRIVE PULLEY HUS-598684101
...
8
NEEDS DESCRIPTION Collect blade HUS-598562601
...
7
NEEDS DESCRIPTION belt HUS-598974001

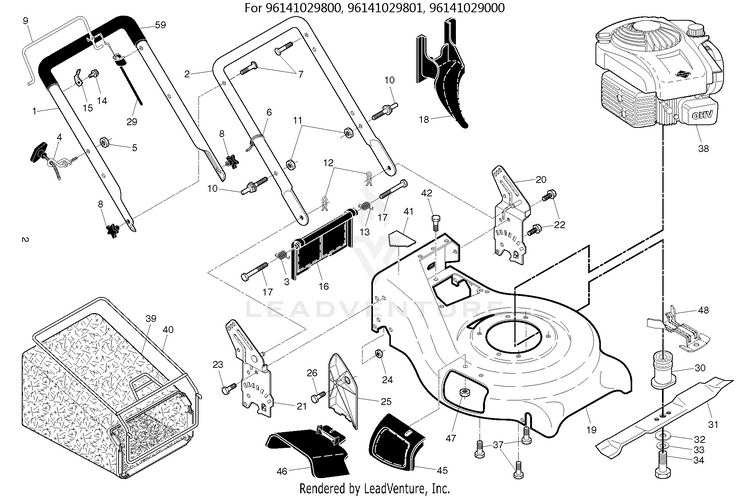

FRAME & ENGINE

...
...
30
BLADE ADAPTER PULLEY For 96141029801, 96141029800 HUS-532195963
...
33
Washers HUS-596238701
...
23
Screws HUS-596031601
...
34
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
1
HANDLE.ASM.UP.BS.PU/SS.GRP.GRE For 96141029000 HUS-580638708
...
59
GRIP, FOAM For 96141029000 HUS-532186362
...
9
BAIL.CONTROL.MZR.BS.ORANGE HUS-532426812
...
30
ADAPTER.BLADE/PULLEY.25M For 96141029000 HUS-532421176
...
32
WASHER,HARDEN HUS-532851074
...
13
SPRING.LH.REAR.DOOR.21.RWGD LH HUS-532405415
...
45
DOOR.ASM.MULCH.21.RWD HUS-532183058
...
42
SCREW 14-20 X 5/8 HUS-817060410
...
21
BRACKET.HNDL.ASM.21.RWGD.RT.OR RH HUS-532418251
...
14
SCREW HUS-532178848
...
4
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
15
BRACKET.UPSTOP.RT HUS-532430034
...
24
Hardware HUS-596040501
...
19
KIT.HSG.21.AW/VS.RGD.MC.BLK.CE HUS-583320001
...
38
B&S 93J02-0078-H1 FOR SERVICE & PARTS 1-800-233-3723 HUS-000000000
...
2
HANDLE.LOWER.21.GREY HUS-532197202
...
31
BLADE.21.PUSH HUS-532199377
...
3
SPRING.RH.REAR.DOOR.21.RWGD RH HUS-532405416
...
6
WIRE TIE HUS-532007192
...
12
HAIRPIN COTTER HUS-532051793
...
16
DOOR.REAR.21.RWGD.498 HUS-584395901
...
37
BOLT 3/8-16X1-1/8 HUS-532150406
...
18
PLUG.MULCHER.RGD.21. HUS-532198170
...
46
DEFLECTOR.21.MCUT.RWGD.GRAY HUS-532169699
...
5
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
20
BRACKET.HNDL.ASM.21.RWGD.LT.OR LH HUS-532418239
...
17
BOLT HUS-532184193
...
8
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
25
CLIPPING DEFLECTOR HUS-532161333
...
40
FRAME.GBAG.21.RWGD.SC HUS-532411951
...
1
HANDLE.ASM.UP.BS.PU/SS.GRP.498 For 96141029801, 96141029800. Includes foam grip. HUS-580638713
...
7
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
47
NUT HUS-532088349
...
39
GBAG.93230010.BLK.GEN HUS-581002901
...
10
BOLT HUS-532188821
...
11
NUT.LOCK.5/16-18 HUS-532751153
...
29
CABLE.MZR.RGD.22.B&S/HON.ERGO HUS-532440386
...
48
BRACKET.ENG/BELTKEEPER.BZP HUS-532429001
...
41
DECAL.CUTFINGER.CE.02 HUS-581579101
...
22
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
26
SCREW HUS-532163409

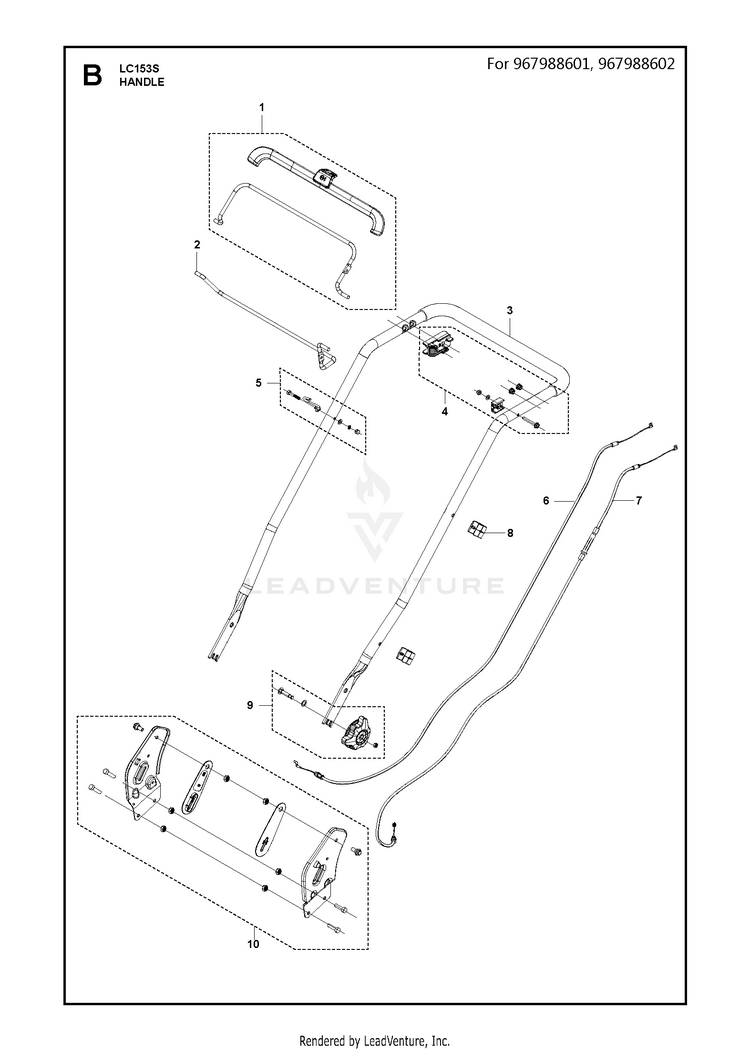

HANDLE

...
...
3
NEEDS DESCRIPTION HANDLE AND SHEATH HUS-598722001
...
8
NEEDS DESCRIPTION cable clamp HUS-598861401
...
10
NEEDS DESCRIPTION HANDLE BRACKET HUS-598684113
...
1
NEEDS DESCRIPTION BAIL ARM HUS-598818201
...
9
NEEDS DESCRIPTION KNOB HUS-598684125
...
6
NEEDS DESCRIPTION choke cable assy HUS-598861501
...
4
NEEDS DESCRIPTION BAIL ARM HUS-598684129
...
7
NEEDS DESCRIPTION DRIVE CABLE ASSY HUS-598861601
...
2
NEEDS DESCRIPTION drive rod HUS-598861901
...
5
NEEDS DESCRIPTION HANDLE HUS-598825601
