Husqvarna LC 153P - 967988501 (2019-11) Walk Behind Mower

Model: LC 153P - 967988501 (2019-11)

Save Part Not Listed?
product name

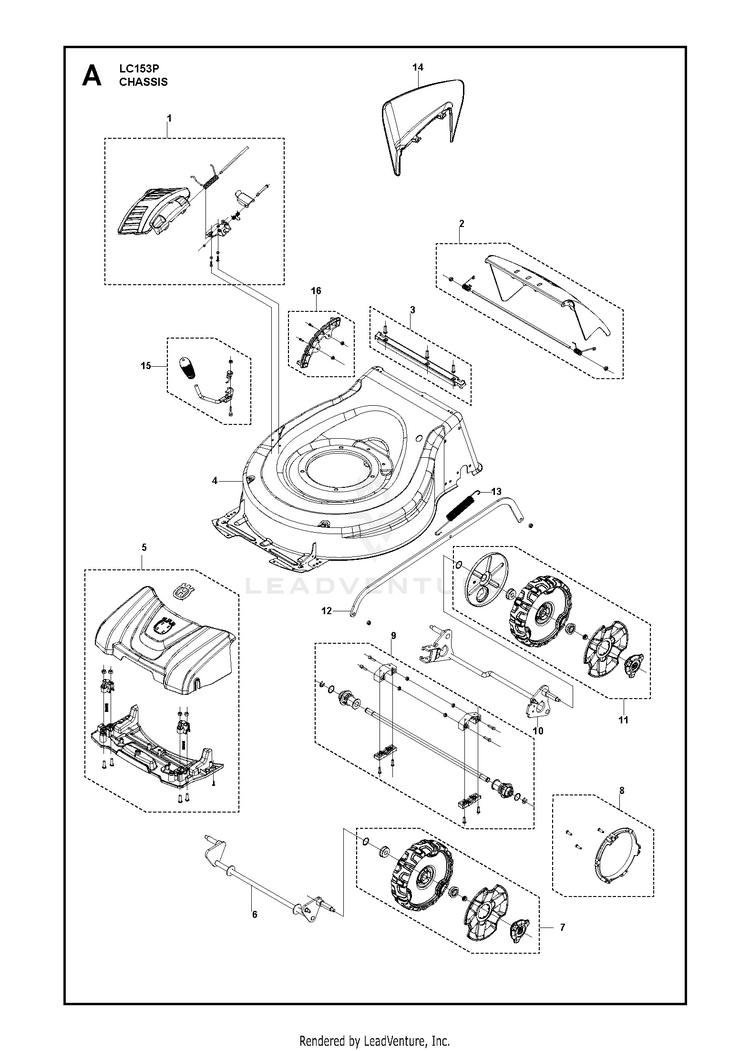

CHASSIS

...
...
13
NEEDS DESCRIPTION tension spring of connecting rod HUS-599138901
...
5
NEEDS DESCRIPTION FRONT COVER HUS-598684122
...
15
NEEDS DESCRIPTION HEIGHT ADJUSTMENT HANDLE HUS-599139101
...
12
NEEDS DESCRIPTION connecting rod HUS-599138801
...
1
NEEDS DESCRIPTION SIDE DISCHARGE PLATE HUS-598684111
...
3
Seals SEALING PLATE HUS-598684128
...
4
NEEDS DESCRIPTION chassis HUS-598861201
...
11
NEEDS DESCRIPTION FRONT WHEEL HUS-598684103
...
8
NEEDS DESCRIPTION DUST-PROOF RING HUS-598721701
...
10
NEEDS DESCRIPTION WHEEL AXLE HUS-598684109
...
7
Wheels FRONT WHEEL HUS-598512901
...
16
NEEDS DESCRIPTION HEIGHT ADJUSTMENT PLATE HUS-599139001
...
2
NEEDS DESCRIPTION REAR DOOR HUS-598684119
...
9
Axles REAR SHAFT HUS-598513301
...
6
NEEDS DESCRIPTION WHEEL AXLE HUS-598818701
...
14
NEEDS DESCRIPTION SIDE DISCHARGE PROTECTIVE COVER HUS-598819001

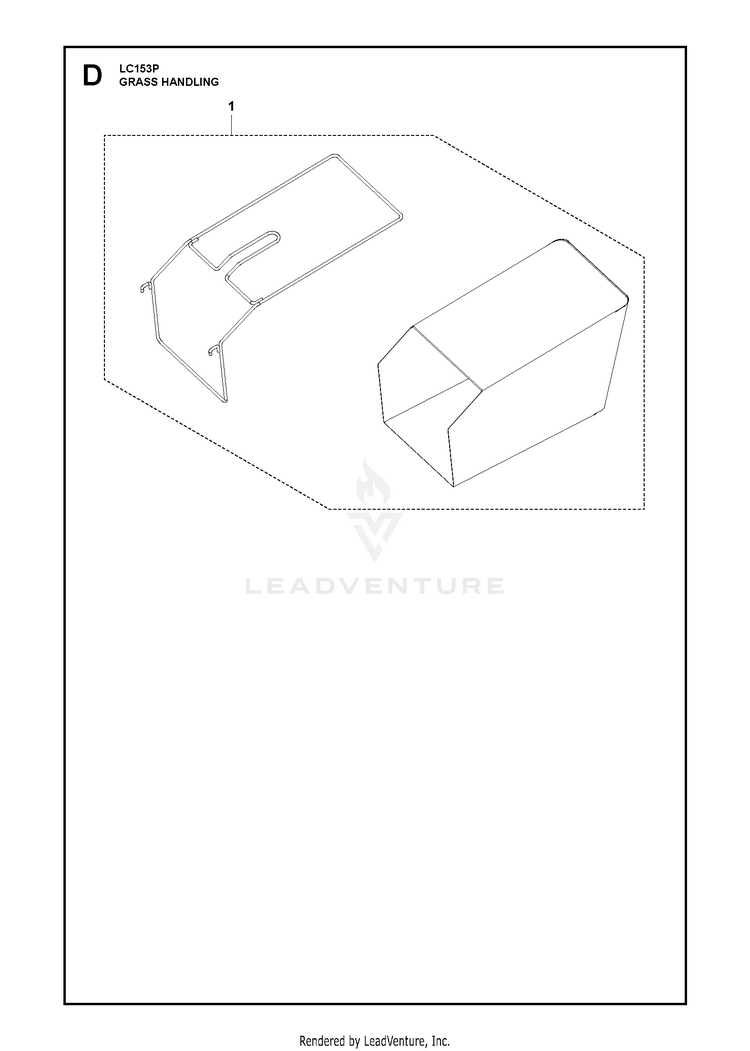

COLLECTOR

...
...
1
NEEDS DESCRIPTION GRASS BAG KIT HUS-598684121

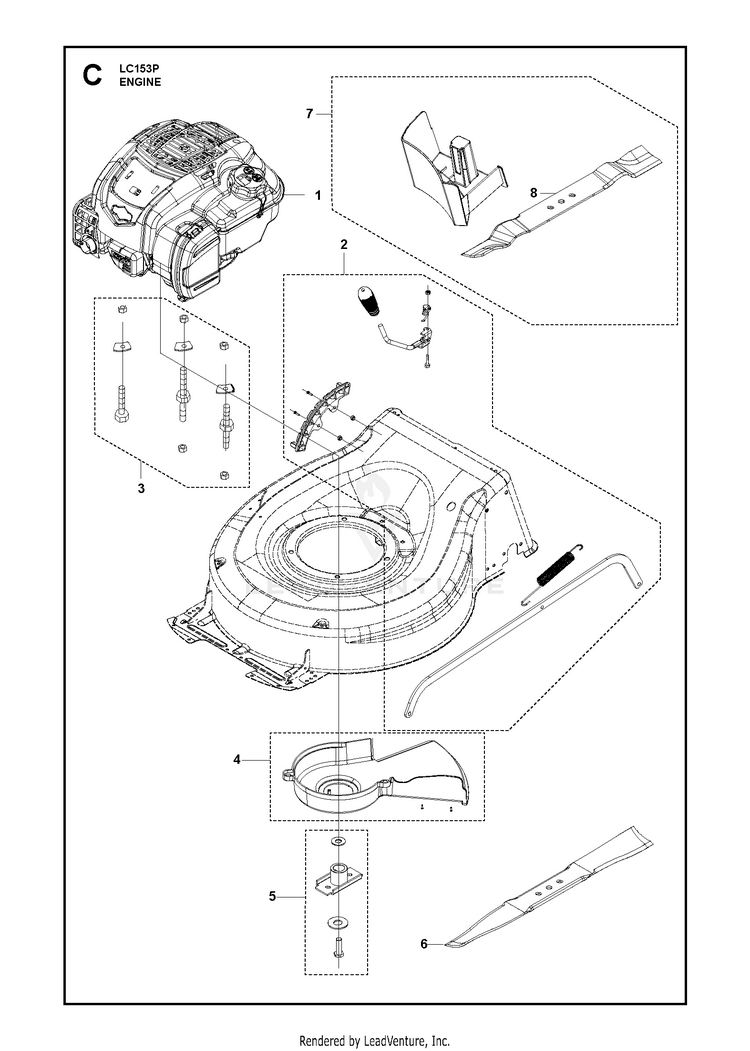

ENGINE

...
...
6
NEEDS DESCRIPTION Collect blade HUS-598562601
...
2
NEEDS DESCRIPTION HEIGHT ADJUSTER HUS-598684107
...
5
NEEDS DESCRIPTION BLADE ADAPTER HUS-598684105
...
7
NEEDS DESCRIPTION MULCHING KIT HUS-598018001
...
8
Blades Mulch blade HUS-597683901
...
3
NEEDS DESCRIPTION BOLTS AND NUTS HUS-598742601
...
4
Covers BELT COVER HUS-598513501

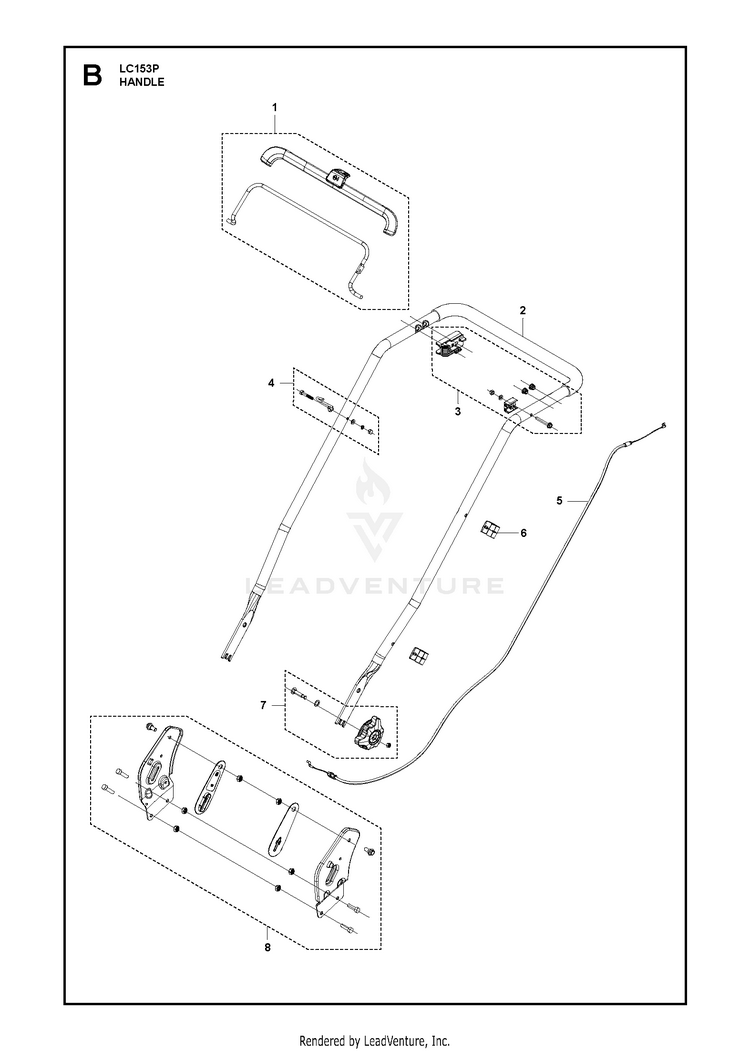

HANDLE

...
...
5
NEEDS DESCRIPTION choke cable assy HUS-598861501
...
3
NEEDS DESCRIPTION BAIL ARM HUS-598684129
...
8
NEEDS DESCRIPTION HANDLE BRACKET HUS-598684113
...
4
NEEDS DESCRIPTION HANDLE HUS-598825601
...
1
NEEDS DESCRIPTION BAIL ARM HUS-598818201
...
7
NEEDS DESCRIPTION KNOB HUS-598684125
...
6
NEEDS DESCRIPTION cable clamp HUS-598861401
...
2
NEEDS DESCRIPTION HANDLE AND SHEATH HUS-598722001
