Husqvarna LC 141VLi - 967099201 (2016-09) Walk Behind Mower

Model: LC 141VLi - 967099201 (2016-09)

Save Part Not Listed?
product name

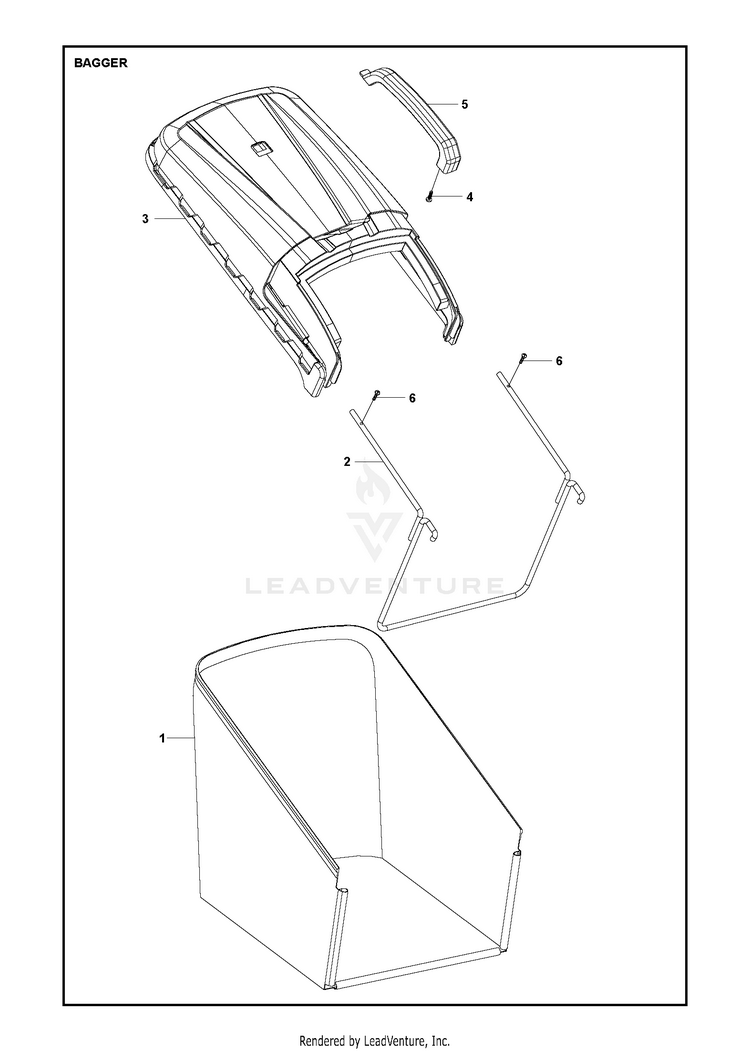

BAGGER

...
...
1
GRASSBAG #25100173001 HUS-587586301
...
6
SCREW HUS-579686701
...
5
HANDLE #25341800101 HUS-587586101
...
2
BRACKET #26300299201 HUS-587911801
...
4
SCREW ST4.8*19,GB845 #26800104 HUS-587912301
...
3
COVER GRASS CATCHER #253417001 HUS-587586001

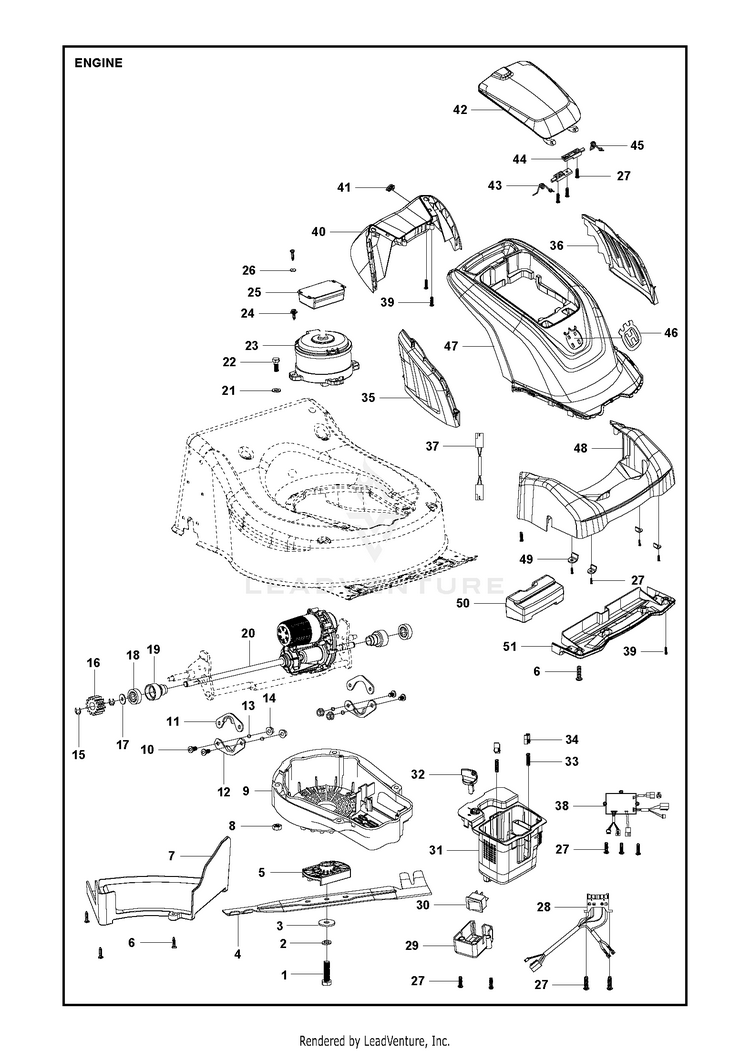

ENGINE

...
...
31
BOX BATTERY BOX HUS-501489602
...
32
KEY HUS-501490101
...
51
COVER FRONT HANDLE (UNDER SIDE HUS-501489501
...
41
WIRE HUS-579687101
...
8
NUT LOCKING HUS-579685801
...
21
WASHER HUS-579686001
...
25
NEEDS DESCRIPTION Use in models after S/N 20191500001 HUS-598764502
...
48
COVER FRONT COVER HUS-501488901
...
22
BOLT HUS-579686101
...
43
TORSION SPRING HUS-579687701
...
3
WASHER HUS-579684301
...
47
COVER MOTOR COVER HUS-501488401
...
45
TORSION SPRING LEFT HUS-579687801
...
24
SCREW HUS-579686301
...
29
PLATE HUS-579686801
...
13
O-RING #25100175201 HUS-587992501
...
1
BOLT HUS-579684101
...
38
PRINTED CIRCUIT ASSY SEL-PROPE HUS-589759302
...
39
SCREW HUS-579686701
...
5
BLADE SUPPORT HUS-579684501
...
49
WASHER HUS-579687601
...
36
COVER LEFT AIR WINDOW PLATE HUS-501488501
...
26
WASHER HUS-579686501
...
14
LOCK NUT M6,GB/T6187.1-2000 #2 HUS-587913401
...
19
BEARING HOUSING #26900211501 HUS-587915501
...
37
LINE CONNECTING # 27100124701 HUS-589759201
...
11
FIXING PLATE #26300314601 HUS-587992401
...
2
SPRING WASHER HUS-579684201
...
23
NEEDS DESCRIPTION Use in models after S/N 20191500001 HUS-598764302
...
20
GEARBOX ASSY #23050206401 HUS-589758001
...
50
WEIGHT # 25100184101 HUS-579843901
...
7
COVER LOW PROTECT # 2106100379 HUS-582894901
...
30
KEY SWITCH HUS-579686901
...
9
HOLDER HUS-579685901
...
44
HINGE BATTERY LID HINGE HUS-501489801
...
35
COVER RIGHT AIR WINDOW PLATE HUS-501488701
...
23
NEEDS DESCRIPTION 800W, 36V HUS-598764301
...
42
COVER BATTERY LID HUS-501488301
...
27
SCREW HUS-579685501
...
6
SCREW HUS-579687501
...
17
WASHER φ12.8*φ20*0.8 #268007 HUS-587914501
...
46
DECAL LOGO HUS-501489101
...
10
SCREW M6*16 #26800204601 HUS-587912601
...
18
BEARING HUS-587913001
...
25
NEEDS DESCRIPTION HUS-598764501
...
4
Blades HUS-501171610
...
12
FIXING PLATE #26300124401 HUS-587910901
...
40
COVER BACK COVER HUS-501488801
...
38
NEEDS DESCRIPTION Use in models after S/N 20191500001 HUS-589759303
...
28
NEEDS DESCRIPTION HUS-579686601
...
16
GEAR #26900215601 HUS-589757901
...
15
WASHER φ9,GB896 #26800900201 HUS-587914701
...
33
SPRING HUS-579687001
...
34
CAP COMPRESSION SPRING CAP HUS-501490201

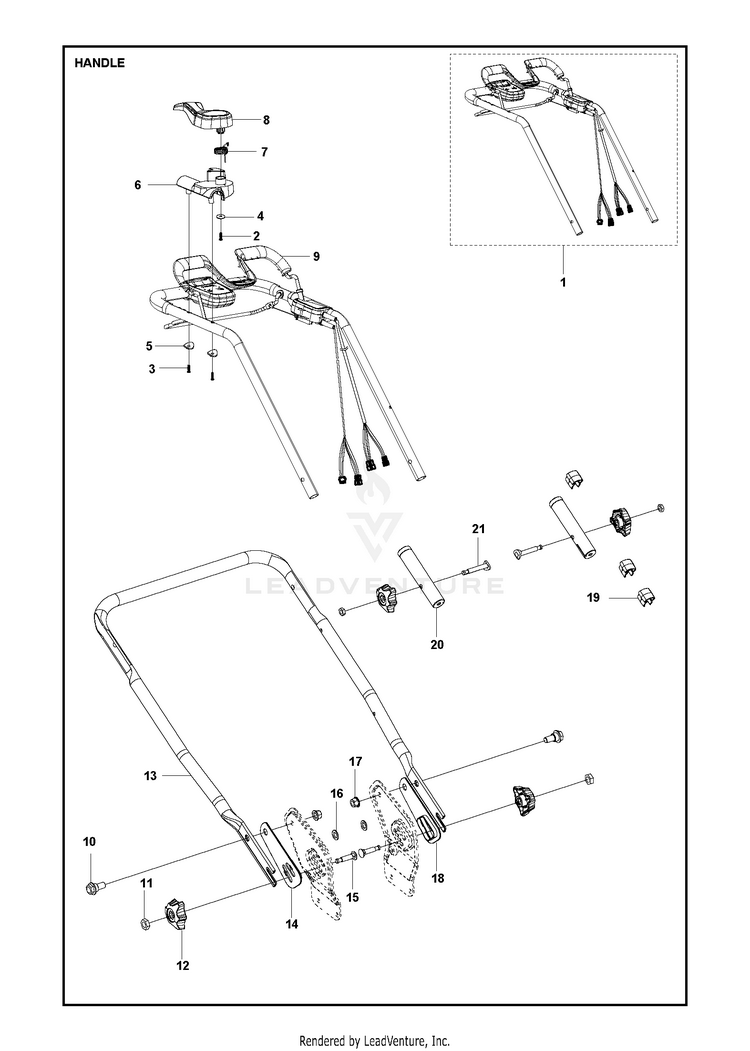

HANDLE

...
...
4
WASHER HUS-579686501
...
21
BOLT HUS-502402101
...
8
COVER BAIL STOP SOLUTION HUS-501490401
...
11
HEXAGON NUT #26800502301 HUS-587913301
...
13
HANDLEBAR LOWER HUS-579688001
...
5
WASHER HUS-579688701
...
19
HOLDER CABLE HUS-501055701
...
7
TORSION SPRING HUS-579688801
...
12
KNOB #25341500101 HUS-587585801
...
14
PLATE RIGHT HUS-501055601
...
16
SPACER RING HUS-502258701
...
15
BOLT HUS-502259901
...
2
SCREW HUS-579686701
...
1
HANDLE KIT DAYE# 90000305301 HUS-589969901
...
6
HOLDER BAIL STOP SOLUTION HOLD HUS-501490301
...
10
BOLT HUS-502429901
...
18
PLATE LEFT HUS-501055501
...
3
SCREW HUS-579687501
...
20
COVER HUS-501055401
...
9
COVER BAIL ARM COVER HUS-501491301
...
17
LOCKING BOLT M8,GB6187.1 #2680 HUS-587913501

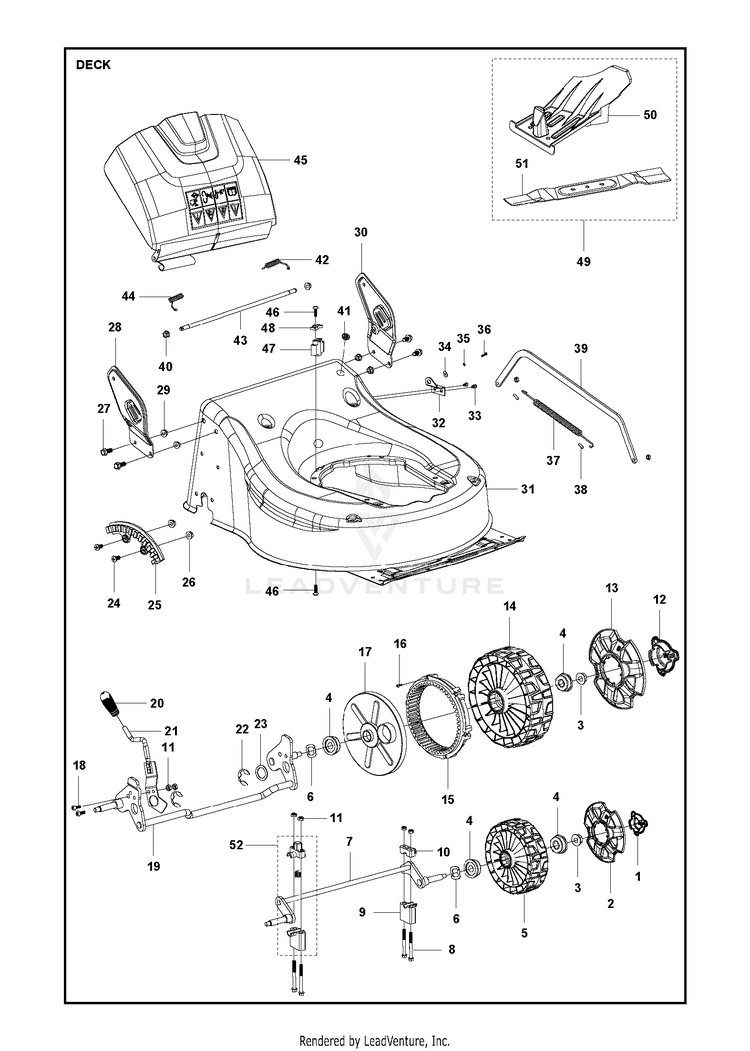

MOWER DECK / CUTTING DECK

...
...
31
CHASSIS # 21062009970013A HUS-589758101
...
2
COVER 7 WHEEL COVER HUS-501491501
...
5
WHEEL ASSY 7 WHEEL HUS-501491601
...
15
GEAR WHEEL #25229900201 HUS-587910101
...
25
SEGMENT #25214200102 HUS-587909901
...
26
NUT HUS-579685201
...
43
ROD HUS-502231001
...
41
COVER #25217800104 HUS-587910001
...
17
COVER #25342800101 HUS-587586201
...
27
BOLT M8*16 #26800606401 HUS-587913901
...
29
NUT HUS-579687901
...
36
SCREW TAPPING # A26800105402 HUS-589759101
...
37
SPRING #26801103903 HUS-587914901
...
44
SPRING #26801125501 HUS-587915101
...
34
WASHER # A26800700901 HUS-589758401
...
32
GUIDE PLATE # 26300360001 HUS-589758201
...
50
PLUG MULCHING HUS-582895101
...
42
BRACKET #26801125401 HUS-587915001
...
7
FRONT AXLE ASSY HUS-579684801
...
14
WHEEL 8" #25341200101 HUS-587585501
...
38
TUBING #29000300101 HUS-587915801
...
28
BRACKET RH HUS-501054401
...
4
BEARING HUS-587912901
...
21
HANDLE ASSY HUS-502502701
...
30
BRACKET LEFT HUS-579688101
...
49
NEEDS DESCRIPTION HUS-582872801
...
33
BOLT M6*12,(GB5787-86)GB6674.1 HUS-587914101
...
45
FLAP REAR # 2100X03758 HUS-589760401
...
18
WASHER M6*14 #26800203001 HUS-587912701
...
19
SHAFT ASSY REAR #26300298401 HUS-589757801
...
52
NEEDS DESCRIPTION HUS-597681001
...
3
LOCKING BOLT M8,GB6187.1 #2680 HUS-587913501
...
1
WHEEL COVER 6" #25340700101 HUS-587585001
...
8
BOLT HUS-579684601
...
16
NEEDS DESCRIPTION HUS-587912101
...
51
BLADE 26300349801 HUS-579856901
...
23
WASHER #26300107601 HUS-587910801
...
11
LOCKING BOLT M6,GB889.1 #26800 HUS-587913101
...
39
CONNECTING ROD HUS-579685301
...
12
WHEEL COVER 8" #25341000101 HUS-587585101
...
22
WASHER φ19*1.5,GB896 #2680090 HUS-587914801
...
10
SUPPORT HUS-579684901
...
20
KNOB HEIGHT ADJUSTMENT #25341 HUS-587585701
...
35
SPRING WASHER # A26800800402 HUS-589759001
...
9
SUPPORT HUS-579684701
...
6
WASHER φ12 #26800706202 HUS-587914601
...
24
BOLT HUS-579685101
...
13
WHEEL COVER 8" #25341100101 HUS-587585301
...
48
PLATE HUS-579685701
...
40
LOCK NUT M6,GB/T6187.1-2000 #2 HUS-587913401
...
46
SCREW HUS-579685501
...
47
HOLDER # 2109100010N HUS-589760501
