Husqvarna LC 140 Walk Behind Mower

Model: LC 140

Back To Assemblies

Save Part Not Listed?
product name

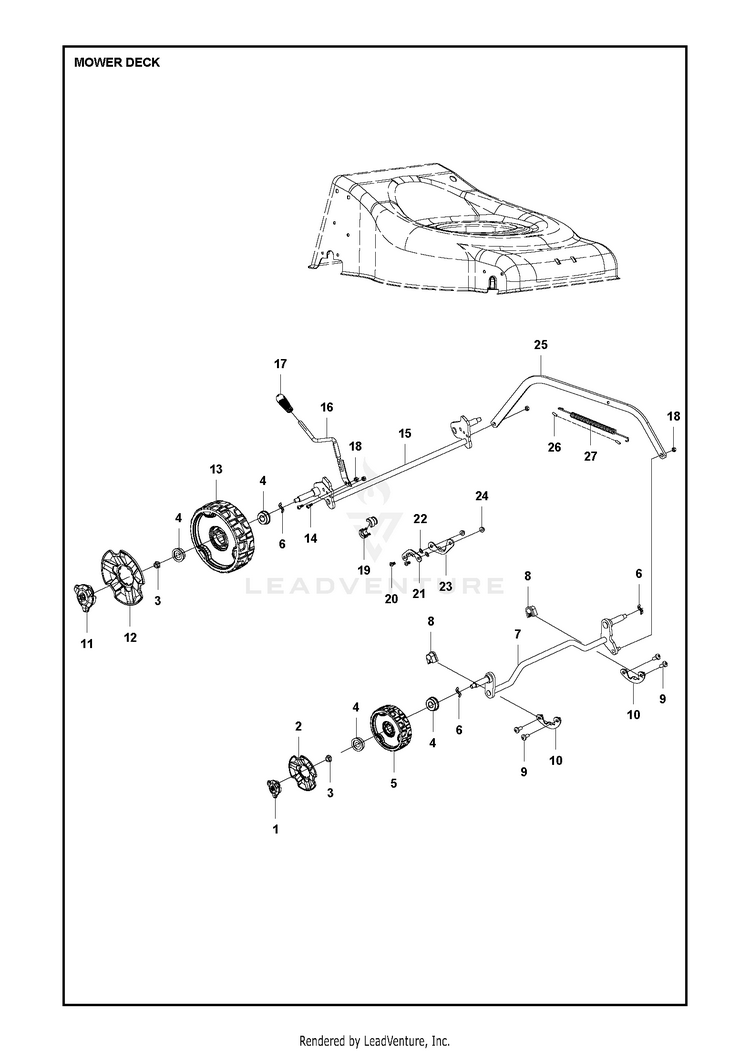

MOWER DECK / CUTTING DECK

...
...
16
HANDLE ASSY HUS-502502701
...
10
NEEDS DESCRIPTION HUS-587911001
...
11
WHEEL COVER 8" #25341000101 HUS-587585101
...
9
NEEDS DESCRIPTION HUS-587912501
...
3
LOCKING BOLT M8,GB6187.1 #2680 HUS-587913501
...
23
FIXING PLATE #26300124401 HUS-587910901
...
25
NEEDS DESCRIPTION HUS-502230601
...
26
TUBING #29000300101 HUS-587915801
...
7
NEEDS DESCRIPTION HUS-587911501
...
13
WHEEL #25341300101 HUS-587918001
...
12
WHEEL COVER 8" #25341100101 HUS-587585301
...
21
FIXING PLATE #26300314601 HUS-587992401
...
4
BEARING HUS-587912901
...
2
NEEDS DESCRIPTION HUS-587585201
...
17
KNOB HEIGHT ADJUSTMENT #25341 HUS-587585701
...
1
WHEEL COVER 6" #25340700101 HUS-587585001
...
20
SCREW M6*16 #26800204601 HUS-587912601
...
27
SPRING #26801103903 HUS-587914901
...
19
COVER AXLE #25235300101 HUS-587917901
...
18
LOCKING BOLT M6,GB889.1 #26800 HUS-587913101
...
24
LOCK NUT M6,GB/T6187.1-2000 #2 HUS-587913401
...
5
NEEDS DESCRIPTION HUS-587585401
...
22
O-RING #25100175201 HUS-587992501
...
8
NEEDS DESCRIPTION HUS-587909701
...
15
NEEDS DESCRIPTION HUS-587918101
...
14
WASHER M6*14 #26800203001 HUS-587912701
...
6
WASHER φ12 #26800706202 HUS-587914601
