Husqvarna LB 553Se - 967862501 (2019-01) Walk Behind Mower

Model: LB 553Se - 967862501 (2019-01)

Save Part Not Listed?
product name

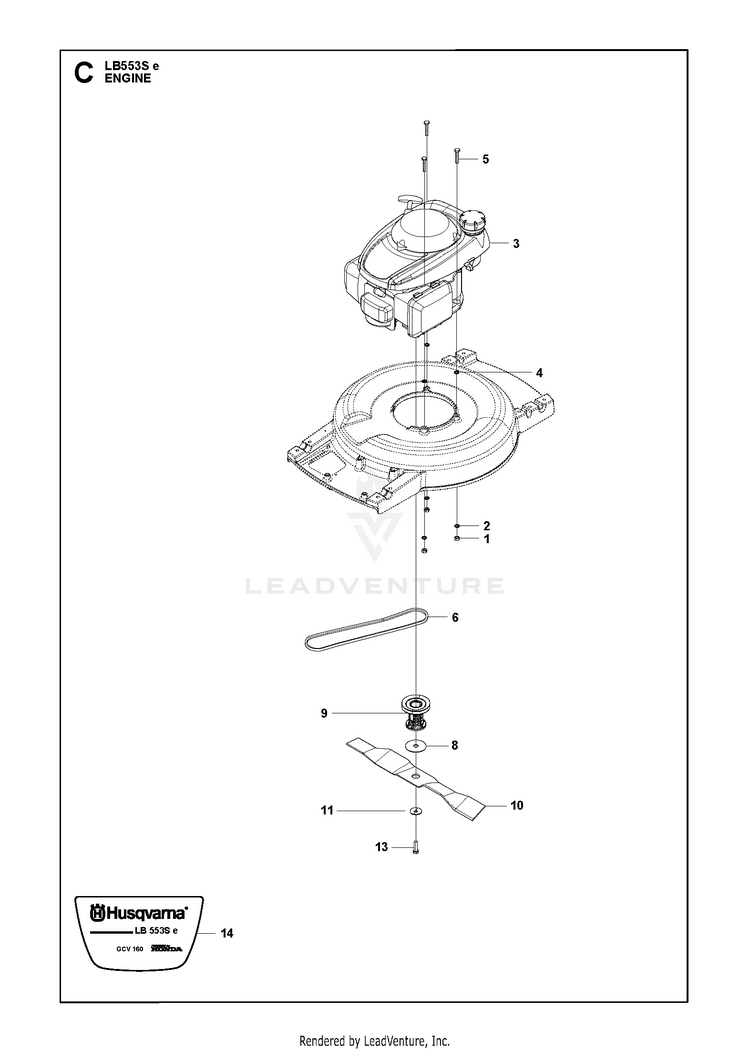

ENGINE

...
...
2
WASHER BRB 8.4X17 HUS-734116401
...
13
NEEDS DESCRIPTION HUS-504456401
...
9
NEEDS DESCRIPTION HUS-501110701
...
11
SPRINGS HUS-503332501
...
4
NEEDS DESCRIPTION HUS-585135401
...
5
SCREW HUS-725246451
...
8
Washers HUS-503259401
...
1
LOCKNUT M8 HUS-732211801
...
3
NEEDS DESCRIPTION GCV170 S3-BL-SD, for warranty only HUS-594911701
...
10
NEEDS DESCRIPTION Kit: 531 00 92-54 (Blade with box) HUS-295673220
...
14
NEEDS DESCRIPTION HUS-585835205
...
6
BELT Kit: 580 86 28-01 (Belt with shell) HUS-589563601

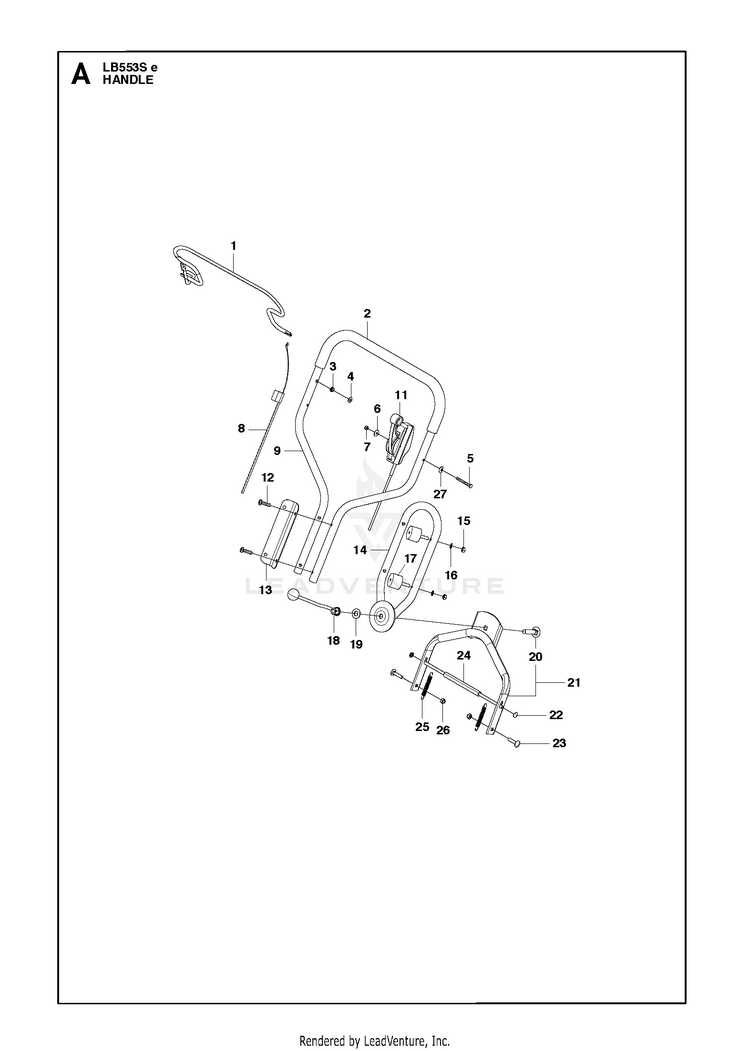

HANDLE

...
...
5
SCREW M6X55 HUS-725238151
...
23
NEEDS DESCRIPTION HUS-727645751
...
3
NEEDS DESCRIPTION HUS-503320901
...
24
NEEDS DESCRIPTION HUS-579413901
...
11
NEEDS DESCRIPTION HUS-586944201
...
21
NEEDS DESCRIPTION HUS-578789901
...
7
NUT FLANGE - M6 HUS-732251601
...
12
NEEDS DESCRIPTION HUS-504461501
...
13
NEEDS DESCRIPTION HUS-503311702
...
17
NEEDS DESCRIPTION HUS-503312502
...
2
NEEDS DESCRIPTION HUS-576641901
...
25
NEEDS DESCRIPTION HUS-579297101
...
8
NEEDS DESCRIPTION HUS-585402005
...
16
NEEDS DESCRIPTION HUS-735216401
...
15
NUT HUS-731231801
...
19
NEEDS DESCRIPTION HUS-504457301
...
14
NEEDS DESCRIPTION HUS-502903502
...
27
HUS-531204961
...
18
NEEDS DESCRIPTION HUS-503298302
...
6
Washers HUS-504459901
...
26
LOCKNUT M8 HUS-732211801
...
20
NEEDS DESCRIPTION HUS-727654351
...
22
WASHER STARLOCK WITH CAP HUS-295680501
...
4
WASHERS HUS-734182051
...
1
NEEDS DESCRIPTION HUS-503311102
...
9
NEEDS DESCRIPTION HUS-502906403

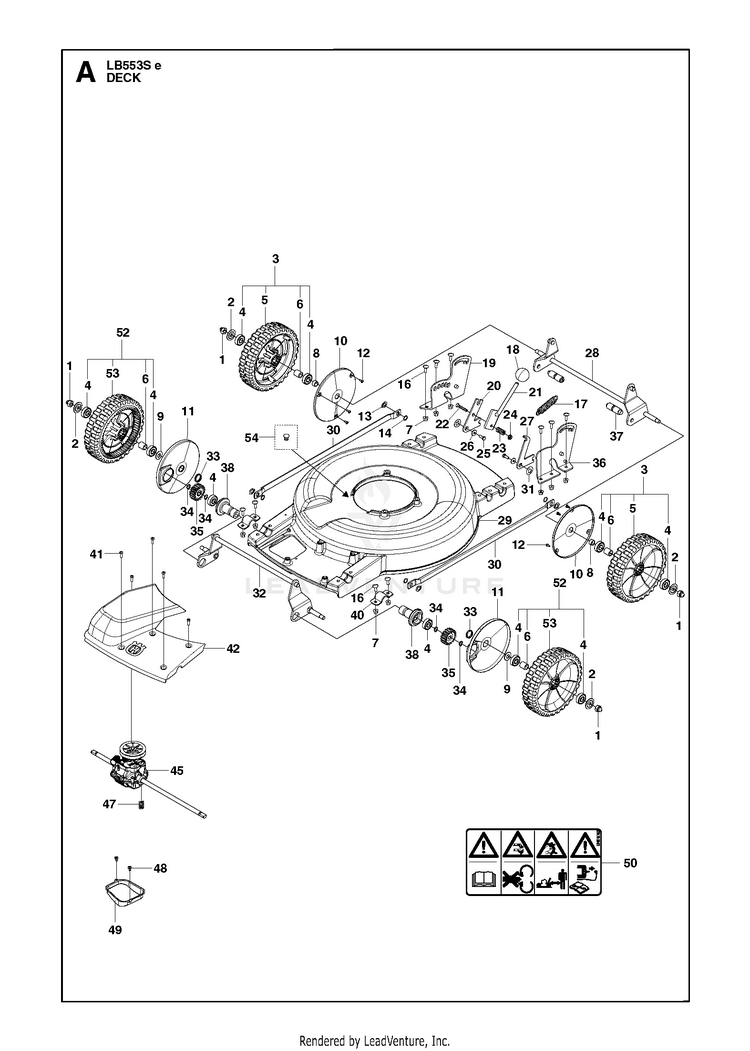

MOWER DECK / CUTTING DECK

...
...
22
NEEDS DESCRIPTION HUS-725637851
...
16
NEEDS DESCRIPTION HUS-727637251
...
49
NEEDS DESCRIPTION HUS-587360001
...
33
SPRING M53 / M48 HUS-295678702
...
5
WHEEL ASSY PRO HUSQVARNA HUS-295688704
...
24
FLANGE NUT HUS-731711651
...
35
PINION PRO HUS-295666901
...
29
NEEDS DESCRIPTION HUS-295659010
...
11
NEEDS DESCRIPTION HUS-579580601
...
38
NEEDS DESCRIPTION HUS-579581001
...
7
LOCKING NUT FLANGE HUS-295680403
...
30
ROD M53 HUS-295660301
...
42
NEEDS DESCRIPTION HUS-577511201
...
40
HOLDER HUS-295661701
...
19
NEEDS DESCRIPTION HUS-578790201
...
27
LEVER M53 HUS-295667701
...
32
NEEDS DESCRIPTION HUS-579581101
...
10
SHIELD PRO HUS-295667301
...
26
NEEDS DESCRIPTION HUS-523066101
...
50
NEEDS DESCRIPTION HUS-579733901
...
13
RING M53S / M48S HUS-295677401
...
4
BALL BEARING 6201-2RS/C3 W10 6201 2RS/C3 HUS-295674201
...
6
SPACER PRO HUS-295667201
...
41
NEEDS DESCRIPTION HUS-578976002
...
53
WHEEL ASSY PRO, DRIVING HUSQVA HUS-295688604
...
23
SPRING M53 / M48 HUS-295613601
...
14
RETAINING RING HUS-740421000
...
21
LEVER ASSY M53 / M48 M53 HUS-295661602
...
52
WHEEL PRO, DRIVING HUSQVARNA HUS-295667004
...
47
SPRING M53S / M48S HUS-295674801
...
34
NEEDS DESCRIPTION HUS-735311401
...
2
NEEDS DESCRIPTION HUS-295666702
...
48
SCREW ITXPANTT M5X10 ZPB (A00 HUS-502435201
...
18
BALL M53 / M48 HUS-295678101
...
25
BOLT FLANGE - M6X20 HUS-725236871
...
45
NEEDS DESCRIPTION HUS-587214201
...
20
NEEDS DESCRIPTION HUS-579581701
...
8
SPACER M53 L=14 HUS-295666202
...
28
AXLE ASSY M53 PRO HUS-295660901
...
1
NUT M53S / M48S HUS-295677105
...
3
WHEEL PRO HUSQVARNA HUS-295667104
...
37
NEEDS DESCRIPTION HUS-579581801
...
9
SPACER WASHER M53S / M48S HUS-295675201
...
54
NEEDS DESCRIPTION For chassis with hole HUS-586588501
...
31
NEEDS DESCRIPTION HUS-578338701
...
17
SPRING M53 / M48 HUS-295674301
...
12
NEEDS DESCRIPTION HUS-729577401
...
36
NEEDS DESCRIPTION HUS-578790101
