Husqvarna LB 155S Walk Behind Mower

Model: LB 155S

Save Part Not Listed?
product name

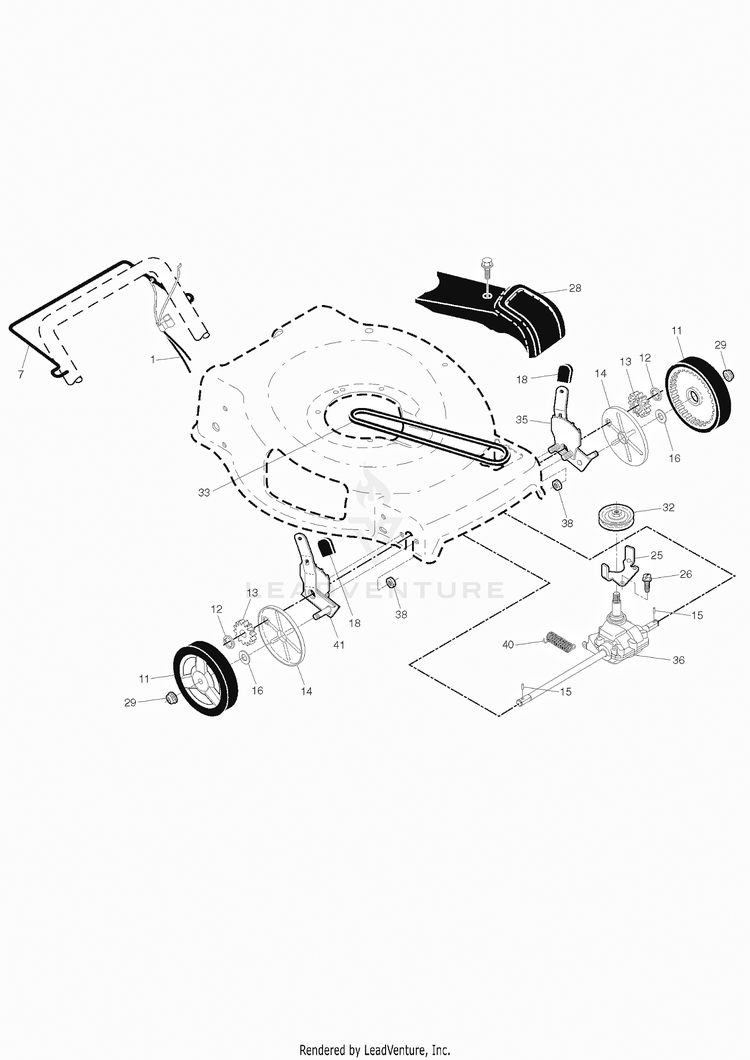

DRIVE

...
...
40
SPRING HUS-532406558
...
1
CABLE.DRIVE.VS/SS.22+FGD.MCCUL HUS-585040701
...
18
SELECTOR KNOB HUS-532701037
...
41
ADJUSTER.ASM.22+FGD.RF /AWD RT HUS-581497908
...
7
BAIL.CURVED.UNDER.BAIL.BLACK HUS-585123102
...
38
NUT.HEX.FLANGE.1/4 For 96121002700, 96121002701 HUS-532191730
...
16
WASHER FLUT HUS-532067725
...
36
TRANSMISSION.22+.FWGD.SS/VS HUS-589600601
...
15
PAWL, DRIVE HUS-532404845
...
12
E-RING 7/16 RE HUS-812000058
...
32
RP PULLEY.DRIVE.EZ/VAR.SCREWON For 96121002700, 96121002701 HUS-532443262
...
14
COVER.DUST.WHEEL.INNER.WALK HUS-581840401
...
26
SCREW HUS-532163409
...
32
PULLEY.DRIVEN.EZ/VARI (2 2MC) For all EXCEPT 96121002700, 96121002701 HUS-586989701
...
29
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
33
BELT.DRIVE.FGD. HUS-532196853
...
28
COVER.DR.ASM.421097.HUSQ.CE HUS-581839001
...
35
ADJUSTER.ASM.22+FGD.LF /AWD LT HUS-581497907
...
25
BRACKET.BELT.GUIDE.22+FGD.BZP HUS-532431711
...
38
Hardware For all EXCEPT 96121002700, 96121002701 HUS-596041001
...
11
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 HUS-532401274
...
13
PINION.14.TEETH.FGD HUS-532403849

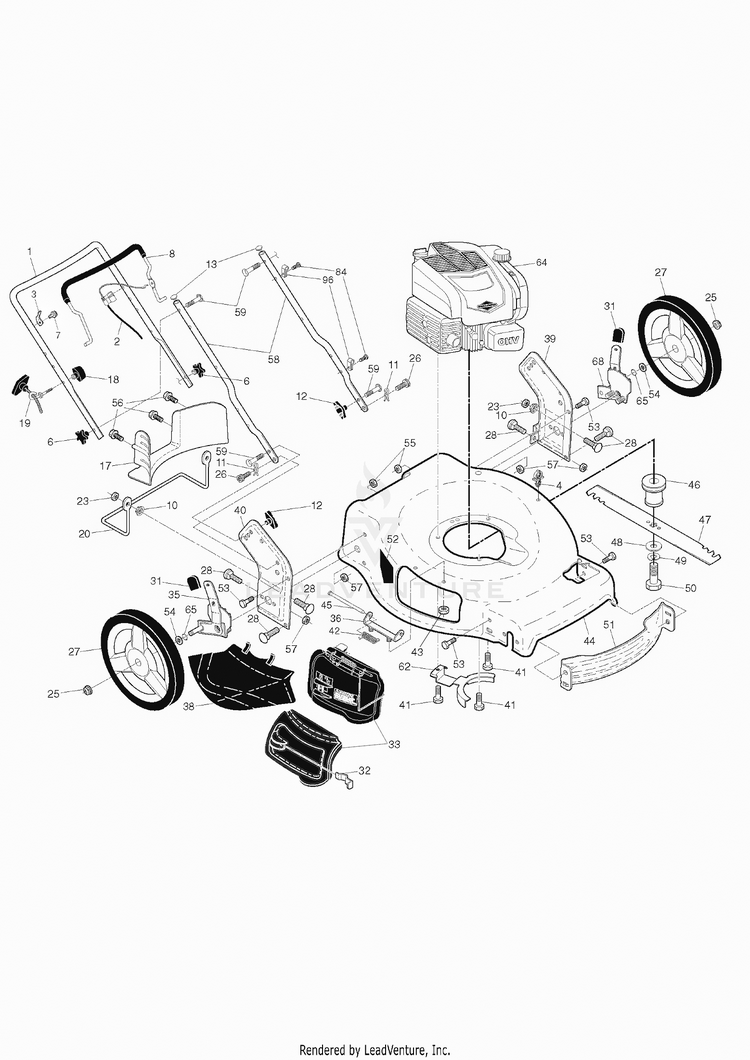

ENGINE

...
...
19
GUIDE.ROPE.BLK.ZINC.CHROM HUS-581902101
...
1
HANDLE.UP.CURV.PUSH.498 HUS-585854803
...
62
BRACKET.KEEPER.BELT HUS-532425711
...
6
KNOB.HANDLE.PLASTIC.STAR.BLACK HUS-532182398
...
4
PUSH CLIP HUS-532145006
...
2
CABLE.MZR.FGD.PLUS For all EXCEPT 96121002700, 96121002701 HUS-532420939
...
39
BRACKET.ASM.HANDLE.LT.22+.GREY For all EXCEPT 96121002700, LH HUS-585900703
...
32
LATCH.DOOR.ZINC For all EXCEPT 96121003702, 96121003703 HUS-532441192
...
96
CLIP.CABLE.BLK HUS-532197991
...
xx
NEEDS DESCRIPTION For 96121003702 HUS-115964740
...
42
SPRING.TORSION For 96121002700, 96121002701, 96121003700, 96121003701 HUS-532193000
...
26
SCREW,DOOR/HANDLE.PIVOT HUS-532419945
...
23
Hardware HUS-596040501
...
3
BRACKET.UPSTOP.RT For 96121002700, 96121002701 HUS-532430034
...
8
BAIL.OVER.MOLD.ERGO.MZR.ORANGE For 96121002700, 96121002701 HUS-580849102
...
49
Washers HUS-596238701
...
40
BRACKET.ASM.HNDL.RT.22+.GREY For 96121002700, RH HUS-581353602
...
43
Hardware For 96121003700, 96121003701 HUS-596041001
...
10
PALNUT.5/16" HUS-583400601
...
65
O-RING..070X.487.NEOPRENE HUS-532197480
...
xx
NEEDS DESCRIPTION For 96121003703 HUS-114062240
...
33
DOOR ASSY KIT.MULCH DOOR.CE 22 For 96121003702, 96121003703 HUS-593241102
...
18
T-KNOB.NEW ROPE GUIDE HUS-581912601
...
27
WHEEL.12X1.75.CF H3SPK.RAD3.BB HUS-585911001
...
64
For 96121003703, B&S 103M02-0027-H5 B&S 103M02-0027-H5 1-800-233-3723 HUS-000000000
...
46
ADAPTOR BLADE 25MM STAR For all EXCEPT 96121003703 HUS-581473301
...
44
KIT.HSG.22+FGD.SIDE.668.CE HUS-581801901
...
58
HANDLE.LOWER.22+BT.2PC.GRY For 96121002700 HUS-532441197
...
xx
BAG OF HARDWARE.22+ For all EXCEPT 96121002700, INCLUDES KEY NUMBERS 12 & 56 HUS-532423849
...
64
For 96121002700, 96121002701, B&S 124T02-0310-H1 FOR PARTS & SERVICE 1-800-233-3723 HUS-000000000
...
57
GSPW Hardware HUS-596039201
...
8
BAIL.OM.ERGO.BENT.MZR.ORAN.668 For all EXCEPT 96121002700, 96121002701 HUS-587689302
...
xx
NEEDS DESCRIPTION For 96121003702 HUS-115964720
...
47
BLADE 22 4-N-1 2PIN 5STAR BLK HUS-580244002
...
38
DEFLECTOR.CLIPPING.22.BLACK HUS-532426129
...
68
ADJUSTER.ASM.9POS.HW.R/L LH HUS-532431141
...
58
HANDLE.LOWER.ASM.W/PLUG.22+.49 For all EXCEPT 96121002700 HUS-593270403
...
36
BRACKET.ASM.HINGE.21.FWGD. For all EXCEPT 96121003702, 96121003703 HUS-532175735
...
13
PLUG.PLASTIC.7/8".14-20.GAUGE HUS-532437516
...
2
CABLE.MZR.FGD.22+.ERGO For 96121002700, 96121002701 HUS-532424033
...
28
Bolts For 96121002700 HUS-596136401
...
xx
NEEDS DESCRIPTION For 96121003703 HUS-114062210
...
11
COTTER.HAIRPIN.DOOR/HANDLE.PIV HUS-532425575
...
50
SCREW, HEX HD 3/8-24 X 1-3/8 HUS-532851084
...
xx
NEEDS DESCRIPTION For 96121003703 HUS-114062253
...
52
DECAL.CUTFINGER.CE.02 HUS-581579101
...
46
ADAPTER.BLADE.25M.22+FGD.2PIN For 96121003703 HUS-591344801
...
35
ADJUSTER.ASM.9POS.HW.R/R RH HUS-532431140
...
xx
NEEDS DESCRIPTION For 96121003702 HUS-115964750
...
55
NUT.HEX.FLANGE.1/4 HUS-532191730
...
25
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
54
WASHER.FLAT.1/2 HUS-532088348
...
12
HANDLE.KNOB.BLACK HUS-532185577
...
20
FOOT.GUARD.REAR.22PLUS.BLK HUS-583394001
...
7
SCREW For 96121002700, 96121002701 HUS-532178848
...
84
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
56
SCREW.HX.13X.750 HUS-817411312
...
51
BAFFLE.FRONT.22.PLUS HUS-532430599
...
xx
DECAL.INTERN.4.SYMBOL.CURVED NOT SHOWN HUS-532182191
...
xx
NEEDS DESCRIPTION For 96121003702 HUS-115964710
...
31
SELECTOR KNOB HUS-532701037
...
33
DOOR.MULCH.22+.BLK For all EXCEPT 96121003702, 96121003703 HUS-594942002
...
64
For 96121003700, 96121003701, 96121003702, B&S ENGINE, 103M02-0027-H1 HUS-000000000
...
28
BOLT.CARRIAGE.LN.5/16-18X.5/8 For all EXCEPT 96121002700 HUS-586212501
...
48
WASHER,HARDEN HUS-532851074
...
53
BOLT.5/16HEX.WHS.HD HUS-817000510
...
xx
NEEDS DESCRIPTION For 96121003703 HUS-114062220
...
43
NUT.HEX.FLANGE.1/4 For 96121002700, 96121002701 HUS-532191730
...
40
BRACKET.ASM.HANDLE.RT.22+.GREY For all EXCEPT 96121002700, RH HUS-585900803
...
45
ROD.HINGE.21 For 96121002700, 96121002701, 96121003700, 96121003701 HUS-532175650
...
39
BRACKET.ASM.HNDL.LT.22+.GREY For 96121002700, LH HUS-581353702
...
41
BOLT 3/8-16X1-1/8 HUS-532150406
...
xx
NEEDS DESCRIPTION For 96121003703 HUS-114062250
...
59
BOLT, HANDLE 5/16-18X1.75 HUS-532191574
...
xx
NEEDS DESCRIPTION For 96121003702 HUS-115964753
...
17
BAFFLE.22PLUS.FGD.REAR. HUS-532427307
