Husqvarna L80000AT (1999 & Before) Tractor

Model: L80000AT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

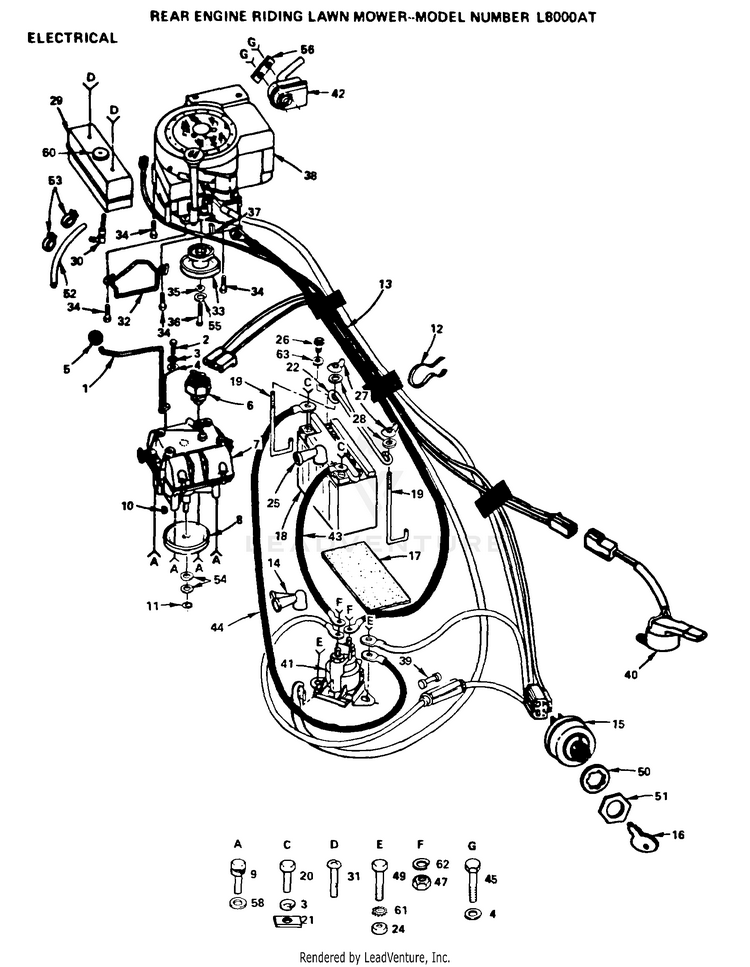

ELECTRICAL, BATTERY, ENGINE

...
...
1
SHIFT LEVER T HUS-74688
...
2
BOLT HUS-74610408
...
3
LOCKWASHER T HUS-10020400
...
4
WASHER PM HUS-19091216
...
5
SUB= 106932X HUS-55862
...
6
SWITCH HUS-74525
...
7
TRANSMISSION ASSY HUS-74693
...
8
TRANS PULLEY HUS-73541
...
9
NLA HUS-15760510
...
10
SUB= 2228M1 HUS-2228M
...
11
SUB= 2267J HUS-12000028
...
12
WIRE TIE HUS-7192 J
...
13
NLA HUS-101254N
...
14
TERM COVER DUAL HUS-51J
...
15
SUB= STD365402 HUS-4406R
...
16
SUB= STD365410 HUS-7552H
...
17
PAD - BATTERY HUS-2965J
...
18
SUB= 102958X HUS-101253M
...
19
SUB= 70456 HUS-67188
...
20
SUB= 74230408 HUS-74760408
...
21
NLA HUS-2002J
...
22
"ROD LT, BATTERY" HUS-1592J
...
24
SUB= 50675 HUS-73220400
...
25
SUB= 154336 HUS-719J
...
26
CAP - BATTERY HUS-2223J
...
27
SUB= 146525 HUS-73490400
...
28
WASHER HUS-19091016
...
29
NLA HUS-742J
...
30
NLA HUS-739J
...
31
SCREW HUS-74310410
...
32
NLA HUS-677A201
...
33
ENGINE PULLEY RER HUS-101389X
...
34
SCREW LT HUS-17490624
...
35
WASHER LT HUS-19152405
...
36
BOLT RER HUS-74770728
...
37
SQ KEY STD HUS-9396E
...
38
ENGINE HUS-191707
...
39
FUSE - 15 AMP HUS-2212R
...
40
No Desciption for Part HUS-2093J
...
41
SUB= 146154 HUS-2008J
...
42
NLA HUS-6070J
...
43
CABLE ASSY HUS-6181J
...
44
CABLE ASSY LT HUS-2098J
...
45
NLA HUS-74780444
...
47
NUT HUS-73350400
...
49
BOLT LT HUS-74760412
...
50
LOCKWASHER HUS-11151000
...
51
CONDUIT NUT L HUS-3258J
...
52
HOSE T HUS-7833R
...
53
SUB= 123487X HUS-6999R
...
54
WASHER HUS-19211621
...
55
LOCKWASHER HUS-10040700
...
56
MUFFLER CLIP T HUS-889J
...
58
NLA HUS-19121410
...
60
CAP-FILLER T HUS-3605J
...
61
LOCKWASHER HUS-11050400
...
62
SUB= 10040400 HUS-10090400
...
63
GASKET - BATTERY HUS-2224J
