Husqvarna L80000AT (1999 & Before) Tractor

Model: L80000AT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

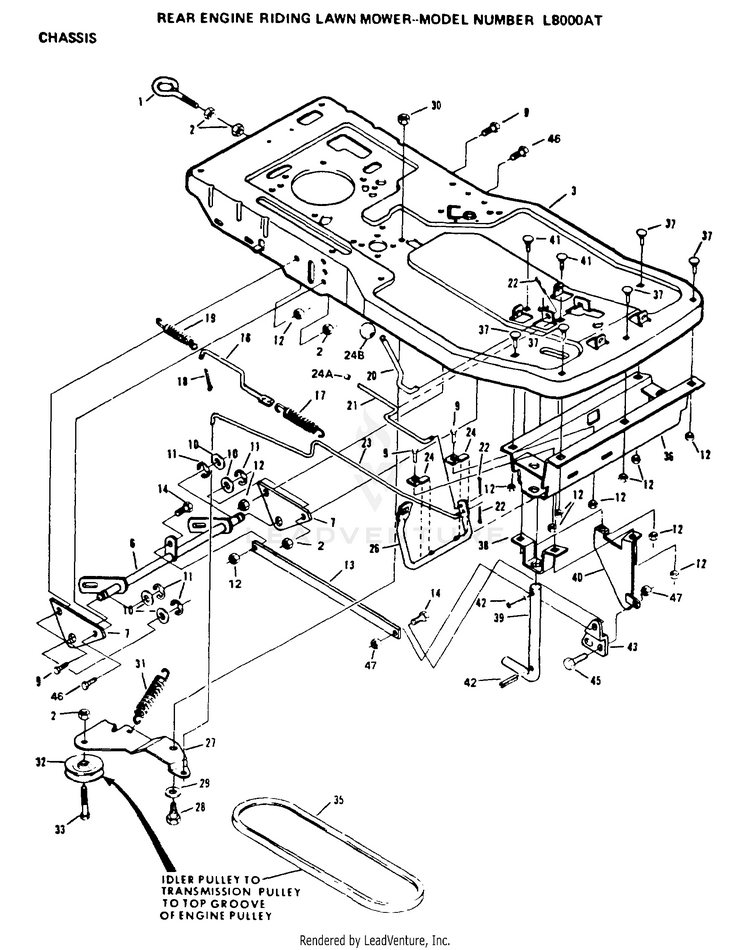

CHASSIS, DRIVE BELT

...
...
1
TOW HITCH - EYEBOLT HUS-3133J
...
2
SUB= 73690600 HUS-73680600
...
3
CHASSIS HUS-101394X
...
6
LEVER ARM HUS-677A774
...
7
NLA HUS-6080J
...
9
BOLT HUS-74760512
...
10
WASHER LT HUS-19211616
...
11
SUB= 2225J HUS-12000002
...
12
SUB= 73690500 HUS-73680500
...
13
PARALLEL BAR HUS-6276J
...
14
NLA HUS-6092J
...
16
BRAKE ROD HUS-72386
...
17
NLA HUS-64284
...
18
SUB= 3145 HUS-76020312
...
19
SPRING HUS-62755
...
20
LIFTER HANDLE HUS-74527
...
21
NLA HUS-72361
...
22
COTTER PIN HUS-63640
...
23
NLA HUS-72393
...
24
NLA HUS-72360
...
24A
PLUNGER CAP T HUS-71673
...
24B
SUB= 106932X HUS-55862
...
26
NLA HUS-72387
...
27
NLA HUS-67174
...
28
SUB= 101008K HUS-55855
...
29
SUB= 67725 HUS-19172410
...
30
NUT HUS-73530500
...
31
IDLER SPRING HUS-2044J
...
32
IDLER PULLEY RER HUS-53018
...
33
BOLT HUS-15760624
...
35
V BELT T (L439) HUS-67346
...
36
NLA HUS-72357
...
37
BOLT HUS-72140506
...
38
NLA HUS-72357
...
39
NLA HUS-6081J
...
40
NLA HUS-677A776
...
41
BOLT HUS-72140508
...
42
DRIVELOKPINTYPE HUS-74576
...
43
NLA HUS-6079J
...
45
NLA HUS-68475
...
46
SUB= 74780612 HUS-74760612
...
47
NUT HUS-73800500
