Husqvarna L80000AT (1999 & Before) Tractor

Model: L80000AT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

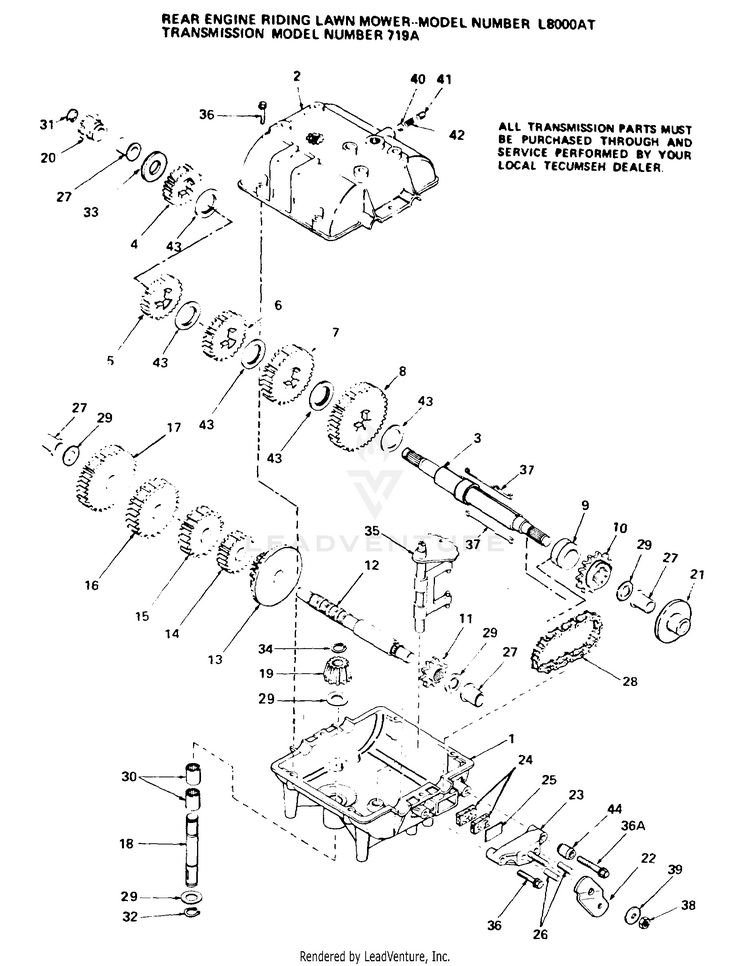

TRANSMISSION P/N BREAKOUT

...
...
xx
No Desciption for Part HUS-794213
...
1
No Desciption for Part HUS-770061
...
2
No Desciption for Part HUS-772170
...
3
No Desciption for Part HUS-776161
...
4
GEAR, SPUR HUS-778121A
...
5
No Desciption for Part HUS-778122
...
6
No Desciption for Part HUS-778123
...
7
No Desciption for Part HUS-778124
...
8
GEAR, SPUR, 35 TEETH HUS-778125
...
9
COLLAR, SHIFT HUS-784266
...
10
No Desciption for Part HUS-786060
...
11
No Desciption for Part HUS-786061
...
12
No Desciption for Part HUS-776134
...
13
GEAR, BEVEL HUS-778109
...
14
No Desciption for Part HUS-778126
...
15
No Desciption for Part HUS-778127
...
16
No Desciption for Part HUS-778128
...
17
No Desciption for Part HUS-778129
...
18
SHAFT, INPUT HUS-776135
...
19
No Desciption for Part HUS-778113
...
20
No Desciption for Part HUS-786047
...
21
DISK, BRAKE HUS-790003
...
22
LEVER, BRAKE HUS-790004
...
23
No Desciption for Part HUS-790005
...
24
PAD BRAKE HUS-790006
...
25
PLATE BRAKE PAD HUS-790007
...
26
PIN DOWEL HUS-786026
...
27
No Desciption for Part HUS-780105
...
28
No Desciption for Part HUS-786062
...
29
WASHER THRUST HUS-780072
...
30
No Desciption for Part HUS-780106
...
31
No Desciption for Part HUS-792072
...
32
RING, RETAINER HUS-792035
...
33
WASHER, THRUST HUS-780109
...
34
RETAINING RING HUS-788040
...
35
No Desciption for Part HUS-784267
...
36
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
36A
SCREW FLNG HEX 1/4-20 X 2-1/4 HUS-792085
...
37
KEY (4 REQUIRED) HUS-792089A
...
38
LOCKNUT 5/16-24 HUS-792075
...
39
WASHER, FLAT HUS-792076
...
40
BALL STEEL, 5/16" DIA. HUS-792077
...
41
SCREW, 3/8-16 X 3/8" HUS-792078
...
42
SPRING HUS-792079
...
43
WASHER THRUST HUS-780108
...
44
SPACER HUS-786067
