Husqvarna L80000AT (1999 & Before) Tractor

Model: L80000AT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

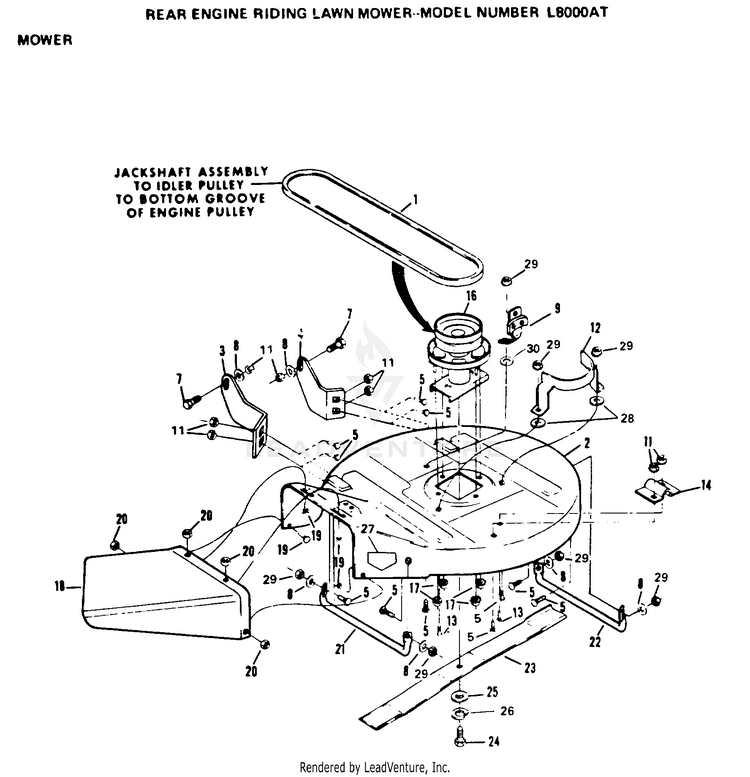

MOWER DECK, BELT, BLADE

...
...
1
SUB= 110975X HUS-74164
...
2
HOUSING W/SILK SCREENING HUS-74668
...
3
HOUSING LIFTE T HUS-74710
...
4
HOUSING LIFTE T HUS-74709
...
5
BOLT HUS-72140506
...
7
SHOULDER BOLT T HUS-6091J
...
8
WASHER M HUS-19111216
...
9
BRAKE ASSY HUS-102347X
...
11
SUB= 73690500 HUS-73680500
...
12
BELT SNUBBER T HUS-6069J
...
13
SUB= 72140508 HUS-72250508
...
14
MOWER SUPPORT T HUS-72368
...
16
JACKSHAFT ASS T HUS-6075J
...
17
SUB= 73690600 HUS-73680600
...
18
DISCHARGE GUARD HUS-71534
...
19
SUB= 72140406 HUS-72250406
...
20
SUB= 73690400 HUS-73680400
...
21
SUB= 120893X HUS-74824
...
22
NLA HUS-74825
...
23
SUB= 25646 HUS-75276
...
24
BOLT HUS-74610620
...
25
SUB= 19133808 HUS-67354
...
26
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
27
SUB= 85463 HUS-78850
...
28
SUB= 55611 HUS-19131407
...
29
SUB= 73690500 HUS-73680500
...
30
SUB= 55611 HUS-19131407
