Husqvarna L80000AT (1999 & Before) Tractor

Model: L80000AT (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

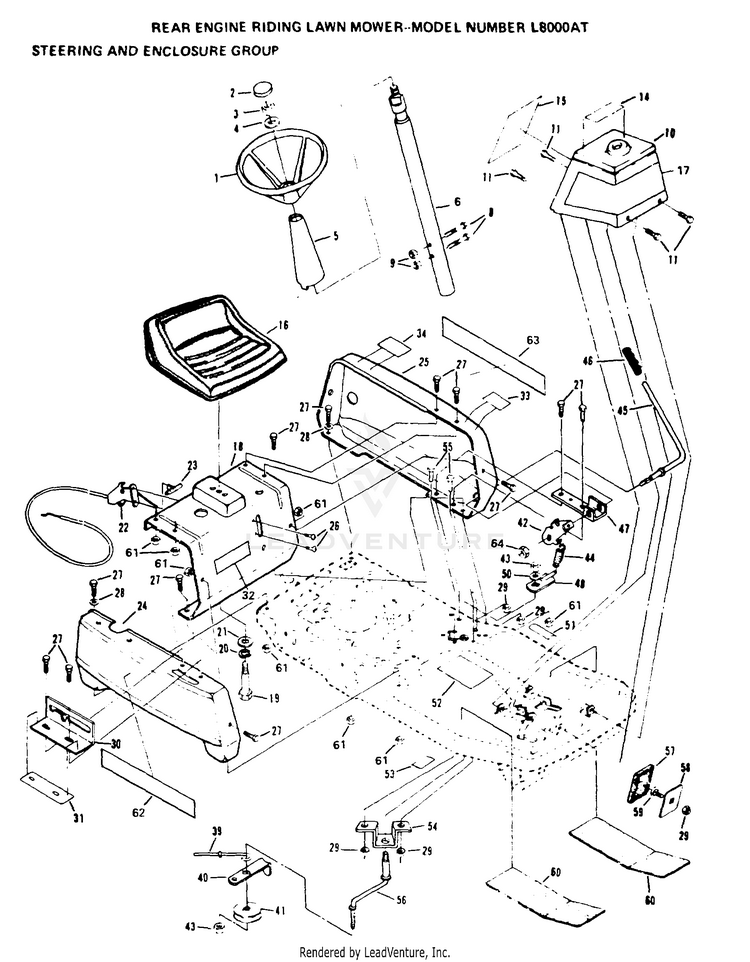

STEERING, ENCLOSURES, SEAT

...
...
1
NLA HUS-74564
...
2
INSERT CAP LT HUS-1114J
...
3
NUT HUS-73360800
...
4
WASHER HUS-19171616
...
5
STEERING SHAFT COVER HUS-72705
...
6
STEERING SHAFT ASSY HUS-677A775
...
8
BOLT HUS-74780420
...
9
SUB= 73690400 HUS-73680400
...
10
CONSOLE ASSY HUS-677A782358
...
11
SCREW LT HUS-17490508
...
14
DECAL - OPERATING INSTRUCTIONS HUS-8040J
...
15
DECAL - INSTRUCTION HUS-8044J
...
16
SUB= 140119 HUS-476J
...
17
NLA HUS-108601X
...
18
FRONT PANEL W/SILK SCREEN HUS-8430J
...
19
NLA HUS-72639
...
20
SUB= 10040800 HUS-10110800
...
21
WASHER HUS-19171912
...
22
SUB= 132768 HUS-1544J
...
23
KNOB HUS-61159
...
24
PANEL - SIDE HUS-8034J358
...
25
PANEL - SIDE HUS-8033J358
...
26
SCREW LT HUS-17760412
...
27
NLA HUS-98000131
...
28
SUB= 52915 HUS-19111816
...
29
SUB= 73690500 HUS-73680500
...
30
SHIFTER GATE T HUS-74706
...
31
NLA HUS-108630X
...
32
SUB= 120822X HUS-108658X
...
33
DECAL - BLADE HUS-8046J
...
34
DECAL - ENGINE HUS-8037J
...
39
SUB= 110093X HUS-6407J
...
40
BELT KEEPER T HUS-6278J
...
41
IDLER PULLEY T HUS-6109J
...
42
SPRING ARM HUS-105197X
...
43
SUB= 73690600 HUS-73680600
...
44
SPRING HUS-2679J
...
45
LEVER.CLUTCH.BLAD HUS-74538
...
46
NLA HUS-71246
...
47
NLA HUS-74539
...
48
CONTROL ARM ASSY HUS-75339
...
50
SUB= 55611 HUS-19131407
...
51
DECAL - ENTER & EXIT HUS-8045J
...
52
DECAL - BRAKE INSTRUCTION HUS-8043J
...
53
SUB= 101892X HUS-1133J
...
54
IDLER SUPPORT BKT HUS-74542
...
55
BOLT HUS-74760512
...
56
IDLER ARM HUS-6077J
...
57
FOOT PAD LT HUS-67365
...
58
NLA HUS-67189
...
59
BOLT HUS-72140506
...
60
NLA HUS-72384
...
61
NUT HUS-73510500
...
62
DECAL - FENDER HUS-108600X
...
63
DECAL - FENDER HUS-108599X
...
64
LOCKNUT HUS-73930600
...
xx
SHEET INSTR LT HUS-101539X
...
xx
NLA HUS-108616X
