Husqvarna L2500AR (1999 & Before) Tractor

Model: L2500AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

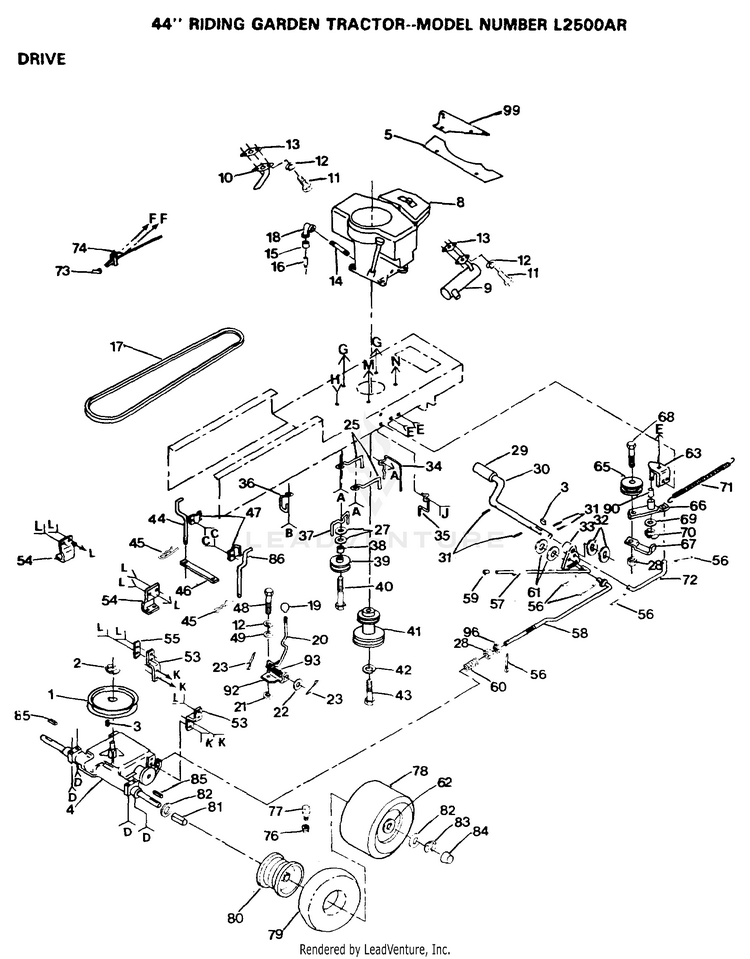

DRIVE

...
...
1
Pulley, Transaxle HUS-106192X
...
2
SUB= 2267J HUS-12000028
...
3
SUB= 2228M1 HUS-2228M
...
4
TRANSAXLE HUS-109566X
...
5
SUB= 123190X HUS-109741X
...
8
ENGINE HUS-109570X
...
9
MUFFLER HYT HUS-108373X
...
10
EXHAUST TUBE T HUS-100229L
...
11
SUB= 74780414 HUS-74780412
...
12
LOCKWASHER HUS-10040400
...
13
SUB= 272250 HUS-8545J
...
14
PIPE NIPPLE HUS-13280328
...
15
COUPLING LT HUS-13300300
...
16
PLUG T HUS-13290300
...
17
SUB= 130969 HUS-108310X
...
18
STREET ELBOW LT HUS-13240300
...
19
KNOB T (1/2-HOLE) HUS-106933X
...
20
SUB= 110458X HUS-105699X
...
21
WASHER HUS-106362X
...
22
WASHER HUS-19151216
...
23
PIN COTTER 1/8 HUS-76020416
...
25
"KEEPER,BLT ENG LT" HUS-105730X
...
27
WASHER HUS-19131312
...
28
SUB= 73690600 HUS-73680600
...
29
PEDAL COVER T HUS-8883R
...
30
FOOT SHAFT PEDAL HUS-109037X
...
31
SUB= 2882J HUS-1572H
...
32
SUB= 121749X HUS-19252016
...
33
ARM BRAKE LT HUS-106918X
...
34
SUB= 121440X HUS-106301X
...
35
SUB= 121441X HUS-106300X
...
36
SUB= 140312 HUS-104777X
...
37
BELT KEEPER LT HUS-109070X
...
38
SPACER T HUS-4470J
...
39
SUB= 123674X HUS-4859J
...
40
BOLT HUS-74760644
...
41
SUB= 137326 HUS-105731X
...
42
LOCKWASHER HUS-10040700
...
43
SUB= 71130720 HUS-74770720
...
44
SUB= 122067X HUS-108331X
...
45
SPRING.RETAINER HUS-4921H
...
46
SUB= 122066X HUS-106296X
...
47
CLAMP LT HUS-106190X
...
48
SUB= 74550412 HUS-71040412
...
49
WASHER LT HUS-19091210
...
53
STRAP TORQUE LT HUS-106360X
...
54
BRACKET LT HUS-109167X
...
55
PLATE-STRAP LT HUS-106157X
...
56
COTTER PIN HUS-76020412
...
57
SUB= 125637X HUS-105844X
...
58
SUB= 110437X HUS-105752X
...
59
PLUNGER CAP T HUS-71673
...
60
SPRING ROD LT HUS-106888X
...
61
WASHER HUS-19131316
...
62
SUB= 121748X HUS-19252616
...
63
SUB= 123102X HUS-105724X
...
65
SUB= 139245 HUS-106298X
...
66
SUB= 125829X HUS-105705X
...
67
SUB= 123205X HUS-106499X
...
68
SUB= 74930624 HUS-74760624
...
69
WASHER T HUS-207J
...
70
KLIP RING HUS-12000039
...
71
"SPRING, RETURN LT" HUS-105709X
...
72
"LINK, CLUTCH T" HUS-105710X
...
73
KNOB HUS-61159
...
74
THROTTLE CNTRL LT HUS-106678X
...
76
VALVE CAP HUS-59192
...
77
VALVE STEM LT HUS-65139
...
78
SUB= 122074X HUS-106268X
...
79
TUBE.18X9.5-8 HUS-7152J
...
80
"RIM ASSY 10"" T" HUS-106272X
...
81
"SPACER, SPLIT LT" HUS-105702X
...
82
SUB= 121749X HUS-19252016
...
83
E-RING LT HUS-12000001
...
85
SUB= 123583X HUS-2703J
...
86
KEEPER BELT RH HUS-108332X
...
90
"LY, BEARING" HUS-105706X
...
92
PLATE T HUS-109569X
...
93
SPRING LT HUS-105700X
...
96
NUT HUS-73350600
...
99
SUB= 109740X HUS-104919X
