Husqvarna L2500AR (1999 & Before) Tractor

Model: L2500AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

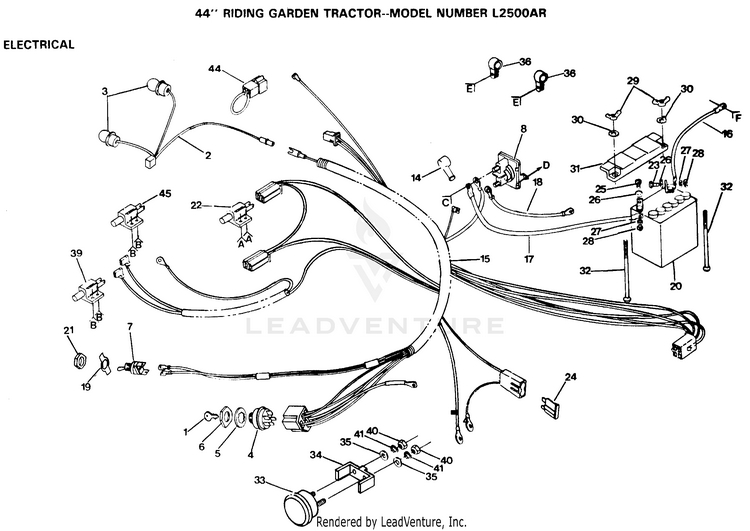

ELECTRICAL

...
...
1
Key Molded HUS-7552H
...
2
HARNESS T HUS-7661J
...
3
SUB= 4152J HUS-7662J
...
4
SUB= STD365402 HUS-4406R
...
5
LOCKWASHER HUS-11151000
...
6
CONDUIT NUT L HUS-3258J
...
7
LIGHT SWITCH T HUS-4482J
...
8
SUB= 146154 HUS-109081X
...
14
SUB= 154336 HUS-719J
...
15
HARNESS T HUS-109669X
...
16
"CABLE T, BATTERY" HUS-4799J
...
17
CABLE LT HUS-109670X
...
18
CABLE T HUS-4207J
...
19
SWITCH PLATE LT HUS-7682R
...
20
SUB= 123899X HUS-9138R
...
21
NUT HUS-7320R
...
22
SWITCH-INTER. GT HUS-104445X
...
23
SCREW HUS-17021008
...
24
FUSE HYT HUS-108824X
...
25
BOLT LT HUS-74760412
...
26
WASHER HUS-19091016
...
27
LOCKWASHER HUS-10040400
...
28
SUB= 50675 HUS-73220400
...
29
SUB= 146525 HUS-73490400
...
30
LOCKWASHER GT HUS-11030400
...
31
SUB= 150109 HUS-102476X
...
32
BOLT HUS-72240460
...
33
AMMETER T HUS-9433R
...
34
SUB= 532131708 HUS-6009J
...
35
WASHER HUS-19070818
...
36
CLIPT HUS-235R
...
39
SWITCH INTERLOCKT HUS-109553X
...
40
NUT HUS-73911000
...
41
SUB= 10071000 HUS-10101000
...
44
SUB= 141940 HUS-102501X
...
45
SWITCH T HUS-109869X
...
xx
SHEET INSTR LT HUS-101539X
...
xx
MANUAL T HUS-109564X
