Husqvarna L2500AR (1999 & Before) Tractor

Model: L2500AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

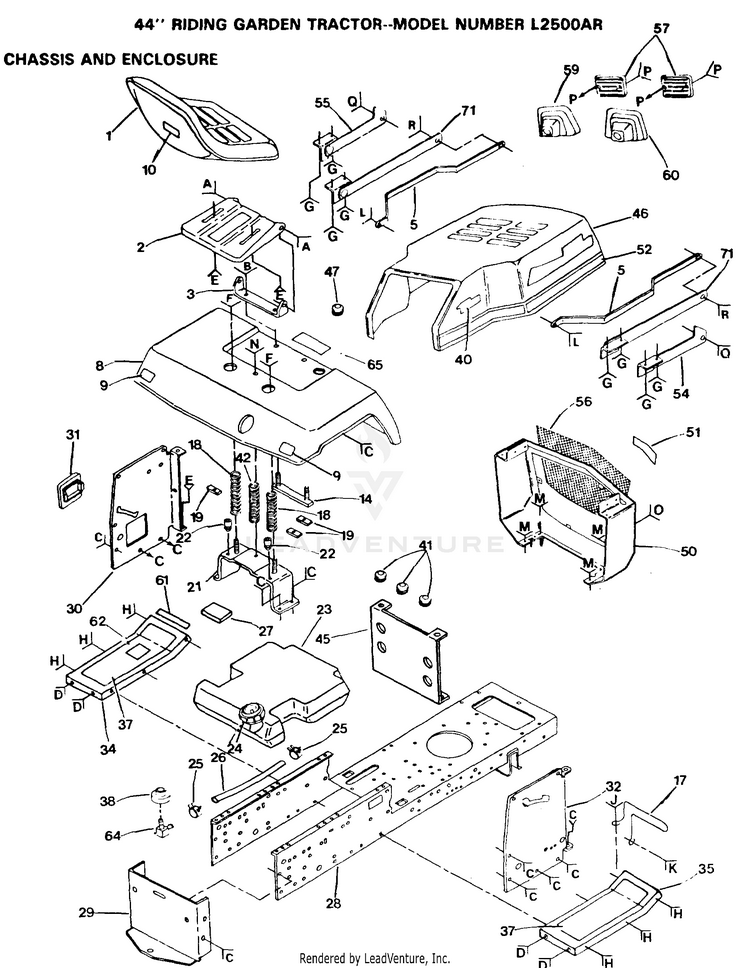

CHASSIS AND ENCLOSURE

...
...
1
Seat HUS-110059X
...
2
SEAT PAN T HUS-109866X
...
3
BRKT.ASM.SEAT.P HUS-109871X
...
5
NLA HUS-109587X
...
8
FENDER HUS-109593X366
...
9
REFLECTOR-TAIL YT HUS-106202X
...
10
NLA HUS-109323X
...
14
SUB= 140675 HUS-105511X
...
17
GUARD MUFFLER HYT HUS-108885X
...
18
SPRING LT HUS-105512X
...
19
"CLAMP, SPRING LT" HUS-105514X
...
21
SUB= 137113 HUS-105509X
...
22
NUT-PUSH YT HUS-105531X
...
23
SUB= 151346 HUS-106020X
...
24
SUB= 158990 HUS-109462X
...
25
SUB= 123487X HUS-6999R
...
26
SUB= 8543R HUS-5277J
...
27
PAD-SPACER LT HUS-106082X
...
28
CHASSIS T HUS-109512X
...
29
SUB= 145009 HUS-102481X
...
30
SUB= 532132072 HUS-109665X
...
31
SUB= 121794X HUS-105505X
...
32
SUB= 106976X HUS-109666X
...
34
FOOTREST - L.H. HUS-105465X366
...
35
FOOTREST - R.H. HUS-105464X366
...
37
PAD FOOTREST T HUS-108256X
...
38
BUSHING OUTLET T HUS-3645J
...
40
NLA HUS-109435X
...
41
SNAP BUSHING T HUS-9151R
...
42
SPRING T HUS-109867X
...
45
NLA HUS-104920X
...
46
SUB= 3607J419 HUS-3607J366
...
47
GROMMET T HUS-109641X
...
50
SUB= 5351J419 HUS-5351J366
...
51
NLA HUS-109673X
...
52
NLA HUS-109754X
...
54
STRAP ASSY T HUS-677A876
...
55
STRAP ASSY T HUS-677A875
...
56
SCREEN GRILL GTV HUS-101235L
...
57
LENS T HUS-109671X
...
59
SUB= 7606J361 HUS-7606J366
...
60
SUB= 7607J361 HUS-7607J366
...
61
DECAL T HUS-4900J
...
62
SUB= 146046 HUS-109199X
...
64
FUEL TANK STEM GT HUS-8710J
...
65
SUB= 133796 HUS-106974X
...
71
STRAP ASSY-REAR T HUS-677A432
