Husqvarna L2500AR (1999 & Before) Tractor

Model: L2500AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

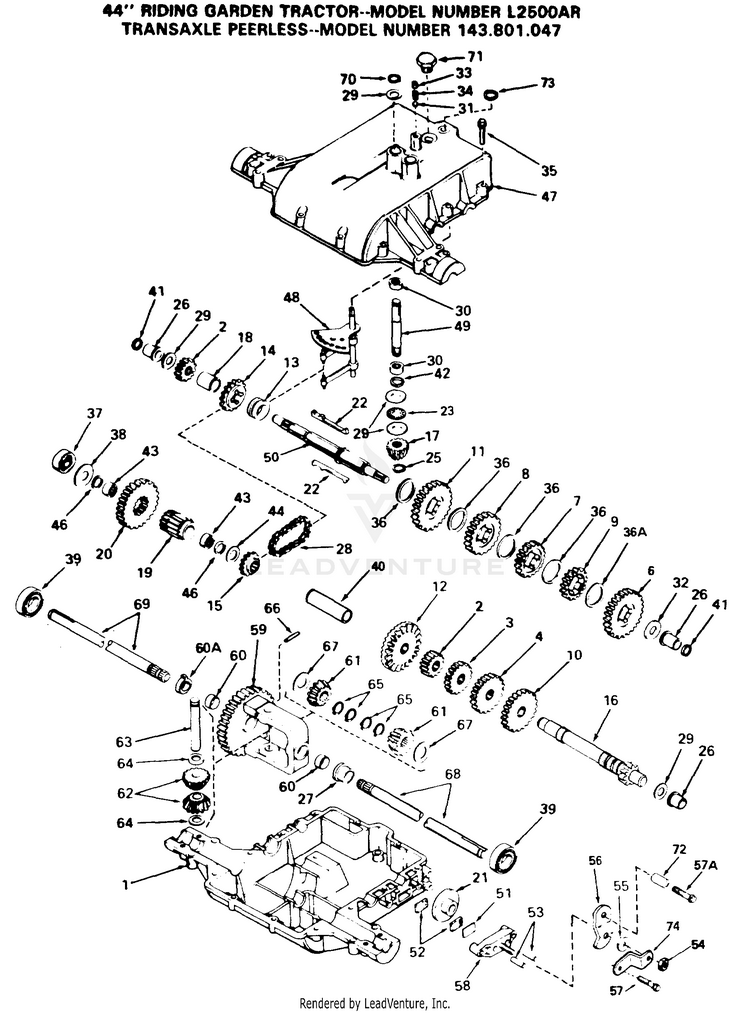

TRANSAXLE PEERLESS - MODEL NUMBER 143.801.047

...
...
1
Case, Transfer HUS-77071A
...
2
GEAR, SPUR, 15 TEETH HUS-778136
...
3
GEAR, SPUR, 20T HUS-778200
...
4
GEAR, SPUR, 25T HUS-778201
...
6
GEAR, SPUR (41 TEETH) HUS-778216
...
7
GEAR, SPUR (25 TEETH) HUS-778204
...
8
GEAR, SPUR (30 TEETH) HUS-778205
...
9
GEAR, SPUR, 19 TEETH HUS-778209
...
10
GEAR, SPUR, 31T HUS-778208
...
11
GEAR, SPUR (35 TEETH) HUS-778206
...
12
GEAR, BEVEL, (42 TEETH) HUS-778154
...
13
COLLAR, SHIFT HUS-784266
...
14
SPROCKET (18 TEETH) HUS-786083
...
15
SPROCKET 9T HUS-786082
...
16
COUNTERSHAFT & GEAR HUS-776248
...
17
BEVEL PINION, INPUT HUS-778176
...
18
SPACER HUS-786074
...
19
PINION, OUTPUT HUS-778138
...
20
GEAR, OUTPUT HUS-778139
...
21
DISK, BRAKE HUS-790003
...
22
KEY (4 REQUIRED) HUS-792089A
...
23
THRUST BEARING HUS-780071
...
25
RETAINING RING HUS-788040
...
26
BUSHING, FLANGED HUS-780105A
...
27
BUSHING, FLANGED HUS-780118A
...
28
CHAIN, ROLLER HUS-786081
...
29
WASHER THRUST HUS-780072
...
30
BEARING, NEEDLE HUS-780122
...
31
BALL STEEL, 5/16" DIA. HUS-792077
...
32
WASHER HUS-780139
...
33
SCREW, 3/8-16 X 3/8" HUS-792078
...
34
SPRING HUS-792079
...
35
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
36
WASHER THRUST HUS-780108
...
36A
WASHER HUS-780145
...
37
BEARING, BALL HUS-780121
...
38
WASHER, FLAT HUS-780113
...
39
BEARING BALL HUS-780119
...
40
SPACER (2-1/4" LONG) HUS-786113
...
41
SEAL, SQUARE CUT HUS-788051
...
42
"O" RING HUS-788057
...
43
BEARING, NEEDLE HUS-780112
...
44
WASHER, FLAT HUS-780114
...
46
SEAL, SQUARE CUT HUS-788053
...
47
COVER, TRANSAXLE HUS-772082
...
48
ROD & FORK ASSY., SHIFT HUS-784290
...
49
SHAFT, INPUT HUS-776135
...
50
SHAFT, BRAKE HUS-776184A
...
51
PLATE BRAKE PAD HUS-790007
...
52
PAD BRAKE HUS-790006
...
53
PIN DOWEL HUS-786026
...
54
LOCKNUT 5/16-24 HUS-792075
...
55
WASHER, FLAT HUS-792076
...
56
LEVER, BRAKE HUS-790038
...
57
SCREW, 1/4-20 X 1-1/4 HUS-792073
...
57A
SCREW FLNG HEX 1/4-20 X 2-1/4 HUS-792085
...
58
HOLDER BRAKE PAD HUS-790025
...
59
GEAR ASSY DIFFERENTIAL (INCL. 2 OF #60) HUS-778175
...
60
BUSHING HUS-780064
...
60A
BUSHING HUS-780120
...
61
GEAR, BEVEL HUS-778166
...
62
PINION, BEVEL HUS-778131
...
63
PINE, DRIVE HUS-786034
...
64
WASHER, THRUST HUS-780065
...
65
RING RETAINER HUS-792125
...
66
PIN, ROLL HUS-792040
...
67
WASHER HUS-780001
...
68
AXLE (15-1/8" LONG) HUS-774657
...
69
AXLE (13-1/4" LONG) HUS-774658
...
70
RING, RETAINER HUS-792035
...
71
PLUG, THRDED, 9/16-18 HUS-792074
...
72
SPACER HUS-786067
...
73
SEAL SQUARE CUT HUS-788069
...
74
BRKT BRAKE LEVER HUS-786086
