Husqvarna L2500AR (1999 & Before) Tractor

Model: L2500AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

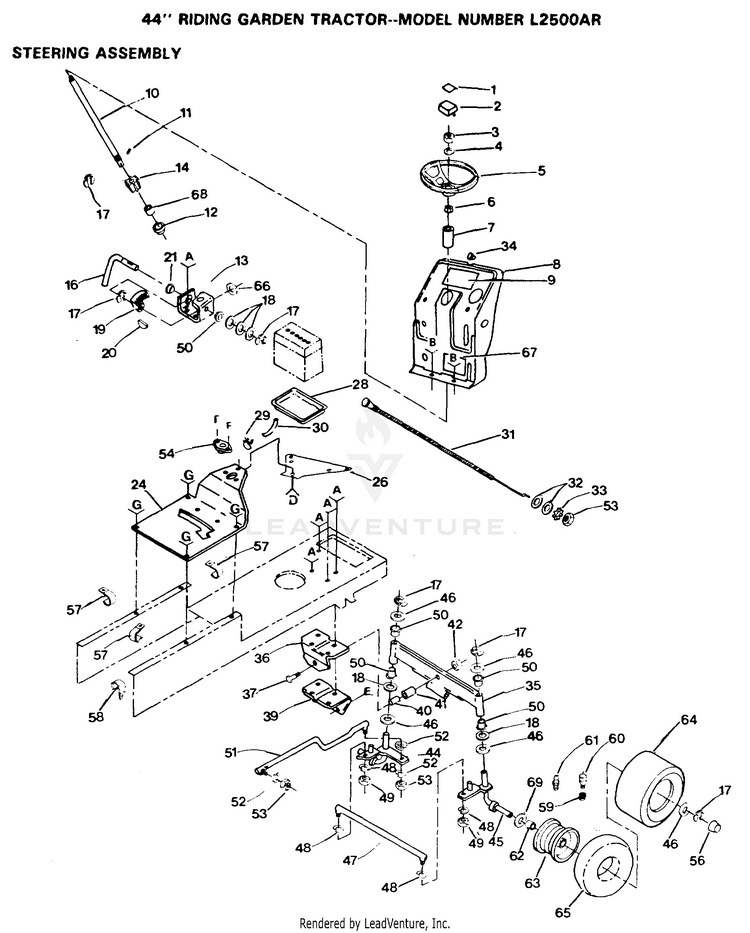

STEERING ASSEMBLY

...
...
1
Decal Steering Wheel Insert HUS-109325X
...
2
INSERT-WHEEL LT HUS-100710L
...
3
NUT HUS-73360800
...
4
WASHER HUS-100712K
...
5
SUB= 150547 HUS-100713N
...
6
ADAPTER LT HUS-100711L
...
7
SLEEVE LTV HUS-100714L
...
8
DASH HUS-109577X
...
9
NLA HUS-109674X
...
10
SHAFT STR HYT HUS-108705X
...
11
DRIVE PIN HUS-2882J
...
12
BUSHING HUS-71208
...
13
SUB= 110150X HUS-109432X
...
14
GEAR PINION T HUS-108685X
...
16
ROD STEERING T HUS-108683X
...
17
RING HUS-12000029
...
18
WASHER .T HUS-6266H
...
19
GEAR.SECTOR.HYT HUS-108684X
...
20
KEY-WOODRUFF LT HUS-106126X
...
21
NYLINER T HUS-109816X
...
24
NLA HUS-109572X
...
26
SUB= 140181 HUS-106965X
...
28
"TRAY T, BATTERY" HUS-7603J
...
29
HOSE CLAMP T HUS-109596X
...
30
SUB= 7697J HUS-100541X
...
31
SUB= 132779 HUS-109836X
...
32
WASHER HUS-19131316
...
33
LOCKWASHER HUS-11050600
...
34
PLUG-DASH T HUS-8022J
...
35
SUB= 108075X HUS-105669X
...
36
SUPPORT-SADDL T HUS-105663X
...
37
BOLT LT HUS-74761060
...
39
SUPPORT.SADDLE.FT HUS-105664X
...
40
SUB= 110438X HUS-105725X
...
41
SUB= 154391 HUS-105726X
...
42
"NUT-LOC,FLANGE LT" HUS-73901000
...
44
SPINDLE LH YT HUS-105655X
...
45
SUB= 130897 HUS-105653X
...
46
SUB= 121749X HUS-19252016
...
47
TIE ROD T HUS-106440X
...
48
LOCKWASHER HUS-10040500
...
49
NUT HUS-73610500
...
50
COL. SRTG. BEAR. HUS-3366R
...
51
LINK-DRAG LT HUS-105727X
...
52
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
53
SUB= 7810H HUS-73610600
...
54
SUB= 155108 HUS-1554J
...
56
HUB CAP HUS-104757X
...
57
CLIP T HUS-2751R
...
58
INSUL CLIP T HUS-5320R
...
59
VALVE CAP HUS-59192
...
60
VALVE STEM LT HUS-65139
...
61
FITTING LT HUS-278H
...
62
"FLANGE, BEARING" HUS-9040H
...
63
SUB= 106732X417 HUS-106732X
...
64
SUB= 122073X HUS-106222X
...
65
TUBE.5.3/4.5/6 HUS-59904
...
66
WASHER YTV HUS-101930X
...
67
DECAL, INSTRUCTION HUS-8497J
...
68
SHAFT SPACER LT HUS-74580
...
69
SUB= 121748X HUS-19252616
