Husqvarna L1910AR (1999 & Before) Tractor

Model: L1910AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

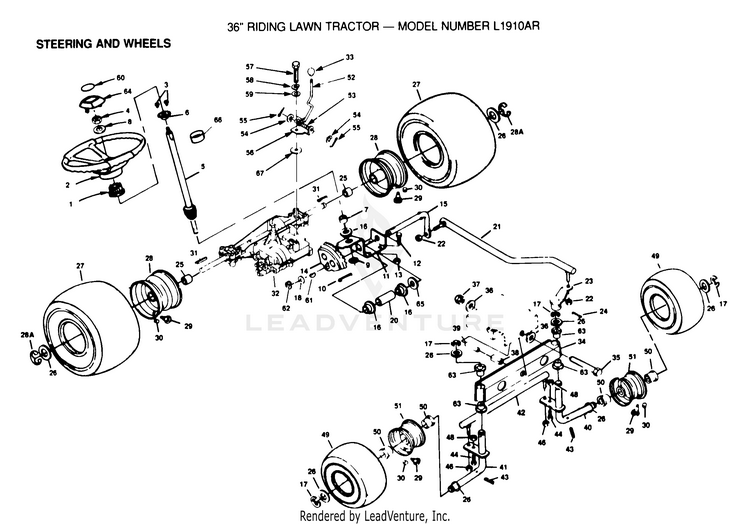

STEERING AND ALL WHEELS

...
...
1
ADAPTER LT HUS-100711L
...
2
SUB= 150547 HUS-100713N
...
3
SUB= 98000165 HUS-17431008
...
4
SUB= 73360800 HUS-73940800
...
5
STEERING SHFT LT HUS-677A208
...
6
SUB= 155108 HUS-1554J
...
7
SHAFT SPACER LT HUS-74580
...
8
WASHER HUS-100712K
...
9
WASHER HUS-19212013
...
10
SUB= 2882J HUS-1572H
...
11
STEERING BRKT T HUS-120017X
...
12
BOLT HUS-74760512
...
13
SUB= 73690500 HUS-73680500
...
14
GEAR LT HUS-101060M
...
15
STEERING ROD LT HUS-101429X
...
16
BUSHING HUS-71208
...
17
RING HUS-12000029
...
18
WASHER HUS-19211621
...
20
SPACER LT HUS-101171K
...
21
NLA HUS-71219
...
22
GRIPCO NUT HUS-7810H
...
23
STEERING ARM T HUS-71185
...
24
SPIROL PIN HUS-62079
...
25
SPACER LT HUS-109502X
...
26
WASHER HUS-121749X
...
27
SUB= 122074X HUS-71653
...
xx
TUBE.4.0/4.8-8 HUS-4445H1
...
28
SUB= 106108X427 HUS-71652
...
28A
E-RING LT HUS-12000001
...
29
VALVE STEM LT HUS-65139
...
30
VALVE CAP HUS-59192
...
31
SUB= 123583X HUS-2703J
...
32
TRANSAXLE ASSY HUS-4360-6
...
33
CONTROL KNOB LT HUS-106279X
...
34
SUB= 108894X HUS-104532X
...
35
SUB= 64606 HUS-74760848
...
36
WASHER HUS-19171416
...
37
NUT LTV HUS-73680800
...
38
ROCKER PIVOT LT HUS-67151
...
39
PIVOT SPACER LT HUS-71188
...
40
KINGPIN ASSY LH HUS-677A169
...
41
NLA HUS-677A168
...
42
TIR ROD LT HUS-73240
...
43
SUB= 5142H HUS-9530R
...
44
SUB= 74780612 HUS-74760612
...
46
NUT.LOCK.5/16-24 HUS-73810500
...
48
SUB= 73690600 HUS-73680600
...
49
SUB= 122073X HUS-71651
...
xx
SUB= 59904 HUS-4479R
...
50
"LT, BEARING" HUS-625J
...
51
RIM ASSY LT HUS-677A98
...
52
NLA HUS-121407X
...
53
SPRING LT HUS-105700X
...
54
WASHER HUS-19151216
...
55
PIN COTTER 1/8 HUS-76020416
...
56
SHIFT PLATE LT HUS-106632X
...
57
SUB= 74550412 HUS-71040412
...
58
LOCKWASHER HUS-10040400
...
59
WASHER LT HUS-19091210
...
60
SUB= 127075 HUS-109325X
...
61
SUB= 2228M1 HUS-2228M
...
62
KLIP RING HUS-12000040
...
63
COL. SRTG. BEAR. HUS-3366R
...
64
INSERT-WHEEL LT HUS-100710L
...
65
WASHER LT HUS-19211616
...
66
SLEEVE LT HUS-109420X
