Husqvarna L1910AR (1999 & Before) Tractor

Model: L1910AR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

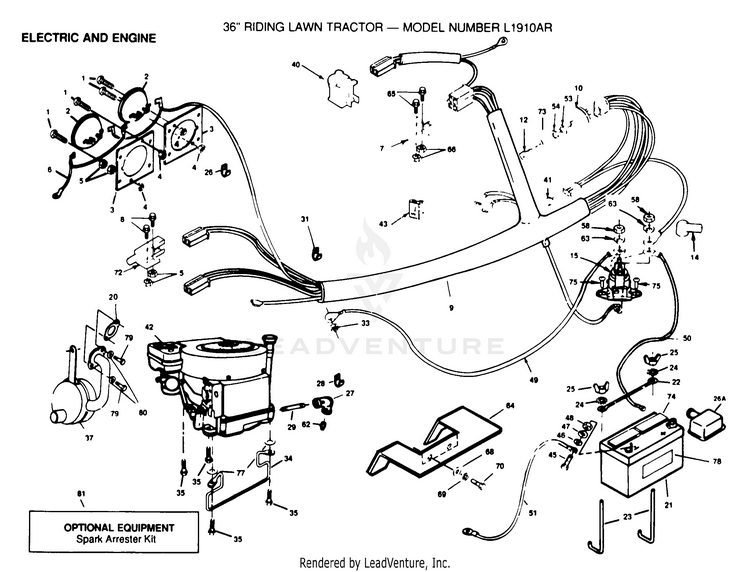

ELECTRICAL, BATTERY, ENGINE

...
...
1
NLA HUS-74291016
...
2
SUB= 60941 HUS-6774R
...
3
SUB= 2702J HUS-73025
...
4
NUT STD HUS-4632H
...
5
NUT HUS-73731000
...
6
WIRE ASSY HUS-71706
...
7
SWITCH INTERLOCKT HUS-109553X
...
8
SCREW HUS-74191008
...
9
HARNESS HUS-121354X
...
10
SUB= STD365402 HUS-4406R
...
12
SUB= STD365410 HUS-7552H
...
14
SUB= 154336 HUS-719J
...
15
SUB= 146154 HUS-109081X
...
17
NUT HUS-73510400
...
20
SUB= 272293 HUS-1407J
...
21
SUB= 123888X HUS-121310X
...
22
ROD T HUS-110134X
...
23
"BOLT, BATTERY" HUS-70456
...
24
LOCKWASHER GT HUS-11030400
...
25
SUB= 146525 HUS-73490400
...
26
CLIP SB HUS-2521R
...
26A
BATTERY TERMINAL COVER HUS-225J
...
27
ELBOW HUS-13200300
...
28
INSUL CLIP T HUS-5320R
...
29
PIPE NIPPLE HUS-13280324
...
31
SUB= 2751R HUS-6794R
...
33
NUT HUS-53490
...
34
BELT KEEPER LT HUS-1795J
...
35
SCREW LT HUS-17490624
...
37
MUFFLER LT HUS-109560X
...
40
SWITCH SEAT HUS-121305X
...
41
FUSE HYT HUS-108824X
...
42
ENGINE-B&S HUS-252707
...
43
SWITCH LT HUS-110712X
...
45
BOLT LT HUS-74760412
...
46
WASHER HUS-19091016
...
47
LOCKWASHER HUS-10040400
...
48
SUB= 50675 HUS-73220400
...
49
"CABLE T, BATTERY" HUS-2957J
...
50
SUB= 597J HUS-4559J
...
51
SUB= 2955J HUS-596J
...
53
WASHER T HUS-19221616
...
54
SUB= 124211X HUS-109788X
...
58
NUT HUS-73350400
...
62
PLUG OIL DRAIN HUS-91084
...
63
SUB= 10040400 HUS-10090400
...
64
SHIELD HEAT LT HUS-109730X
...
65
SCREW HUS-71031008
...
66
"NUT,KEPS" HUS-73951000
...
68
WASHER HUS-19101216
...
69
LOCKWASHER HUS-10040400
...
70
NLA HUS-74780416
...
72
SWITCH-INTER. GT HUS-104445X
...
73
SUB= 147626 HUS-109787X
...
74
CAP BATTERY HUS-121300X
...
75
"SCREW,MACHINE" HUS-74230408
...
77
WASHER HUS-19131210
...
78
DECAL HUS-121549X
...
79
BOLT HUS-74760512
...
80
LOCKWASHER HUS-10040500
...
81
SPARK ARRESTER KIT HUS-100092M
...
xx
NLA HUS-121345X
...
xx
OWNER'S MANUAL HUS-122126X
...
xx
SHEET INSTR LT HUS-101539X
...
xx
SHEET-INSTRUCTION (FRENCH) HUS-101572X
