Husqvarna L0815DR (1999 & Before) Tractor

Model: L0815DR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

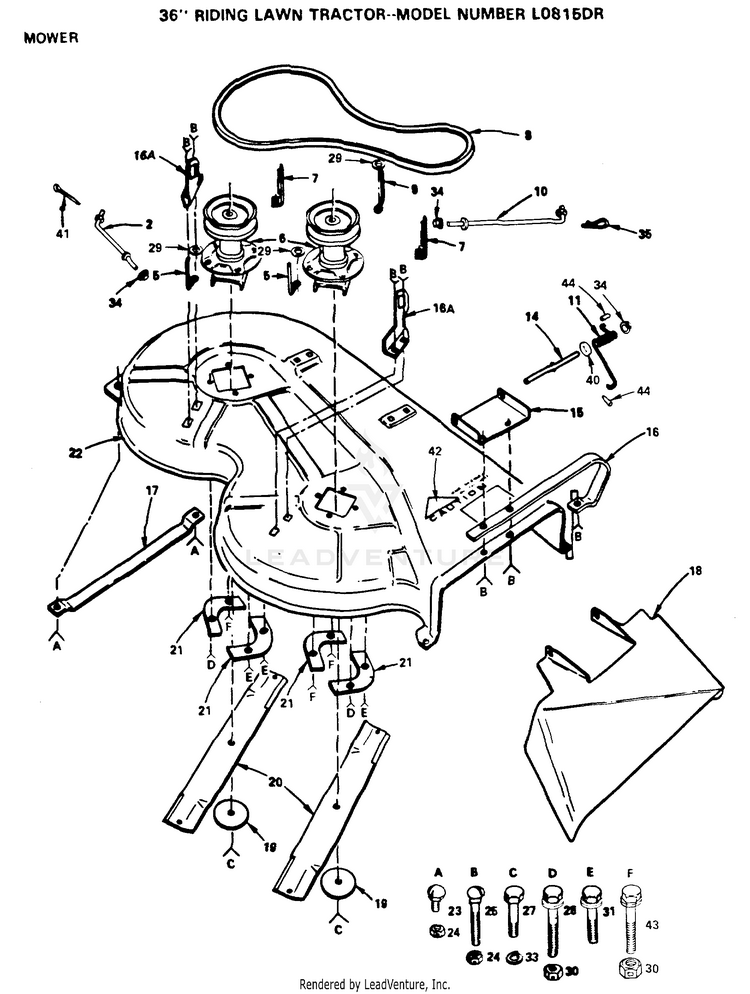

MOWER

...
...
2
BRAKE ROD LT HUS-100516L
...
5
BELT SNUBBER T HUS-535J
...
6
SUB= 101477X HUS-101479X
...
7
BRAKE.ASSY.LT. HUS-106577X
...
8
SUB= TH4H690 HUS-106412X
...
9
BELT SNUBBER T HUS-1763J
...
10
BRAKE ROD LT HUS-100517L
...
11
SPRING LT HUS-71526
...
14
HINGE ROD LT HUS-100569K
...
15
SUB= 120244X HUS-71528
...
16
RUNNER T HUS-8055J
...
16A
BRACKET.LIFT HUS-4487J
...
17
SKID LH T HUS-4496J
...
18
SUB= 102811X HUS-100544N
...
19
WASHER T HUS-19133808
...
20
SUB= 25645 HUS-105210X
...
21
SUPPORT PLATE LT HUS-100668L
...
22
SUB= 121150X HUS-4495J
...
23
BOLT HUS-72140505
...
24
SUB= 73690500 HUS-73680500
...
25
BOLT HUS-72140506
...
27
BOLT.3/8-24X1-1/2 HUS-74610624
...
28
SCREW HUS-17490620
...
29
WASHER HUS-19131312
...
30
SUB= 73690600 HUS-73680600
...
31
SCREW HUS-17490612
...
33
Washer, Lock Hvy. Hlcl. Spr. 3/8 HUS-10040600
...
34
SUB= 110452X HUS-5846R
...
35
SPRING.RETAINER HUS-4921H
...
40
WASHER HUS-19111416
...
41
COTTER PIN HUS-76020412
...
42
SUB= 85463 HUS-78850
...
43
SCREW LT HUS-17490624
...
44
CAP-SLEEVE LT HUS-105304X
