Husqvarna L0815DR (1999 & Before) Tractor

Model: L0815DR (1999 & Before)

Back To Assemblies

Save Part Not Listed?
product name

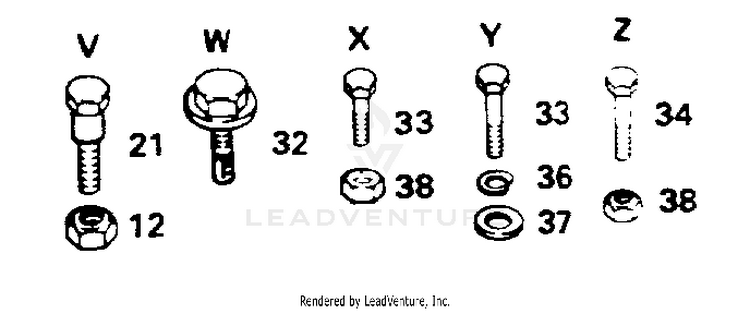

Hardware

...
...
12
SUB= 73690500 HUS-73680500
...
21
SUB= 139888 HUS-105529X
...
32
SCREW GTV HUS-17490616
...
33
BOLT LT HUS-74760412
...
34
SUB= 74230408 HUS-74760408
...
36
LOCKWASHER HUS-10040400
...
37
WASHER T HUS-19091116
...
38
SUB= 73690400 HUS-73680400
