product name

Husqvarna L 321AH - 96794980100 (2018-09) Walk Behind Mower

Model: L 321AH - 96794980100 (2018-09)

Save Part Not Listed?
product name

ENGINE

...
...
3
BOLT 3/8-16X1-1/8 Engine, 3/8-16 HUS-532150406
...
2
WASHER.ENGINE.BZP Engine HUS-532125078
...
6
WASHER,HARDEN Hardened HUS-532851074
...
4
ADAPTER.BLD.25M.2P.AW/RW/21EFF "25, 21"" AWD" HUS-590044201
...
5
BLADE.REAPER.21".W/O.NOTCH.428 High Lift HUS-586859604
...
8
BOLT.ENGINE.PULLEY Blade, Hex Head Machine Screw HUS-582388401
...
7
Washers 3/8, Helical Spring HUS-596238701
...
1
KOHLER HD775-3018 FOR SERVICE & PARTS 1-800-544-2444 HUS-000000000

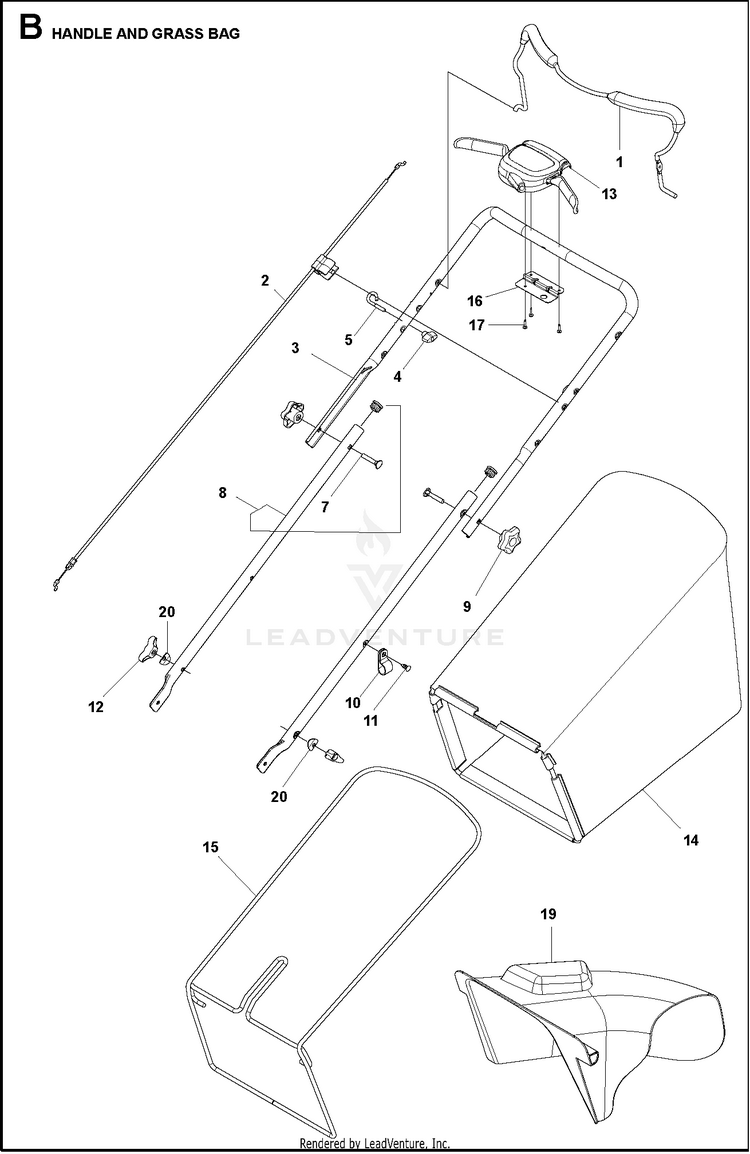

HANDLE

...
...
10
CLIP.CABLE.BLK P/Cable HUS-532197991
...
3
HANDLE.UPPER.3.POS.BS.AW2.GREY Curved HUS-580638706
...
17
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
16
BRACKET DUAL TRIGGER CONTROL Dual Trigger Control HUS-587249302
...
8
HANDLEBAR ASSY TWO PIECE LOWER Lower 2 piece, 3 Position HUS-593270401
...
13
DRIVE CABLE 21 EFF DUAL TRIGGE Control, AW2 HUS-589813201
...
15
FRAME.GBAG.AWD.21.BLACK HUS-586929102
...
20
WASHER CURVED 5/16"X1"X0.06" S Curved washer, 5/16 HUS-592808401
...
1
BAIL.OM.ERGO.BENT.MZR.ORAN.668 Curved HUS-587689302
...
14
GBAG.C3610010.GENERIC "Husqvarna 21"" AWD" HUS-587100402
...
12
HANDLE.KNOB.BLACK Handle, STANDARD HUS-532185577
...
9
KNOB.HANDLE.PLASTIC.STAR.BLACK Handle, Star HUS-532182398
...
11
FASTENER.PUSH.O.250X0.783 Push, 0.250 X 0.783 HUS-532428124
...
2
CABLE.MZR.ZONE.CONTROL Operator Presence Bail HUS-532424983
...
19
CHUTE.DISCHARGE.21EFF.HW HUS-582261901
...
4
T-KNOB.NEW ROPE GUIDE T, Rope Guide HUS-581912601
...
7
BOLT.CONCAVE.HEAD.RETAINING Concave Head, Retaining HUS-588040401
...
5
GUIDE.ROPE.BLK.ZINC.CHROM Rope HUS-581902101

MOWER DECK / CUTTING DECK

...
...
19
O-RING..070X.487.NEOPRENE HUS-532197480
...
9
BOLT.DOOR.PIVOT..375-16.21EFF Pivot. 3/8-16 HUS-587198901
...
27
SCREW.HI-LO. 5/16 X 1.00 Hi-Lo, 5/16 X 1.00 HUS-584299401
...
22
E-RING 7/16 RE 7/16, RE-Style HUS-812000058
...
23
WHEEL.8".AWD.3SP.EXT.DR.GREY 8 x 2, AWD HUS-580365301
...
8
BRACKET.HANDLE.ADJ.21EF.LH.498 Adjustable Handle, Left HUS-589197602
...
42
TRANSMISSION.AWD.REAR.21EFF AWD, Rear HUS-586137601
...
49
SCREW.HI-LO.5/16-14 X 4.10 Hi-Lo, 5/16-14 X 4.10 HUS-587438201
...
25
KIT.WASH-OUT.PORT Blue HUS-532421114
...
32
SCREW 1/4-20 Tri-lobe HUS-581127601
...
38
PULLEY AWD/RGD, SCREW-ON AWD/R Transmission, AWD HUS-586963002
...
65
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
3
NUT.FLANGE.SERRAT.3125-18.5625 Serrated Flange, 5/16-18 HUS-587599901
...
69
SCREW Screw HUS-581127601
...
26
KIT.HSG.21EF.AW.COMM.WO.FC.668 "21"" AWD" HUS-588610248
...
51
COVER.DR.FULL.HUSQ.21EFF.AWD Drive, AWD, Husqvarna HUS-586713701
...
14
SKIRT.REAR.21 EFF Rear HUS-586698801
...
11
BOLT.5/16HEX.WHS.HD Hex, 5/16 HUS-817000510
...
2
BRACKET.HANDLE.ADJ.21EF.RH.498 Adjustable Handle, Right HUS-589197802
...
6
NUT.FLANGED.3/8-16.ZINC Flanged, 3/8-16 HUS-532413284
...
56
ADJUSTER.4PT.21EFF.RR.HW.BK 4-Point, Right Rear HUS-582261801
...
31
PULLEY.RWD.IDLER.DBL SEAL Idler HUS-587969201
...
54
SPRING.RETURN.AUTO. Return, Rear Transmission HUS-581351301
...
45
SCREW.HWH.13-16-5.8.BZP Hi-Lo, 13-16 X.750 HUS-532194189
...
66
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
15
SCREW.HI-LO.5/16-14 X 4.10 Hi-Lo, 5/16-14 X 4.10 HUS-587438201
...
48
TRANSMISSION.AWD.FRONT.21EFF AWD, Front HUS-589486201
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT Hex Flange, 3/8-16 HUS-532409149
...
58
ADJUSTER.4PT.21EFF.RF/LR.BLK 4-Point, Right Front HUS-586920111
...
1
BOLT.HAND.PIVOT.3125-18.21EFF Handle, Pivot, 5/16-18 HUS-587015201
...
53
STRAP.PLATE ATTACH.21 EFF.GLV Height Adjuster Bracket HUS-587147301
...
28
WASHER.LOCK.INTERNAL.TOOTH Star HUS-532415585
...
35
SCREW.HWH.13-16-5.8.BZP Hi-Lo, 13-16 X.750 HUS-532194189
...
20
WASHER FLUT 1/2 X 1-1/2 X .134 HUS-532067725
...
12
PLUG.MULCH.21 EFF HUS-586922701
...
10
SCREW.HI-LO,5/16-14 X T-45 Hi-Lo, 5/16-14 X T-45 HUS-587281101
...
5
DOOR REAR, 21IN EFF BLACK MS-4 Rear HUS-586138008
...
57
ADJUSTER.4PT.21EFF.LF/RR.BLK 4-Point, Left Front HUS-586920109
...
21
PINIION.14.TOOTH.RGD 14 Tooth, AWD HUS-532404835
...
18
COVER.DUST.WHEEL.INNER.WALK Wheel HUS-581840401
...
63
PULLEY.ASM.22+ AWD HUS-587973001
...
47
SCREW.HI-LO. 5/16 X 1.00 Hi-Lo, 5/16 X 1.00 HUS-584299401
...
16
Screws 1/4-20 Tri-lobe HUS-596230901
...
55
SELECTOR KNOB Ergonomic HUS-532701037
...
62
PINION.16.TEETH.HW.AWD.REAR Rear HUS-587232401
...
17
ADJUSTER.4PT.21EFF.LR.HW.BK 4-Point, Left Rear HUS-582261802
...
43
PAWL, DRIVE Drive HUS-532404845
...
13
INSERT.REAR.21 EFF Rear HUS-586137501
...
61
COVER.DUST.WHEEL.HW.AWD.REAR Rear HUS-587251701
...
36
COVER.BELT/REAR BAFFLE.21 EFF Belt/Rear Baffle HUS-586560401
...
29
LOCKNUT.HEX.WITH.O-RING Hex HUS-532415586
...
7
SPRING.LH.DOOR.21 EFF Left, Door HUS-587249801
...
52
SCREW.HI-LO,5/16-14 X T-45 Hi-Lo, 5/16 X 1.00 HUS-587281101
...
33
BAFFLE.FRONT.21 EFF Front HUS-586698601
...
67
BUMPER.ASM.GRY.498 HUS-590559905
...
34
BOLT.5/16HEX.WHS.HD Hex, 5/16 HUS-817000510
...
40
BRACKET.TRAN.BELTKEEPER.22+RGD Rear Transmission HUS-581152502
...
41
PULLEY AWD/RGD, SCREW-ON AWD/R Transmission, AWD HUS-586963002
...
59
KIT.WASH-OUT.PORT Kit HUS-532421114
...
30
BRACKET.ASM.IDLR.AWD.21EFF.BZP Idler, AWD HUS-589291002
...
44
RING.STRIPPER.21 EFF Stripper HUS-587081001
...
60
WHEEL.11.H3SP.AWD.LC.460.BB2 "Rear, 11""" HUS-501067001
...
64
SCREW HUS-581334501
...
37
BELT.DRIVE.21EFF.AWD Drive, AWD HUS-580364609
...
4
SPRING.RH.DOOR.21 EFF Right, Door HUS-587250601
...
39
SCREW 12 X 5/8, Hi/Lo Thread HUS-532163409
...
46
BOLT SHOULDER_1/4-20_TRILOB Shoulder, 1/4-20 Tri-lobe HUS-581726101
...
68
Hardware Nut HUS-596041001
...
50
PAWL, DRIVE Drive HUS-532404845
