product name

Husqvarna L 221AHK - 96145003100 (2016-09) Walk Behind Mower

Model: L 221AHK - 96145003100 (2016-09)

Save Part Not Listed?
product name

ENGINE

...
...
7
Washers "3/8, Helical Spring" HUS-596238701
...
6
WASHER,HARDEN Hardened HUS-532851074
...
3
BOLT 3/8-16X1-1/8 "Engine, 3/8-16" HUS-532150406
...
5
BLADE.REAPER.21".W/O.NOTCH.428 High Lift HUS-586859604
...
4
ADAPTER.BLD.25M.2P.AW/RW/21EFF "25, 21"" AWD" HUS-590044201
...
1
KOHLER XTX775-3102 FOR SERVICE & PARTS 1-800-544-2444 HUS-000000000
...
xx
NEEDS DESCRIPTION HUS-114096349
...
8
BOLT.ENGINE.PULLEY "Blade, Hex Head Machine Screw" HUS-582388401
...
2
WASHER.ENGINE.BZP Engine HUS-532125078

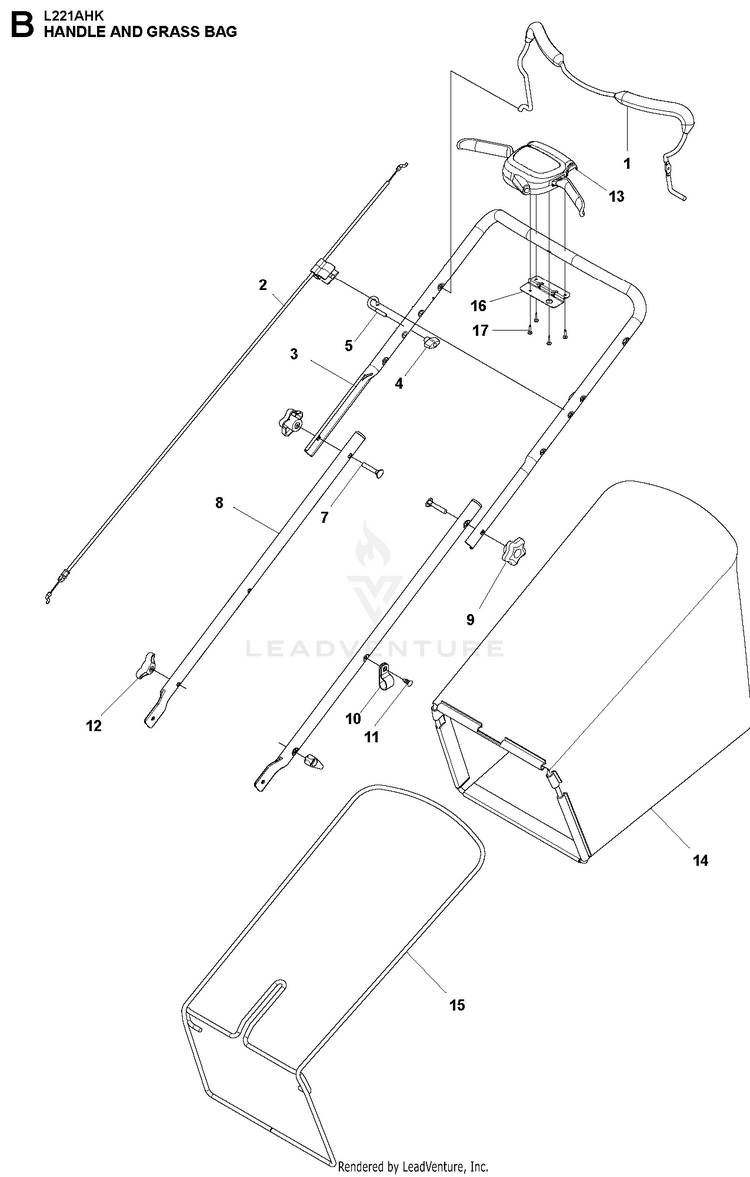

HANDLE

...
...
2
CABLE.MZR.ZONE.CONTROL Operator Presence Bail HUS-532424983
...
17
SCREW, PHILLIPS HEAD 10 X 5/8 HUS-532181698
...
10
CLIP.CABLE.BLK P/Cable HUS-532197991
...
9
KNOB.HANDLE.PLASTIC.STAR.BLACK "Handle, Star" HUS-532182398
...
1
BAIL.OM.ERGO.BENT.MZR.ORAN.668 "Straight, Overmolded, Operator Presence" HUS-587689302
...
13
CONTROL.AW2.GEN.CURVED.AW/RGD. Includes Cable HUS-589813207
...
12
HANDLE.KNOB.BLACK "Handle, STANDARD" HUS-532185577
...
3
HANDLE.UPPER.3.POS.BS.AW2.GREY "Upper, Curved" HUS-580638706
...
4
T-KNOB.NEW ROPE GUIDE "T, Rope Guide" HUS-581912601
...
16
BRACKET DUAL TRIGGER CONTROL Dual Trigger Control HUS-587249302
...
5
GUIDE.ROPE.BLK.ZINC.CHROM Rope HUS-581902101
...
7
BOLT.CONCAVE.HEAD.RETAINING "Concave Head, Retaining" HUS-588040401
...
14
GBAG.C3610010.GENERIC "Husqvarna 21"" AWD" HUS-587100402
...
8
HANDLEBAR ASSY TWO PIECE LOWER INCLUDES PLUG HUS-593270401
...
11
FASTENER.PUSH.O.250X0.783 "Push, 0.250 X 0.783" HUS-532428124
...
15
FRAME.GBAG.AWD.21.BLACK HUS-586929102

MOWER DECK / CUTTING DECK

...
...
42
TRANSMISSION.AWD.REAR.21EFF "AWD, Rear" HUS-586137601
...
8
BRACKET.HANDLE.ADJ.21EF.LH.498 "Adjustable Handle, Left" HUS-589197602
...
19
O-RING..070X.487.NEOPRENE HUS-532197480
...
9
BOLT.DOOR.PIVOT..375-16.21EFF "Door, Pivot. 3/8-16" HUS-587198901
...
65
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
47
SCREW.HI-LO. 5/16 X 1.00 "Hi-Lo, 5/16 X 1.00" HUS-584299401
...
46
BOLT SHOULDER_1/4-20_TRILOB "Shoulder, 1/4-20 Tri-lobe" HUS-581726101
...
58
KIT.WASH-OUT.PORT Kit HUS-532421114
...
2
BRACKET.HANDLE.ADJ.21EF.RH.498 "Adjustable Handle, Right" HUS-589197802
...
45
SCREW.HWH.13-16-5.8.BZP "Hi-Lo, 13-16 X.750" HUS-532194189
...
64
COVER.DUST.WHEEL.HW.AWD.REAR "Wheel, Rear" HUS-587251701
...
38
PULLEY.RWD.IDLER.DBL SEAL "Transmission, AWD" HUS-587969201
...
32
SCREW 1/4-20 Tri-lobe HUS-581127601
...
36
COVER.BELT/REAR BAFFLE.21 EFF Belt/Rear Baffle HUS-586560401
...
55
ADJUSTER.4PT.21EFF.RR.HW.BK "4-Point, Right Rear" HUS-582261801
...
61
PULLEY.ASM.22+ AWD HUS-587973001
...
54
SELECTOR KNOB Ergonomic HUS-532701037
...
13
INSERT.REAR.21 EFF Rear HUS-586137501
...
66
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
31
PULLEY.RWD.IDLER.DBL SEAL Idler HUS-587969201
...
28
WASHER.LOCK.INTERNAL.TOOTH Star HUS-532415585
...
44
RING.STRIPPER.21 EFF Stripper HUS-587081001
...
43
PAWL, DRIVE Drive HUS-532404845
...
53
SPRING.RETURN.AUTO. "Return, Rear Transmission" HUS-581351301
...
52
STRAP.PLATE ATTACH.21 EFF.GLV Height Adjuster Bracket HUS-587147301
...
3
NUT.FLANGE.SERRAT.3125-18.5625 "Serrated Flange, 5/16-18" HUS-587599901
...
50
PAWL, DRIVE Drive HUS-532404845
...
26
KIT.HSG.21EFF.AWD.WO.668.CE SY "21"" AWD" HUS-501457801
...
7
SPRING.LH.DOOR.21 EFF "Left, Door" HUS-587249801
...
48
TRANSMISSION.AWD.FRONT.21EFF "AWD, Front" HUS-589486201
...
37
BELT.DRIVE.21EFF.AWD "Drive, AWD" HUS-580364609
...
51
COVER.DR.FULL.HUSQ.21EFF.AWD "Drive, AWD, Husqvarna " HUS-586713701
...
33
BAFFLE.FRONT.21 EFF Front HUS-586698601
...
30
BRACKET.ASM.IDLR.AWD.21EFF.BZP "Idler, AWD" HUS-589291002
...
39
SCREW "12 X 5/8, Hi/Lo Thread" HUS-532163409
...
35
SCREW.HWH.13-16-5.8.BZP "Hi-Lo, 13-16 X.750" HUS-532194189
...
18
COVER.DUST.WHEEL.INNER.WALK "Wheel, Front" HUS-581840401
...
24
NUT.HEX.FLANGE.3/8-16.LOCKNUT "Hex Flange, 3/8-16" HUS-532409149
...
10
SCREW.HI-LO,5/16-14 X T-45 "Hi-Lo, 5/16-14 X T-45" HUS-587281101
...
22
E-RING 7/16 RE "7/16, RE-Style" HUS-812000058
...
21
PINIION.14.TOOTH.RGD "14 Tooth, AWD" HUS-532404835
...
4
SPRING.RH.DOOR.21 EFF "Right, Door" HUS-587250601
...
6
NUT.FLANGED.3/8-16.ZINC "Flanged, 3/8-16" HUS-532413284
...
17
ADJUSTER.4PT.21EFF.LR.HW.BK "4-Point, Left Rear" HUS-582261802
...
1
BOLT.HAND.PIVOT.3125-18.21EFF "Handle, Pivot, 5/16-18" HUS-587015201
...
15
SCREW.HI-LO.5/16-14 X 4.10 "Hi-Lo, 5/16-14 X 4.10" HUS-587438201
...
49
SCREW.HI-LO.5/16-14 X 4.10 "Hi-Lo, 5/16-14 X 4.10" HUS-587438201
...
56
ADJUSTER.4PT.21EFF.LF/RR.BLK "4-Point, Left Front" HUS-586920109
...
20
WASHER FLUT 1/2 X 1-1/2 X .134 HUS-532067725
...
14
SKIRT.REAR.21 EFF Rear HUS-586698801
...
59
WHEEL.8".AWD.3SP.EXT.DR.GREY 8 X 2 HUS-580365301
...
60
PINION.16.TEETH.HW.AWD.REAR "16 tooth, HW" HUS-587232401
...
29
LOCKNUT.HEX.WITH.O-RING Hex HUS-532415586
...
23
WHEEL.11.H3SP.AWD.LC.460.BB2 "11"", AWD" HUS-501067001
...
57
ADJUSTER.4PT.21EFF.RF/LR.BLK "4-Point, Right Front" HUS-586920111
...
12
PLUG.MULCH.21 EFF HUS-586922701
...
41
PULLEY AWD/RGD, SCREW-ON AWD/R "Transmission, AWD" HUS-586963002
...
34
BOLT.5/16HEX.WHS.HD "Hex, 5/16" HUS-817000510
...
25
KIT.WASH-OUT.PORT Blue HUS-532421114
...
40
BRACKET.TRAN.BELTKEEPER.22+RGD Rear Transmission HUS-581152502
...
5
DOOR REAR, 21IN EFF BLACK MS-4 Rear HUS-586138008
...
16
SCREW 1/4-20 Tri-lobe HUS-581127601
...
62
SCREW HUS-581334501
...
63
CHUTE.DISCHARGE.21EFF.HW HUS-582261901
...
11
BOLT.5/16HEX.WHS.HD "Hex, 5/16" HUS-817000510
...
27
SCREW.HI-LO. 5/16 X 1.00 "Hi-Lo, 5/16 X 1.00" HUS-584299401
