product name

Husqvarna KV 960 Trolley (2008-01) Power Cutter Accessory

Model: KV 960 Trolley (2008-01)

Save Part Not Listed?
product name

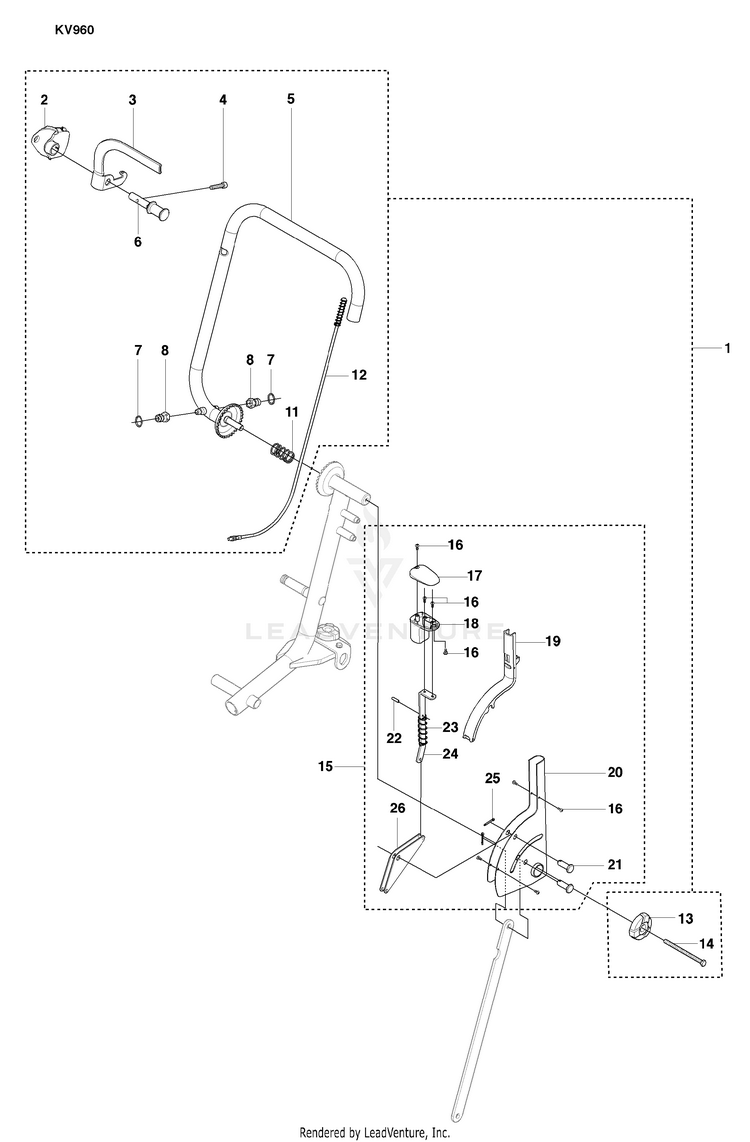

Handlebar Assembly and Throttle Handle Assembly and Depth Control

...
...
1
HANDLEBAR ASSY Incl. 2 - 14 HUS-544953504
...
2
COVER HUS-544919701
...
3
THROTTLE HANDLE ASSY HUS-544953701
...
4
SCREW HUS-725545901
...
5
HANDLE HUS-544953601
...
6
SHAFT HUS-544921101
...
7
O-RING HUS-502465101
...
8
CONNECTOR HUS-506308701
...
9
WASHER HUS-543850093
...
10
HOLDER HUS-544981701
...
11
SPRING THROTTLE CONTROL HUS-544981601
...
12
WIRE ASSY HUS-544981801
...
13
TURNING KNOB HUS-504569301
...
14
SCREW HUS-725247551
...
15
LEVER Incl. 16 - 26 HUS-544956902
...
16
SCREW HUS-729534201
...
17
KNOB HUS-544915301
...
18
KNOB HUS-544915401
...
19
COVER HUS-544915501
...
20
LEVER HUS-544957001
...
21
CLEVIS PIN 12X35X3.2 ISO 2341 HUS-721851401
...
22
PIN HUS-721430801
...
23
SPRING HUS-544982501
...
24
ROD HUS-544957101
...
25
LOCKING PIN. 3.2X22 ISO 1234 HUS-721618201
...
26
PLATE HUS-502304201

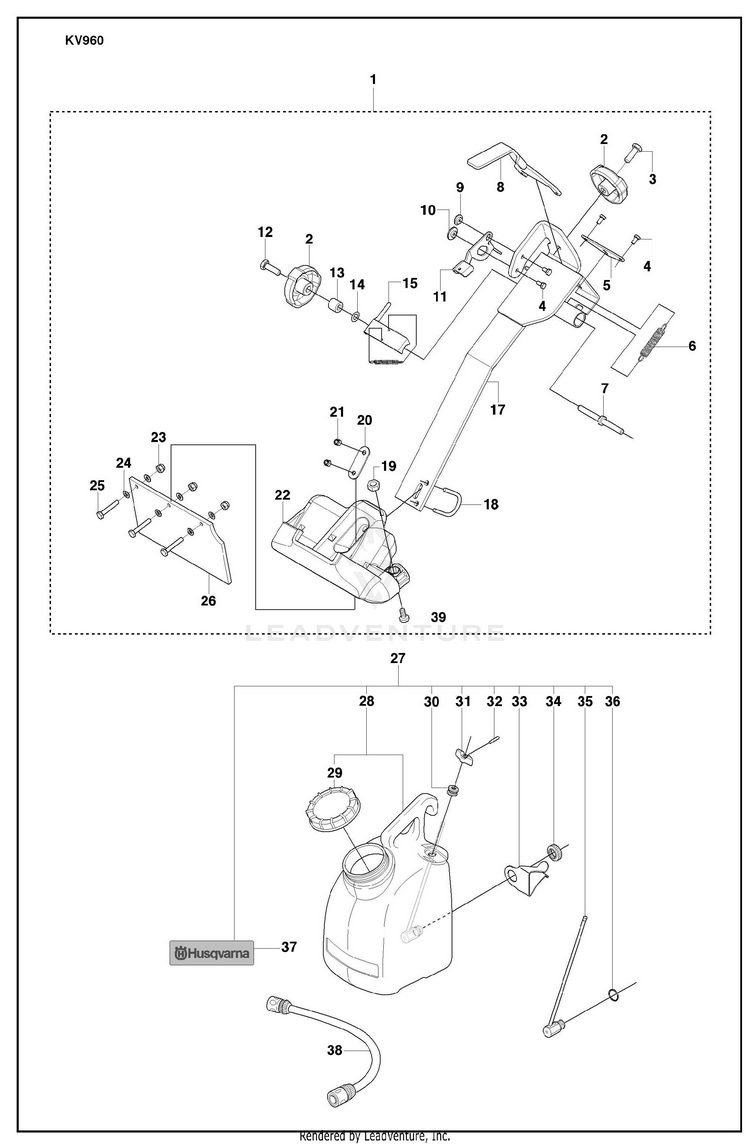

Holder Assembly and Water Tank Assembly

...
...
1
HOLDER ASSY Incl. 2 - 26 HUS-504735402
...
2
TURNING KNOB HUS-504569301
...
3
SCREW HUS-505451401
...
4
SCREW HUS-725232571
...
5
LOCKING PLATE HUS-504727601
...
6
SPRING HUS-504735701
...
7
SHAFT HUS-501020201
...
8
LOCKING LEVER HUS-504727501
...
9
SHAFT HUS-504728701
...
10
SHAFT HUS-504728501
...
11
LEVER HUS-504728301
...
12
NUT HUS-544982701
...
13
SPACING SLEEVE HUS-544925501
...
14
CUP SPRING HUS-737381401
...
15
POINTER HUS-504728901
...
16
SPRING HUS-505456001
...
17
HOLDER HUS-504726801
...
18
SHACKLE HUS-544962901
...
19
NUT HUS-731231801
...
20
SHEET HUS-504729201
...
21
LOCK NUT HUS-732251401
...
22
HOLDER HUS-504729101
...
23
NUT FLANGE - M6 HUS-732251601
...
24
WASHER - M6 HUS-734115201
...
25
SCREW HUS-725237671
...
26
FENDER HUS-504729401
...
27
WATER TANK Incl. 28, 30 - 37 HUS-502621602
...
28
WATER TANK Incl. 29 HUS-505174901
...
29
CAP HUS-541208284
...
30
ANTIVIBE ELEMENT HUS-504125017
...
31
KNOB HUS-506309401
...
32
SPRING PIN HUS-721425626
...
33
HOLDER HUS-505450901
...
34
NUT HUS-506309201
...
35
VALVE HUS-506314101
...
36
O-RING HUS-740481204
...
37
STICKER HUS-504545801
...
38
HOSE HUS-506314202
...
39
SCREW HUS-725245771

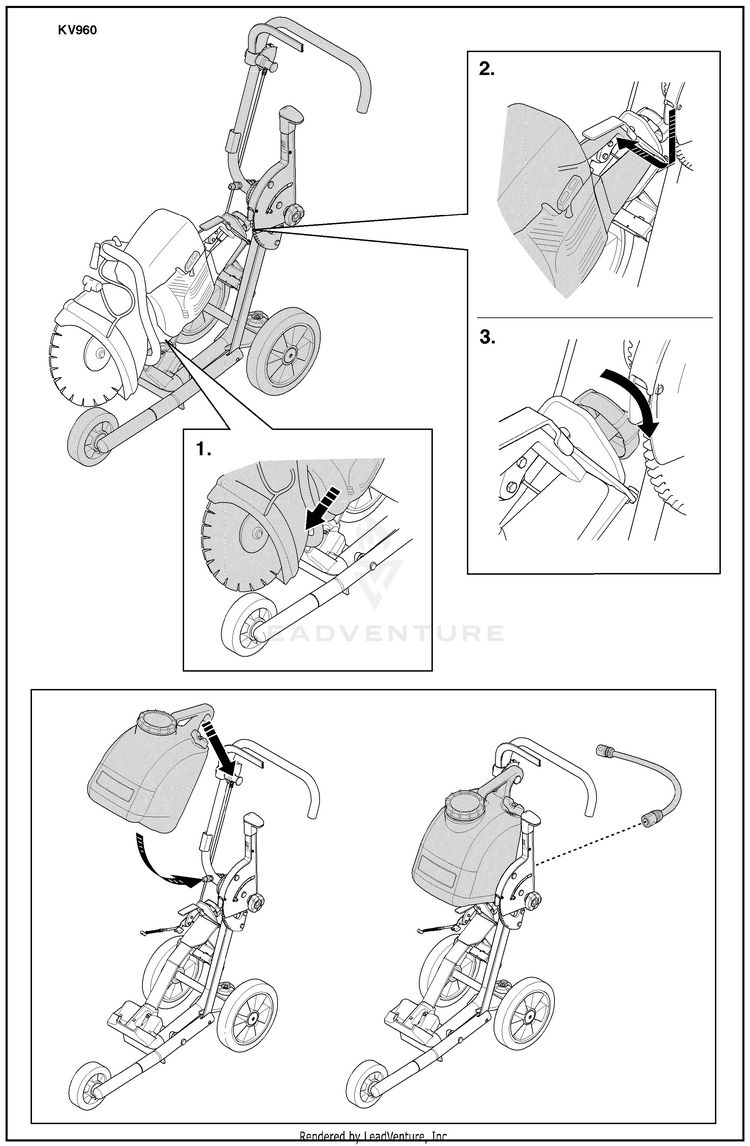

Mounting Instructions

...

No Parts Available for this Schematic

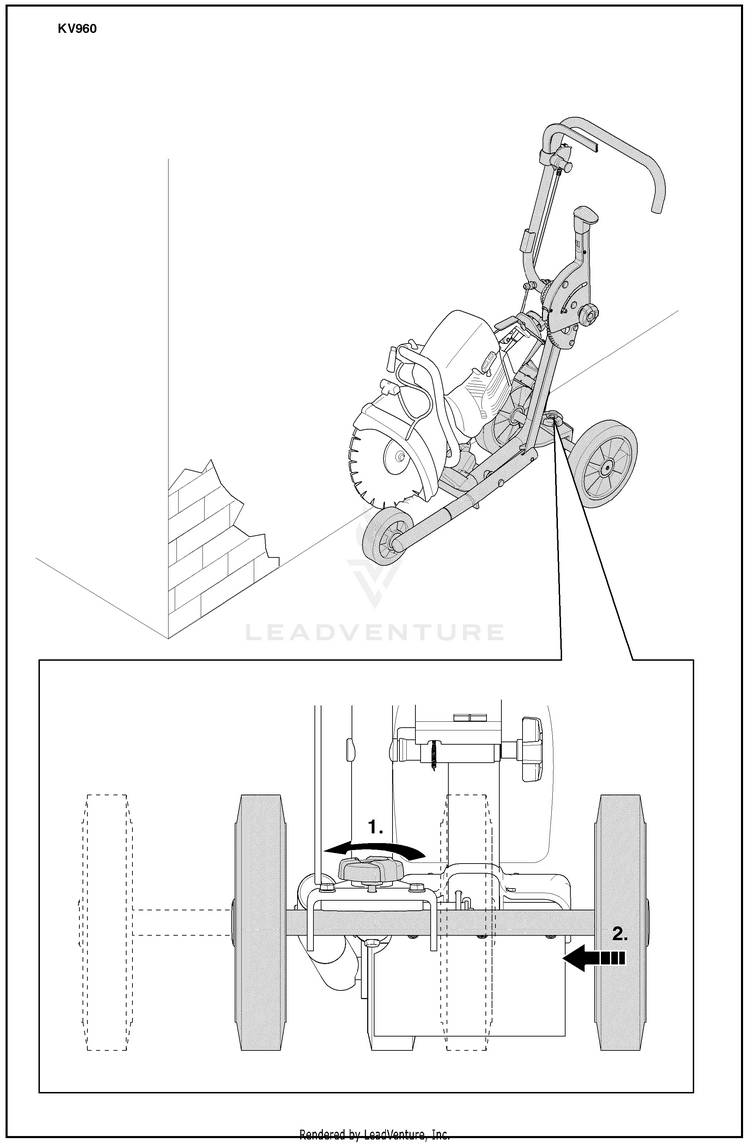

Wheel Adjustment

...

No Parts Available for this Schematic

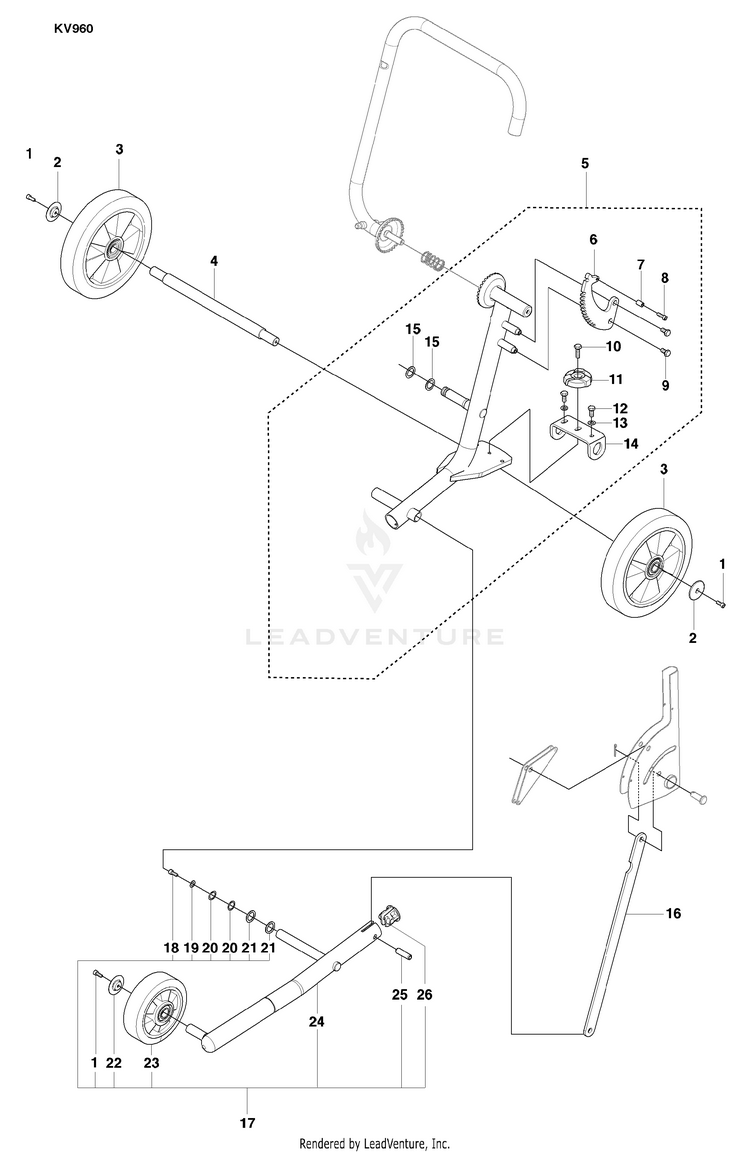

Wheels and Frame Tube

...
...
1
SCREW HUS-725536801
...
2
WASHER BACK WHEEL SHAFT HUS-501321201
...
3
WHEEL HUS-590726701
...
4
SHAFT HUS-544919401
...
5
FRAME Incl. 6 - 15 HUS-504735302
...
6
SHEET HUS-544919901
...
7
SPACING SLEEVE HUS-544962601
...
8
SCREW MC6S 6X20 HUS-725537055
...
9
BOLT - M8X16 HUS-725244951
...
10
SCREW HUS-505456101
...
11
TURNING KNOB HUS-504569301
...
12
SCREW HUS-725245171
...
13
WASHER - 25X8.5X2.3 HUS-734116541
...
14
BRACKET BACK WHEEL SHAFT HUS-501321301
...
15
O-RING HUS-502465101
...
16
ROD HUS-544923902
...
17
FRAME TUBE Incl. 1, 18 - 26 HUS-506497002
...
18
BOLT - M8X16 HUS-725244951
...
19
WASHER HUS-504581101
...
20
O-RING HUS-501019601
...
21
CUP SPRING HUS-504581001
...
22
PLATE HUS-506497301
...
23
WHEEL 160/50-140 HUS-593959001
...
24
FRAME TUBE HUS-506497501
...
25
SPRING PIN HUS-501019801
...
26
COVER LID HUS-544922701
