Husqvarna KV 750 Trolley (2007-06) Power Cutter

Model: KV 750 Trolley (2007-06)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

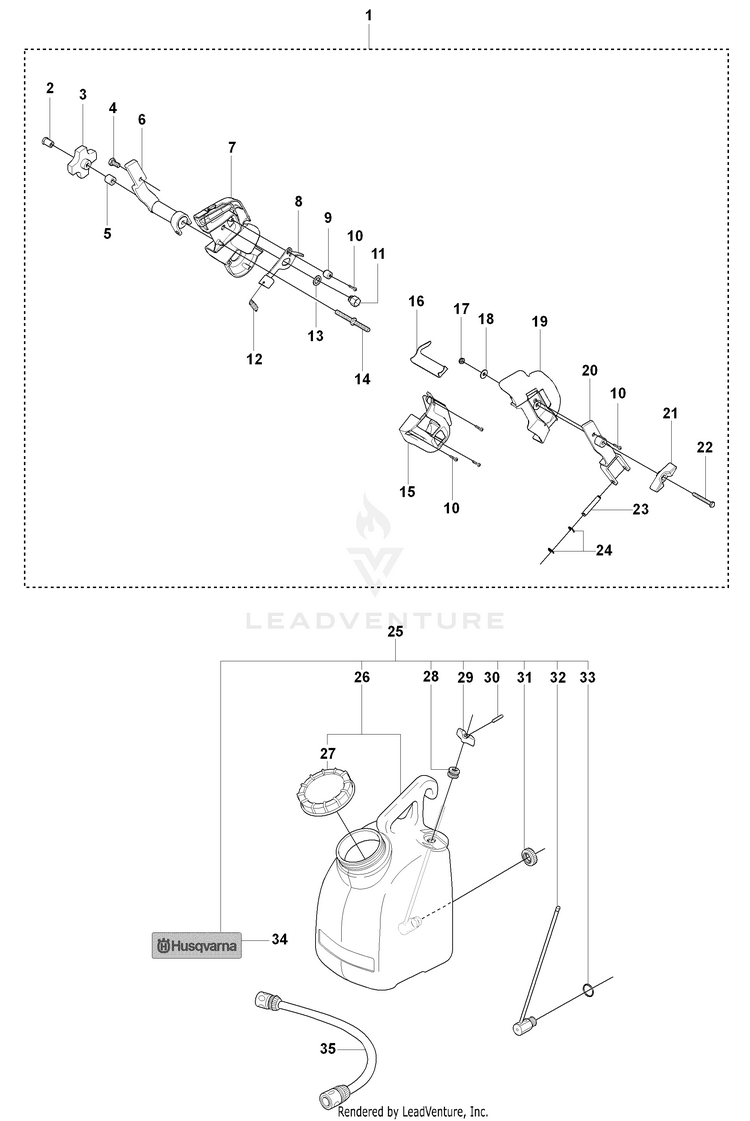

Holder Assy And Water Tank

...
...
1
HOLDER ASSY Incl. 2 - 23 HUS-544957301
...
2
NUT HUS-544982701
...
3
KNOB HUS-501020001
...
4
BOLT - M8X16 HUS-725244951
...
5
SPACING SLEEVE HUS-544925501
...
6
HOLDER HUS-544957401
...
7
HOLDER HUS-544914401
...
8
LEVER HUS-544925701
...
9
SHAFT HUS-544925801
...
10
SCREW HUS-502465201
...
11
NUT HUS-544925601
...
12
SPRING HUS-544982801
...
13
WASHER HUS-501018001
...
14
SHAFT HUS-501020201
...
15
HOLDER HUS-544914701
...
16
SHEET HUS-544925901
...
17
NUT FLANGE - M6 HUS-732251601
...
18
WASHER HUS-734115441
...
19
HOLDER HUS-544914501
...
20
HOLDER HUS-544957501
...
21
PACKING HUS-544980101
...
22
SCREW M6X50 HUS-725238051
...
23
SHAFT HUS-544924701
...
24
O-RING HUS-735311001
...
25
WATER TANK Incl. 25, 27 - 33 HUS-506295512
...
26
TANK Incl. 26 HUS-506308401
...
27
TANK CAP HUS-506308501
...
28
ANTIVIBE ELEMENT HUS-504125017
...
29
KNOB HUS-506309401
...
30
PIN HUS-720127152
...
31
NUT HUS-506309201
...
32
VALVE HUS-506314101
...
33
O-RING HUS-740481204
...
34
LABEL HUS-506302002
...
35
HOSE HUS-506314202
Schematic Image Zoomed
