Husqvarna KV 750 Trolley (2007-06) Power Cutter

Model: KV 750 Trolley (2007-06)

Back To Assemblies

Save Part Not Listed?
product name

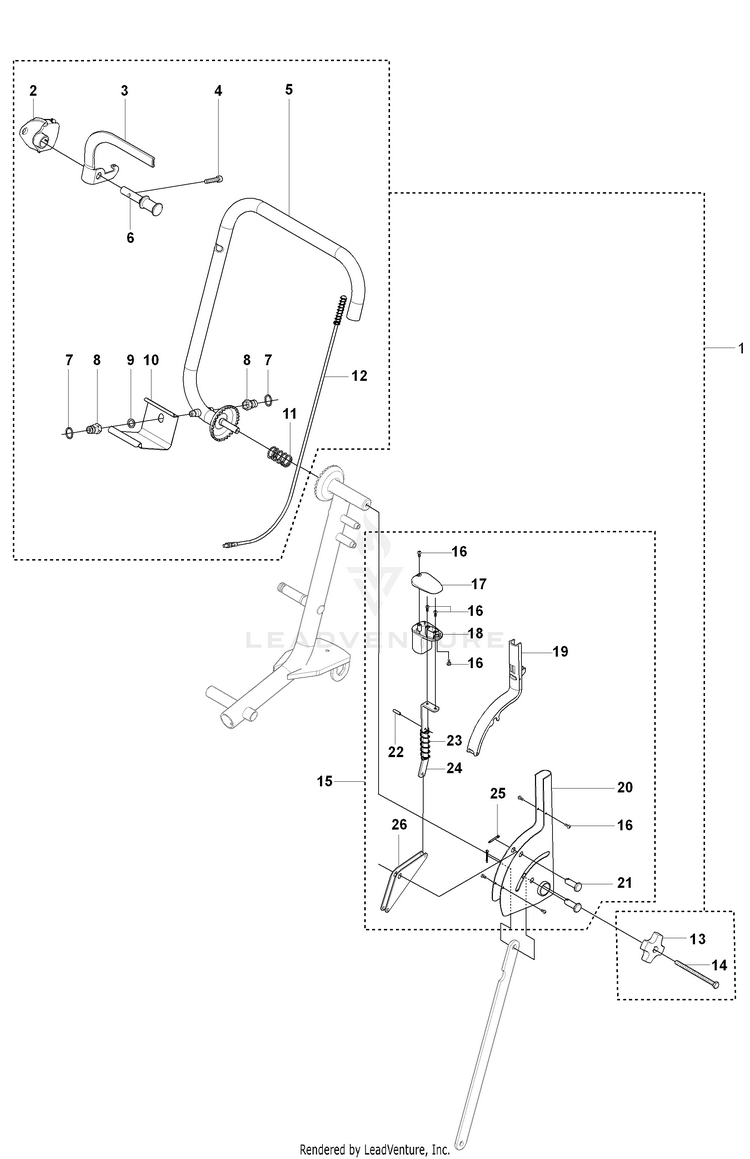

Handlebar Assy And Throttle Handle Assy And Wire Assy

...
...
1
HANDLEBAR ASSY Incl. 2 - 14 HUS-544953501
...
2
COVER HUS-544919701
...
3
THROTTLE HANDLE ASSY HUS-544953701
...
4
SCREW HUS-725545901
...
5
HANDLE HUS-544953601
...
6
SHAFT HUS-544921101
...
7
O-RING HUS-502465101
...
8
CONNECTOR HUS-506308701
...
9
WASHER HUS-543850093
...
10
HOLDER HUS-544981701
...
11
SPRING THROTTLE CONTROL HUS-544981601
...
12
WIRE ASSY HUS-544981801
...
13
KNOB HUS-501020001
...
14
SCREW HUS-725247551
...
15
LEVER Incl. 16 - 26 HUS-544956901
...
16
SCREW CROSS-SLOTTED HUS-729534201
...
17
KNOB HUS-544915301
...
18
KNOB HUS-544915401
...
19
COVER HUS-544915501
...
20
LEVER HUS-544957001
...
21
CLEVIS PIN 12X35X3.2 ISO 2341 HUS-721851401
...
22
PIN SPRING HUS-721430801
...
23
SPRING HUS-544982501
...
24
ROD HUS-544957101
...
25
LOCKING PIN. 3.2X22 ISO 1234 HUS-721618201
...
26
PLATE HUS-502304201
