Husqvarna KV 03 Trolley Cart (2000-03) Power Cutter

Model: KV 03 Trolley Cart (2000-03)

Back To Assemblies

Save Part Not Listed?
product name

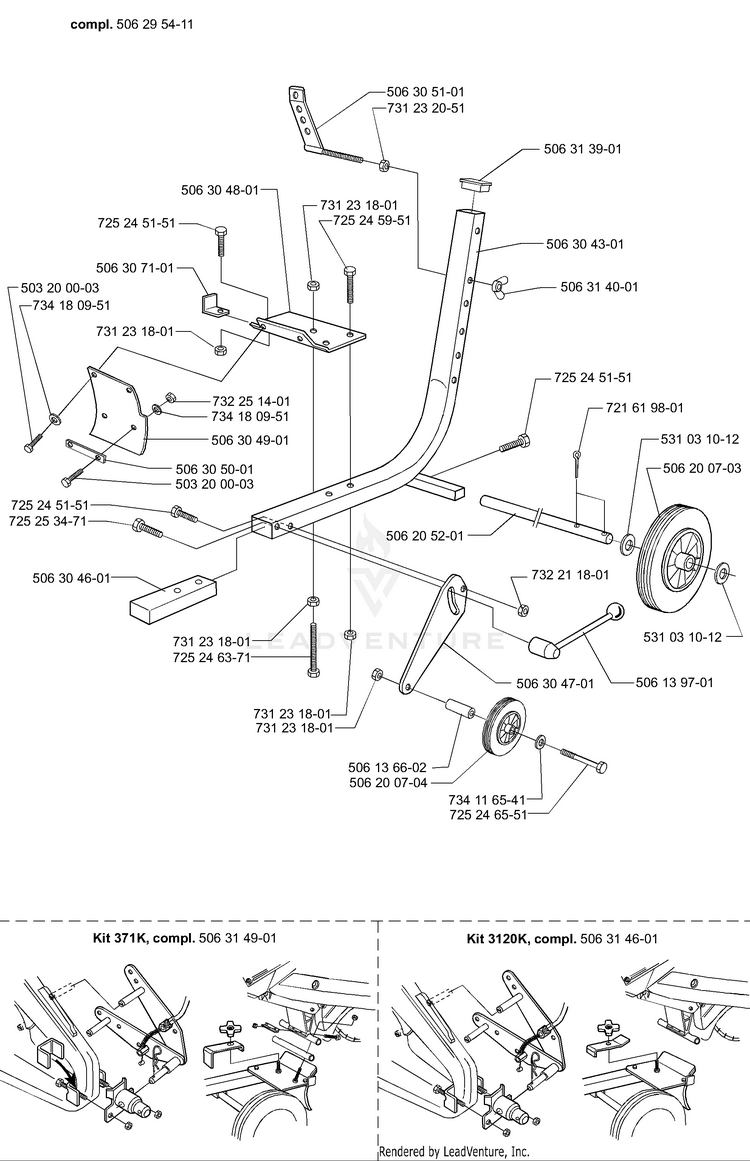

Main Frame & Wheel

...
...
506295411
CUTTING TROLLEY HUS-506295404
...
506304801
BRACKET HUS-506304801
...
725245151
SCREW 8X20 HUS-725245151
...
506305101
HUS-506305101
...
731232051
Nut HUS-731232001
...
731231801
NUT HUS-731231801
...
725245951
SCREW HUS-725245951
...
506313901
Plug HUS-506313901
...
506304301
FRAME HUS-506304301
...
506314001
HUS-506314001
...
725245151
SCREW 8X20 HUS-725245151
...
721619801
SPLIT PIN HUS-721619801
...
531031012
WASHER HUS-531031012
...
506200703
WHEEL HUS-506200703
...
531031012
WASHER HUS-531031012
...
506139701
Lock Handle HUS-506139701
...
506304701
ARM HUS-506304701
...
732211801
LOCKNUT M8 HUS-732211801
...
725246551
SCREW M8 X 70 HUS-725246551
...
734116541
WASHER - 25X8.5X2.3 HUS-734116541
...
506200704
WHEEL HUS-506200704
...
506136602
SPACING SLEEVE HUS-506136602
...
731231801
NUT HUS-731231801
...
731231801
NUT HUS-731231801
...
725246371
HUS-725246371
...
731231801
NUT HUS-731231801
...
506205201
Shaft HUS-506205201
...
732251401
NUT HUS-732251401
...
734180951
WASHER HUS-734180951
...
506304901
HUS-506304901
...
506305001
HUS-506305001
...
503200003
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208
...
506307101
HUS-506307101
...
503200003
SCREW ISO 4014 M6X12 8.8 ZPB HUS-531119208
...
734180951
WASHER HUS-734180951
...
731231801
NUT HUS-731231801
...
725253471
HUS-725253471
...
725245151
SCREW 8X20 HUS-725245151
...
506304601
COUNTERWEIGHT HUS-506304601
...
506314901
HUS-506314901
...
506314601
Bracket HUS-506314601
