Husqvarna KV 03 TROLLEY (2007-07) Power Cutter

Model: KV 03 TROLLEY (2007-07)

Back To Assemblies

Save Part Not Listed?
product name

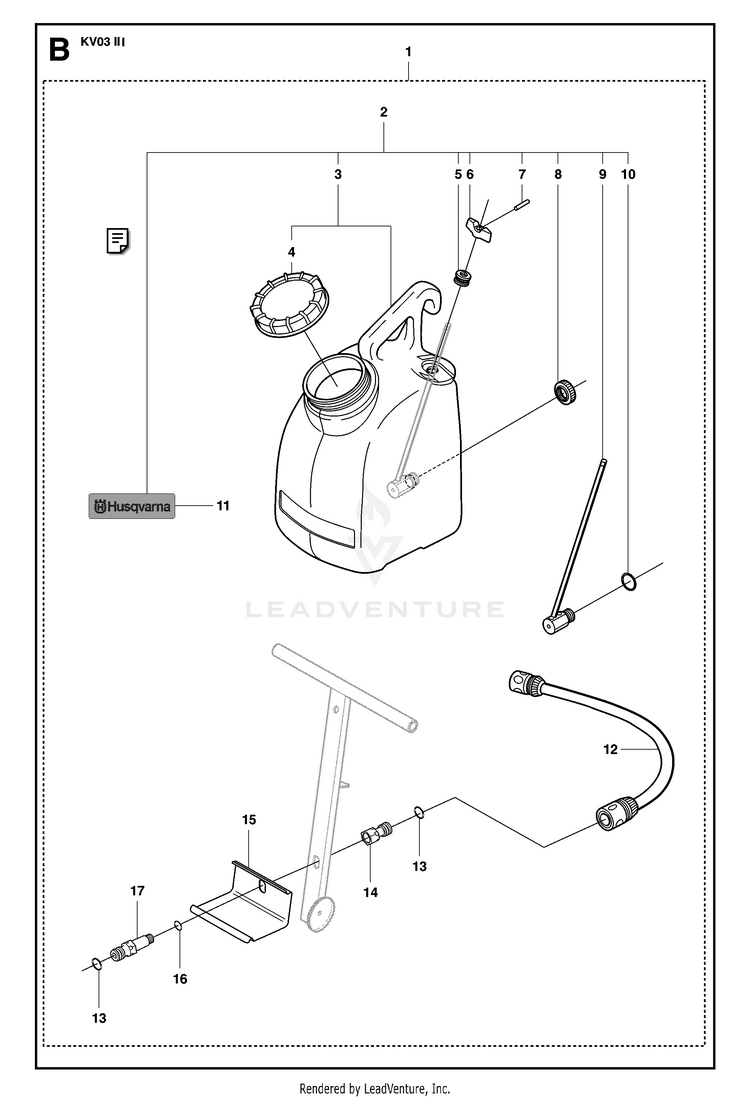

WATER TANK

...
...
16
O-RING HUS-740420900
...
11
Decal HUS-506302002
...
13
O-RING HUS-740480303
...
1
WATER TANK CPL. HUS-504143001
...
2
WATER TANK HUS-506295512
...
17
ADAPTER HUS-506308801
...
10
O-RING HUS-740481204
...
4
TANK CAP HUS-506308501
...
9
VALVE HUS-506314101
...
8
NUT HUS-506309201
...
3
TANK HUS-506308401
...
12
HOSE HUS-506314202
...
15
BRACKET HUS-506308601
...
5
ANTIVIBE ELEMENT HUS-504125017
...
6
Wingnut HUS-506309401
...
7
Pin HUS-720127152
...
14
CONNECTOR HUS-506308701
